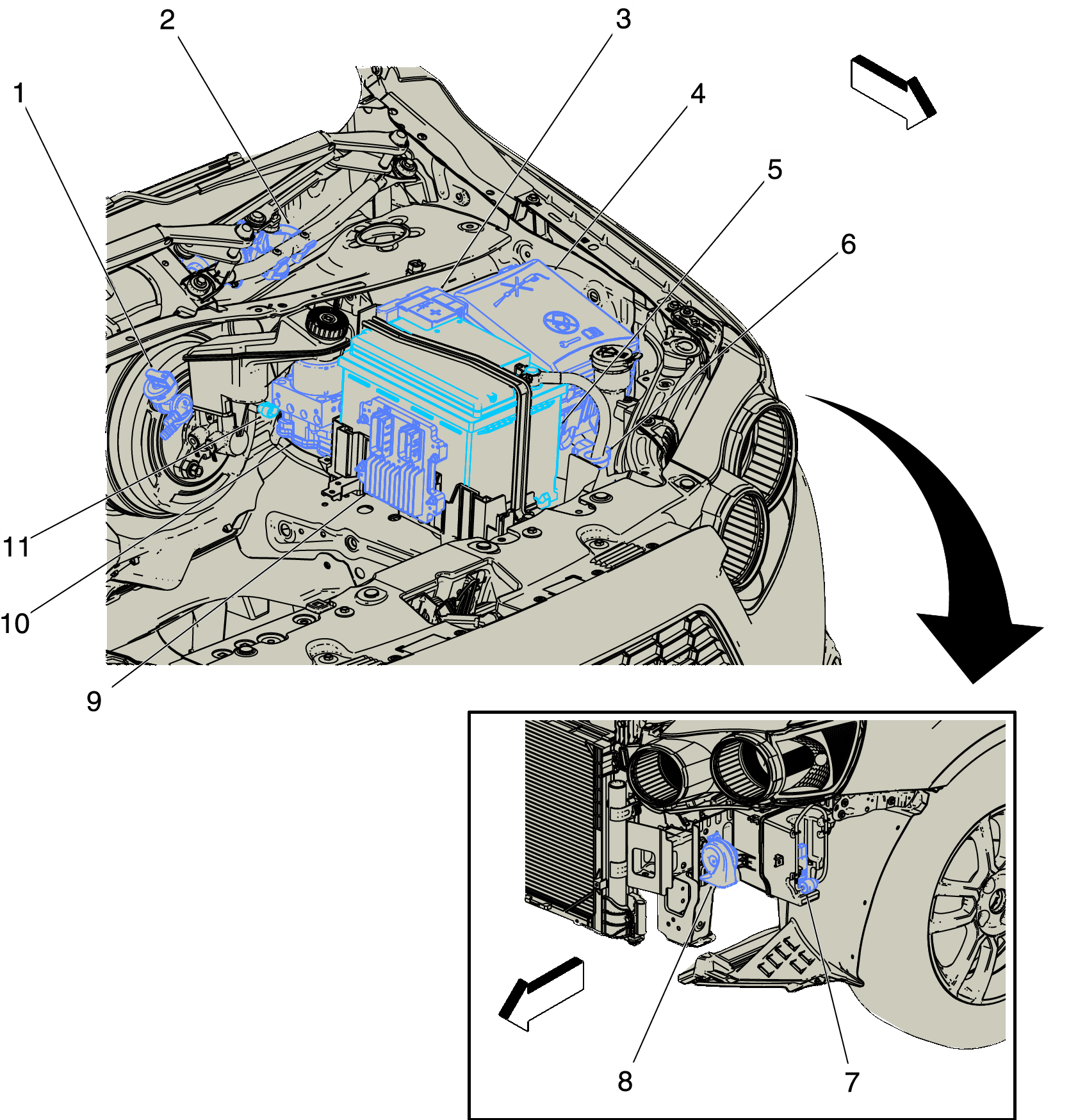

Left of Engine Compartment Components

GM4787864Courtesy of GENERAL MOTORS COMPANY
Left of Engine Compartment Components

Items
1. B19C Brake Booster Vacuum Switch B19C Brake Booster Vacuum Switch
2. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3. X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4
4. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2 ()X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4
5. C1 Battery C1 Battery
6. B18 Battery Current Sensor B18 Battery Current Sensor
7. G24 Windshield Washer Pump G24 Windshield Washer Pump
8. P12 Horn P12 Horn ((MAH/MBC))
9. K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3
10. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
11. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
