Installation Procedure

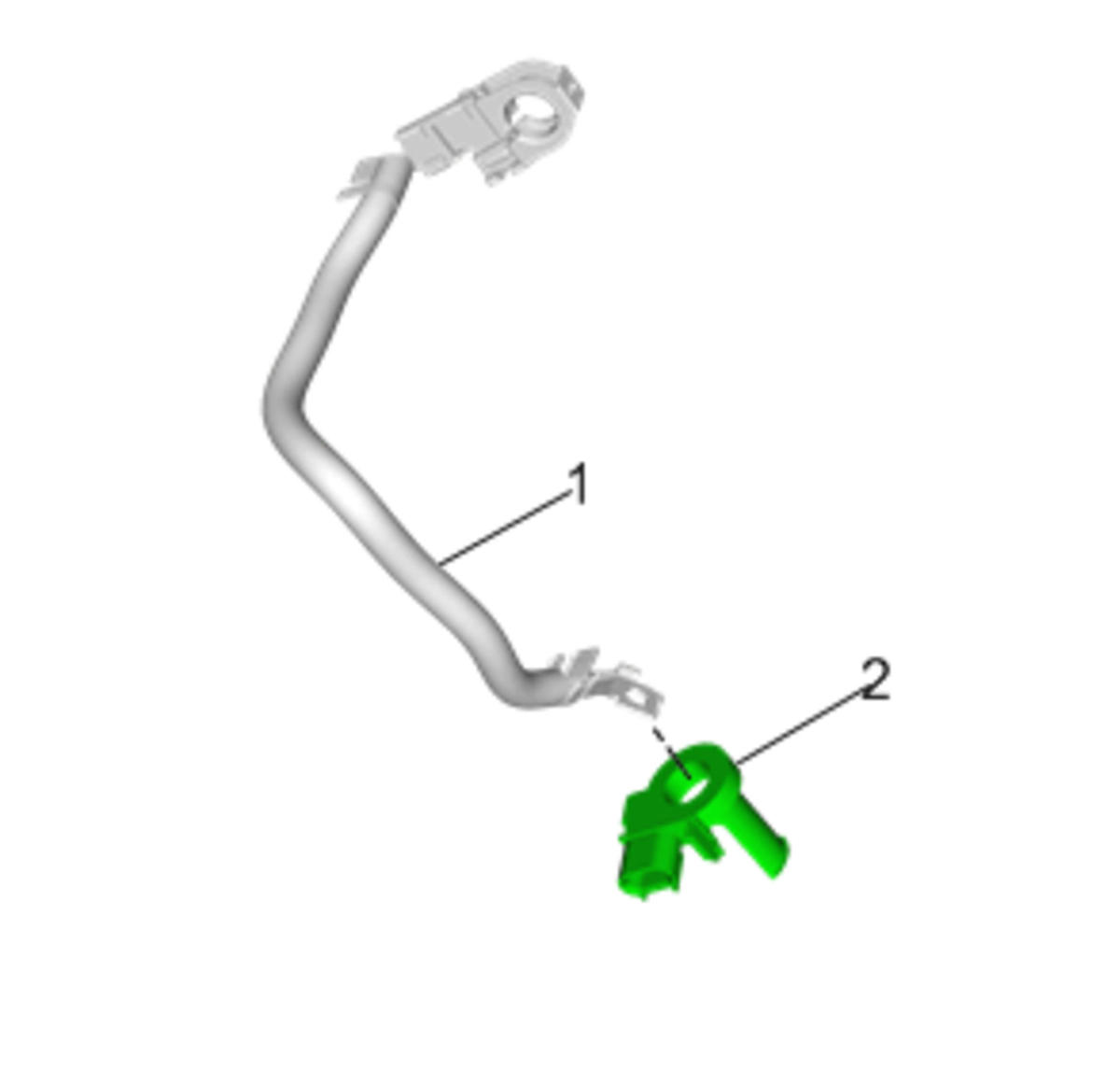

  1. GM4009329Courtesy of GENERAL MOTORS COMPANY

    Install the battery current sensor (2) onto the battery negative cable (1) as shown.

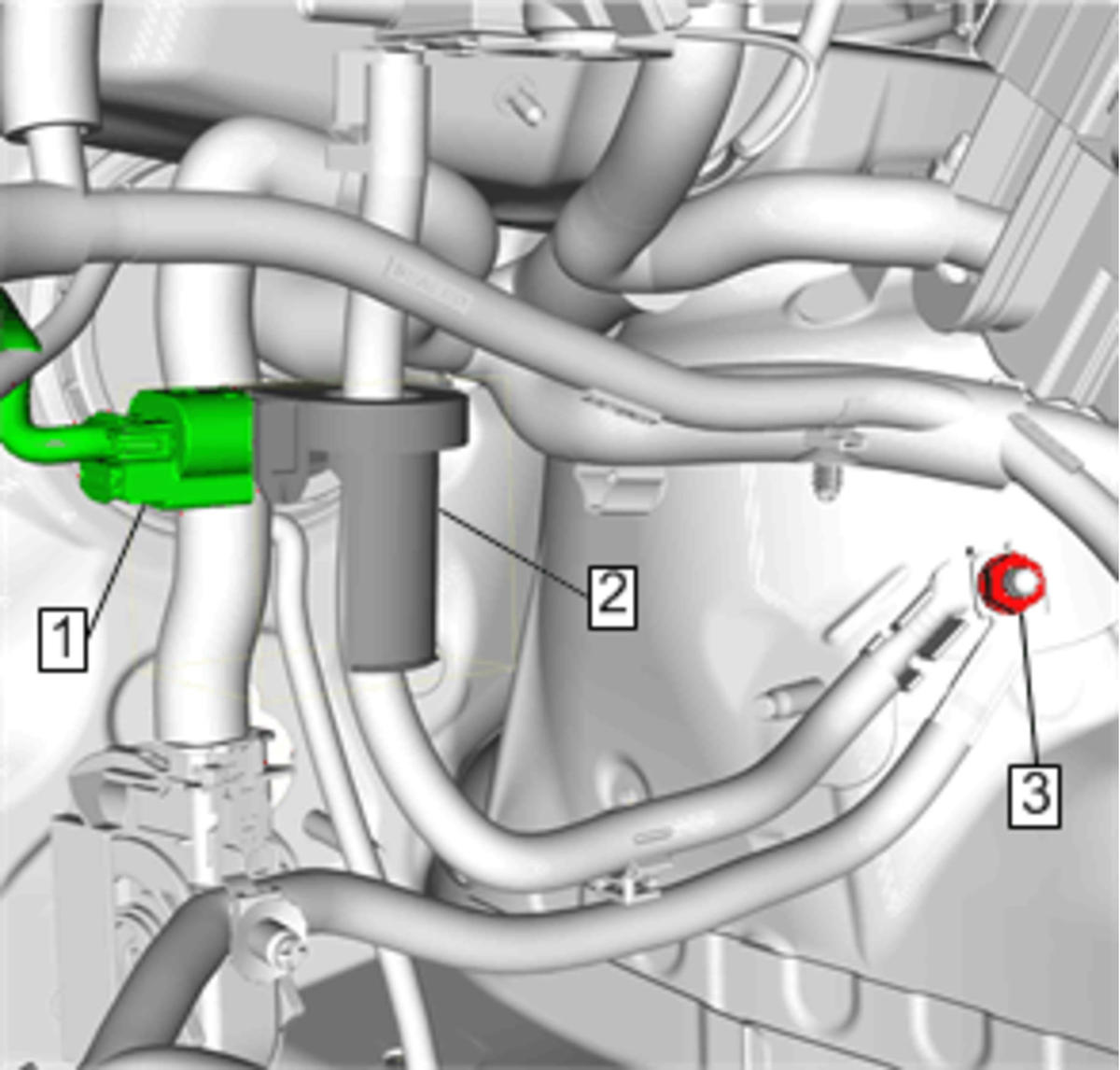

  2. GM4009328Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the battery negative cable to the frame rail and tighten the battery negative and positive cable ground nut (3) to 22 N.m (16 lb ft).

  3. Connect the body harness connector (1) to the battery current sensor (2).
  4. Install the battery. Refer to Battery Replacement .
