Transmission Components (MR8)

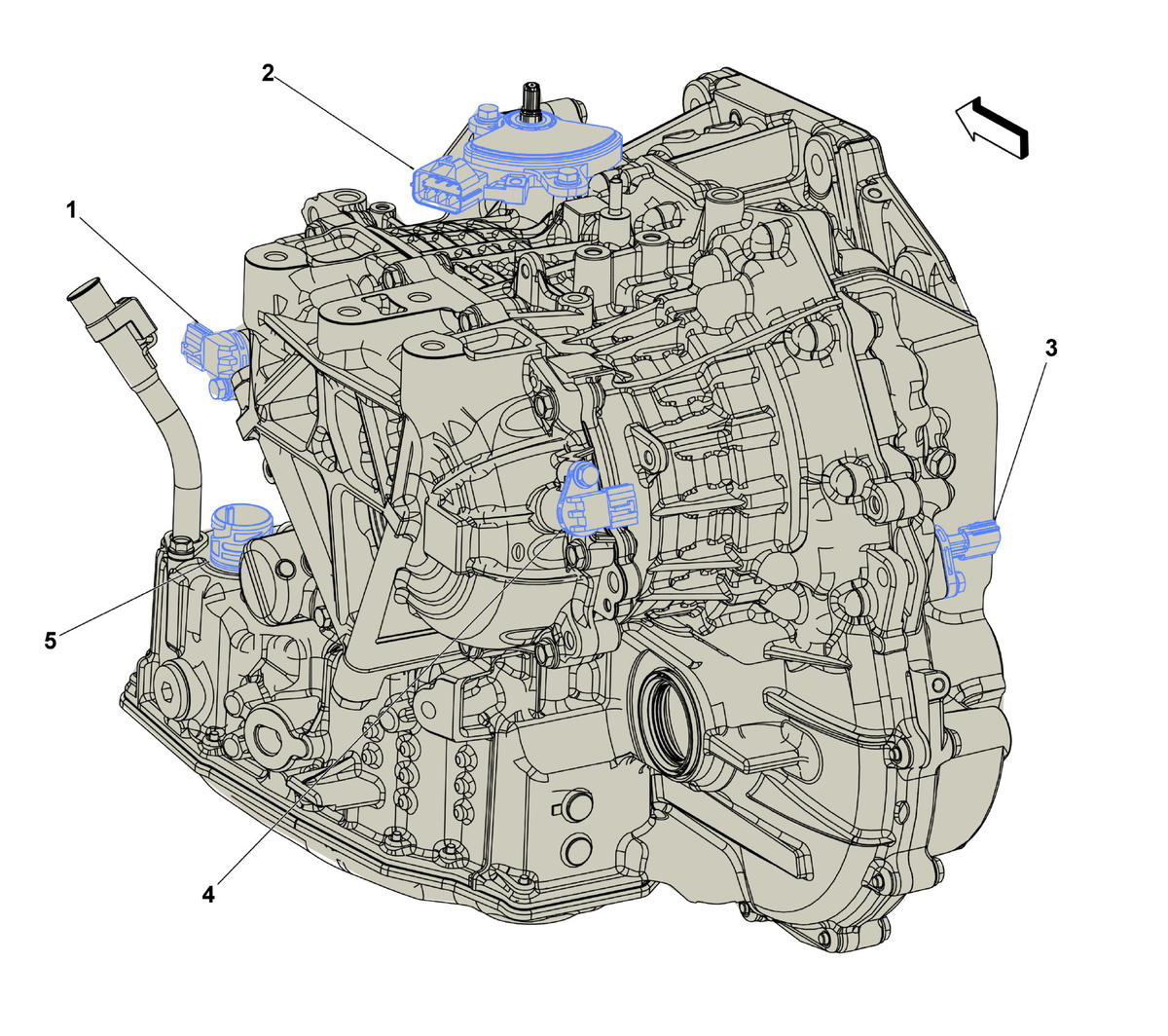

GM4873505Courtesy of GENERAL MOTORS COMPANY
Transmission Components (MR8)

Items
1. B296A Transmission Pulley Speed Sensor - Primary (MR8) B296A Transmission Pulley Speed Sensor - Primary (MR8)
2. B81 Park/Neutral Position Switch B81 Park/Neutral Position Switch (MR8)
3. B14A Transmission Output Shaft Speed Sensor (MR8) B14A Transmission Output Shaft Speed Sensor
4. B296B Transmission Pulley Speed Sensor - Secondary (MR8) B296B Transmission Pulley Speed Sensor - Secondary (MR8)
5. Q8 Control Solenoid Valve Assembly (MR8) Q8 Control Solenoid Valve Assembly
