Battery Positive Cable Junction Block Replacement

Courtesy of GENERAL MOTORS COMPANY

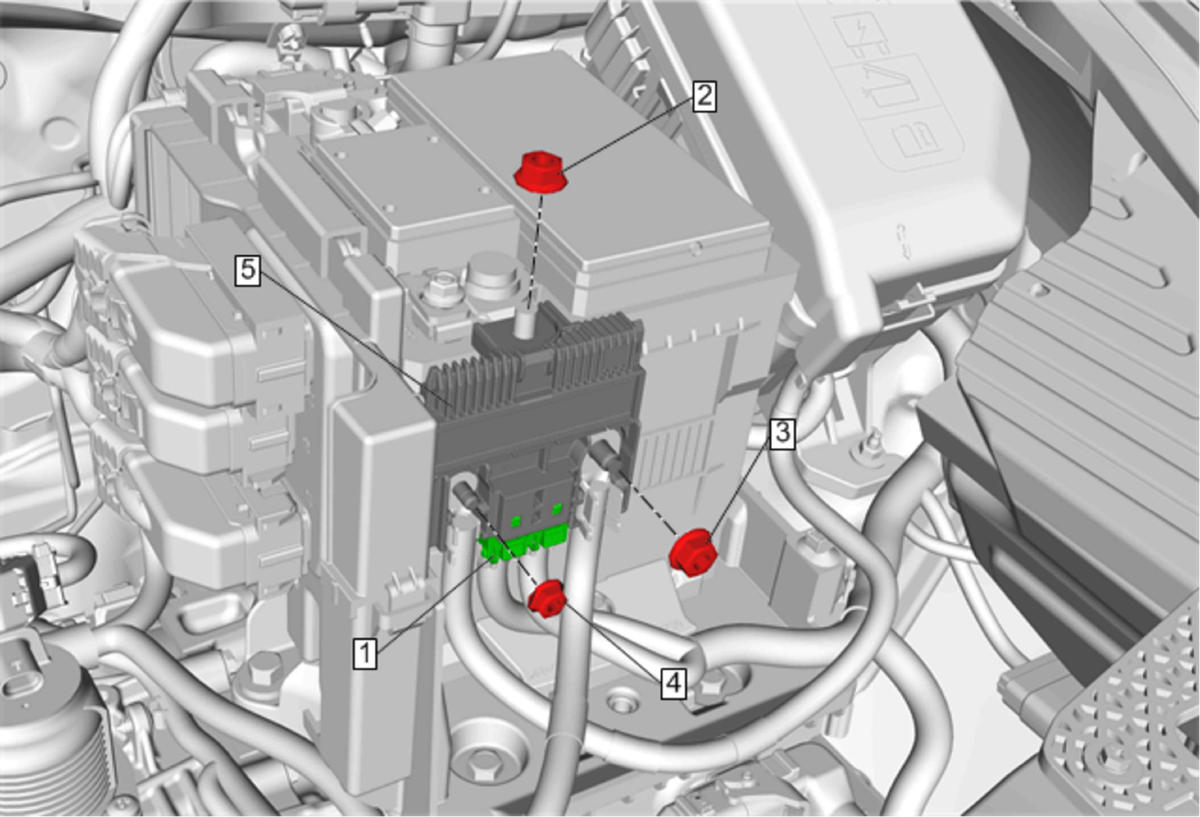

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the battery positive cable terminal cover. If quipped, remove the engine control module (S53) from the battery tray. Engine Control Module Replacement
1	Body Wiring Harness Cable Connectors
2	Battery Positive Cable Terminal Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
3	Battery Positive Cable Junction Block Nut Tighten 22 N.m (16 lb ft)
4	Battery Positive Cable Junction Block Nut from engine wiring harness junction block Tighten 9 N.m (80 lb in)
5	Battery Positive Cable Junction Block
