Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

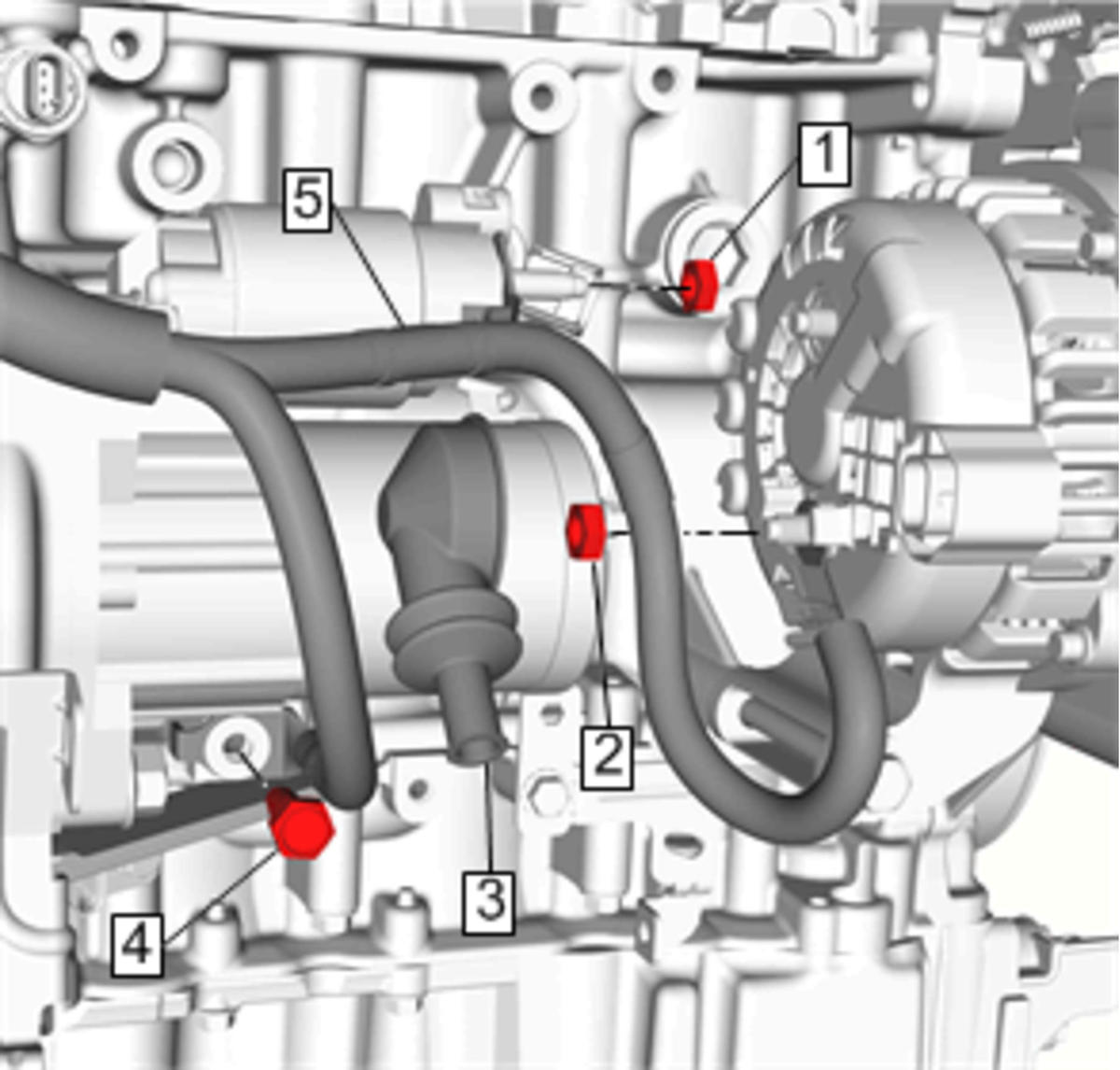

Install the battery positive cable (5) to the generator B (+) stud and tighten the generator B (+) nut (2) to 14 N.m (10 lb ft).
Install the protective cover (3).
Install the battery positive cable nut (1) and tighten to 14 N.m (10 lb ft).
Install the battery positive cable ground bolt (4) and tighten to 22 N.m (16 lb ft).
Courtesy of GENERAL MOTORS COMPANY

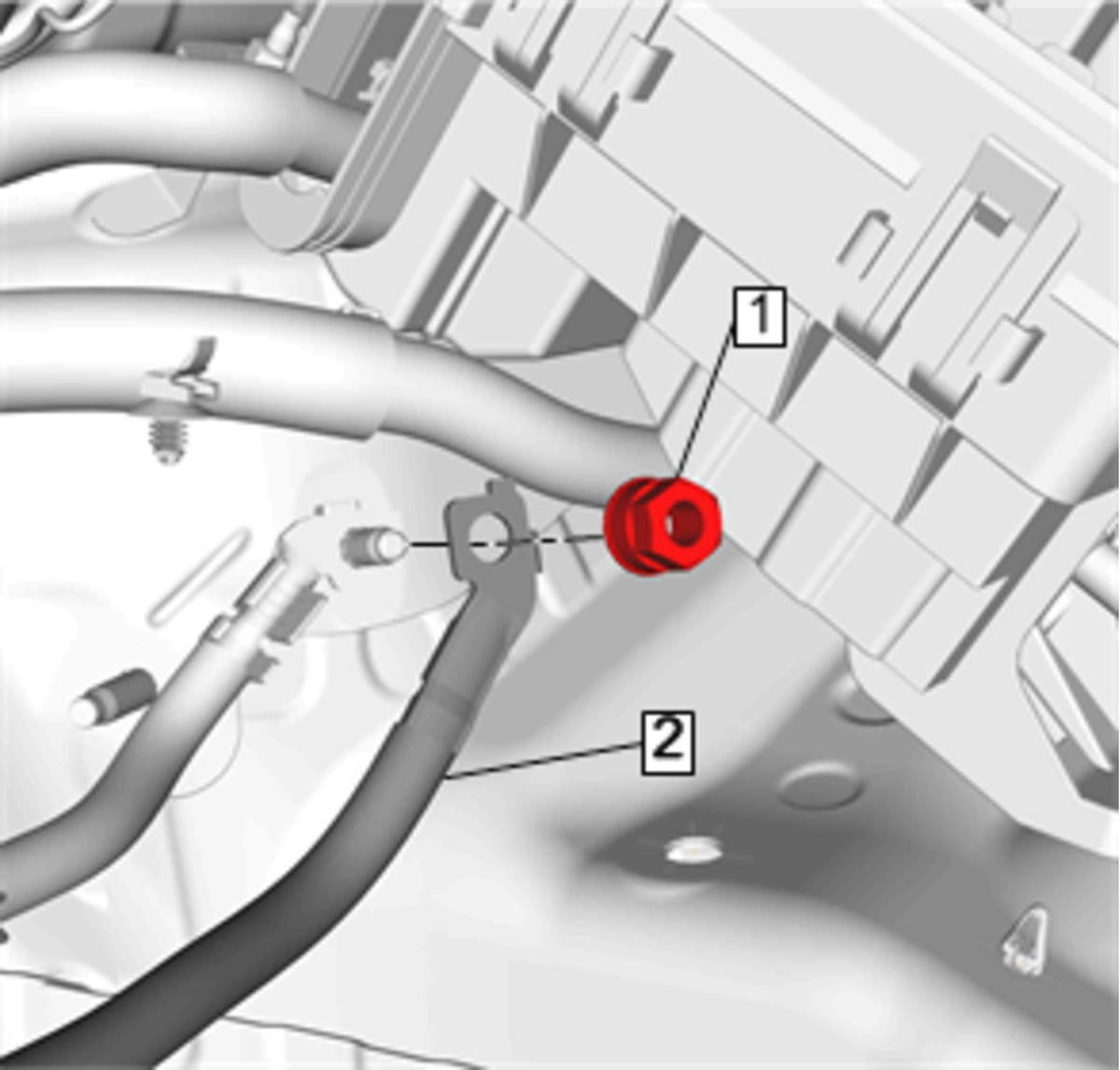

Install the battery positive cable (2) to the frame stud ground and tighten the battery negative and positive ground nut (1) to 22 N.m (16 lb ft).
Install the battery. Battery Replacement .
Courtesy of GENERAL MOTORS COMPANY

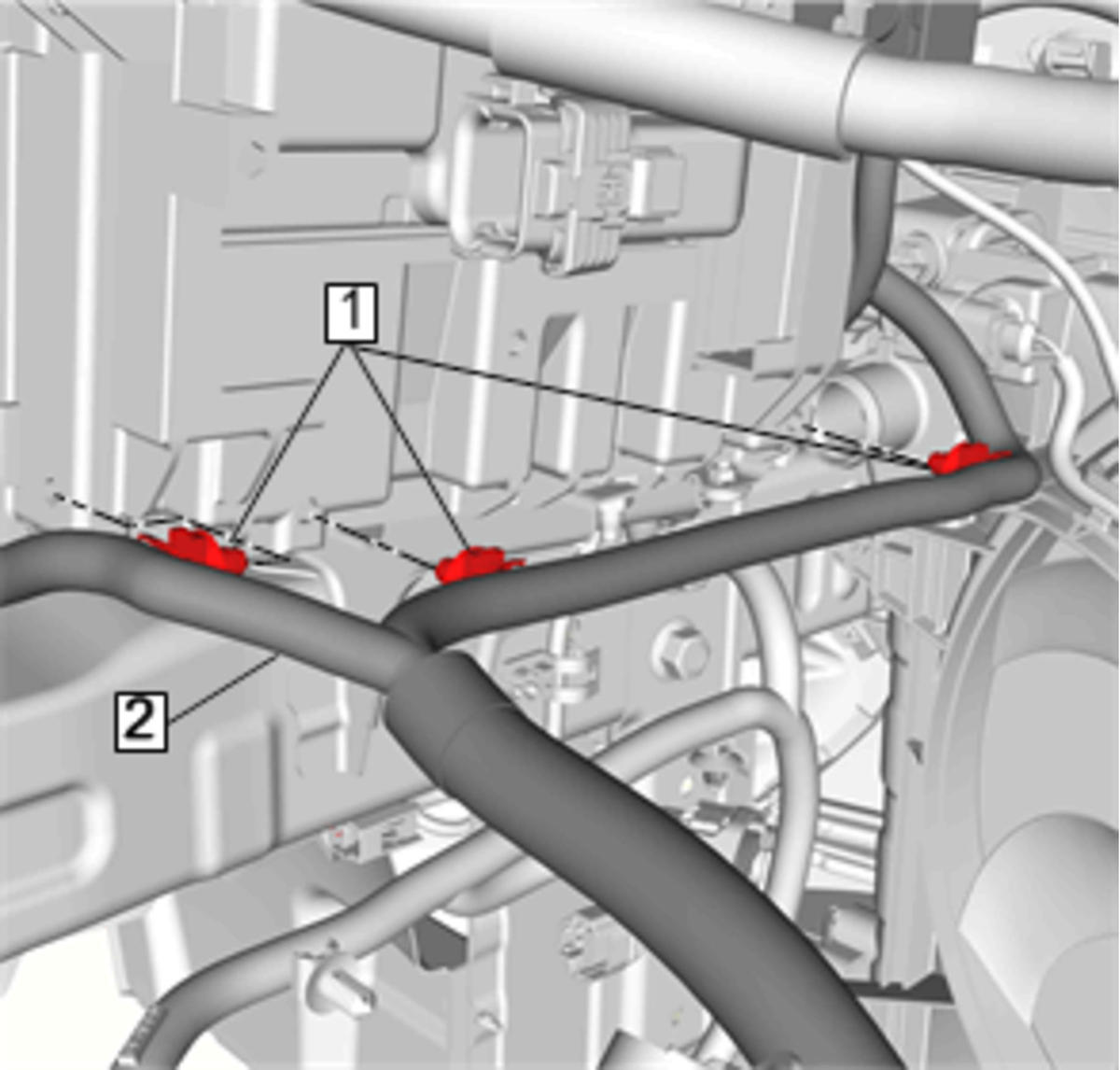

Install the battery positive cable retainers (1) and the battery positive cable to the battery tray.
Courtesy of GENERAL MOTORS COMPANY

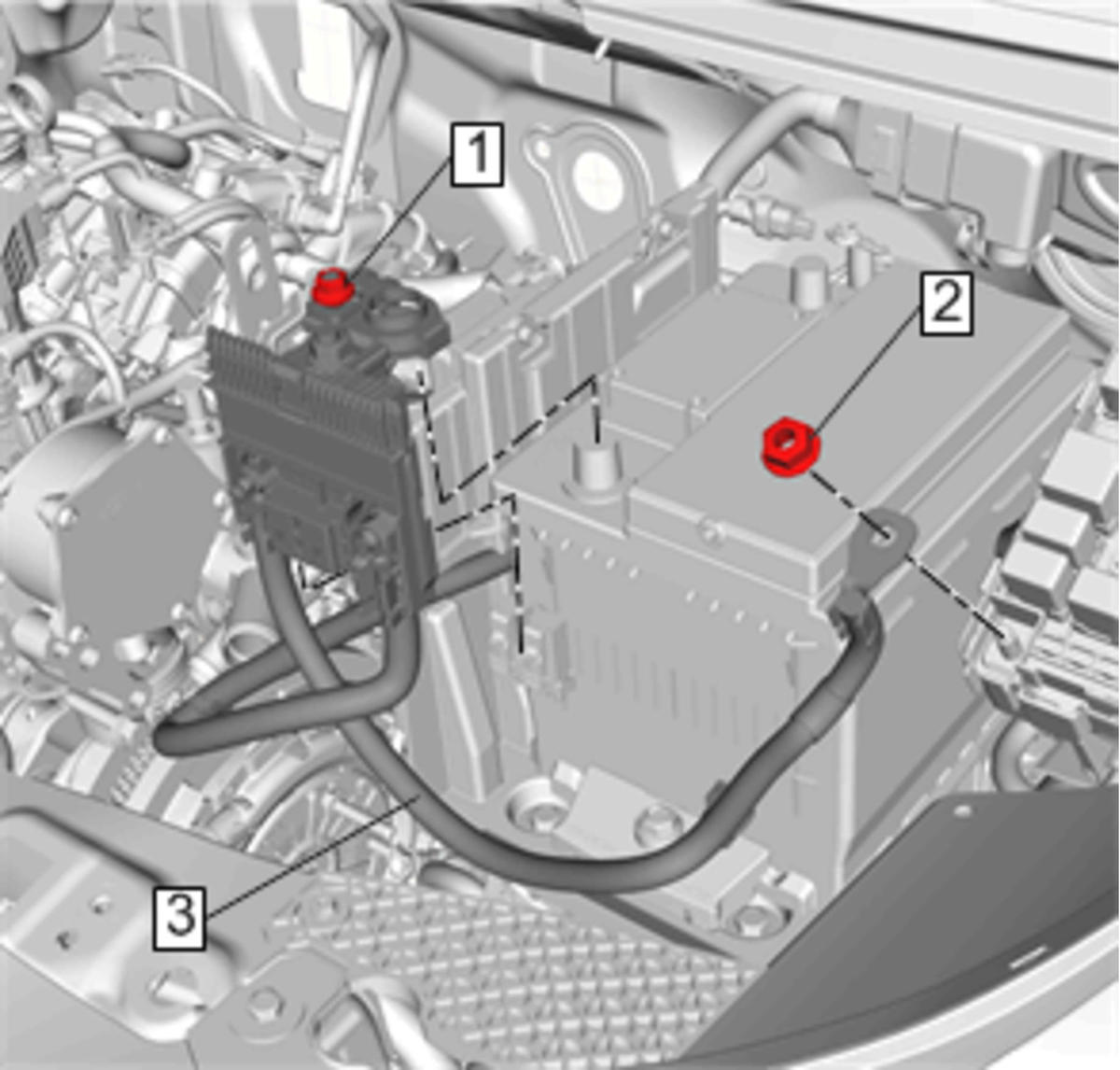

Install the battery positive cable (3) to the battery and the engine wiring harness junction block.
Install the battery positive cable junction block post nut (1) and tighten to 6 N.m (53 lb in).
Install the engine wiring harness junction block nut (2) and tighten to 22 N.m (16 lb ft).
Courtesy of GENERAL MOTORS COMPANY

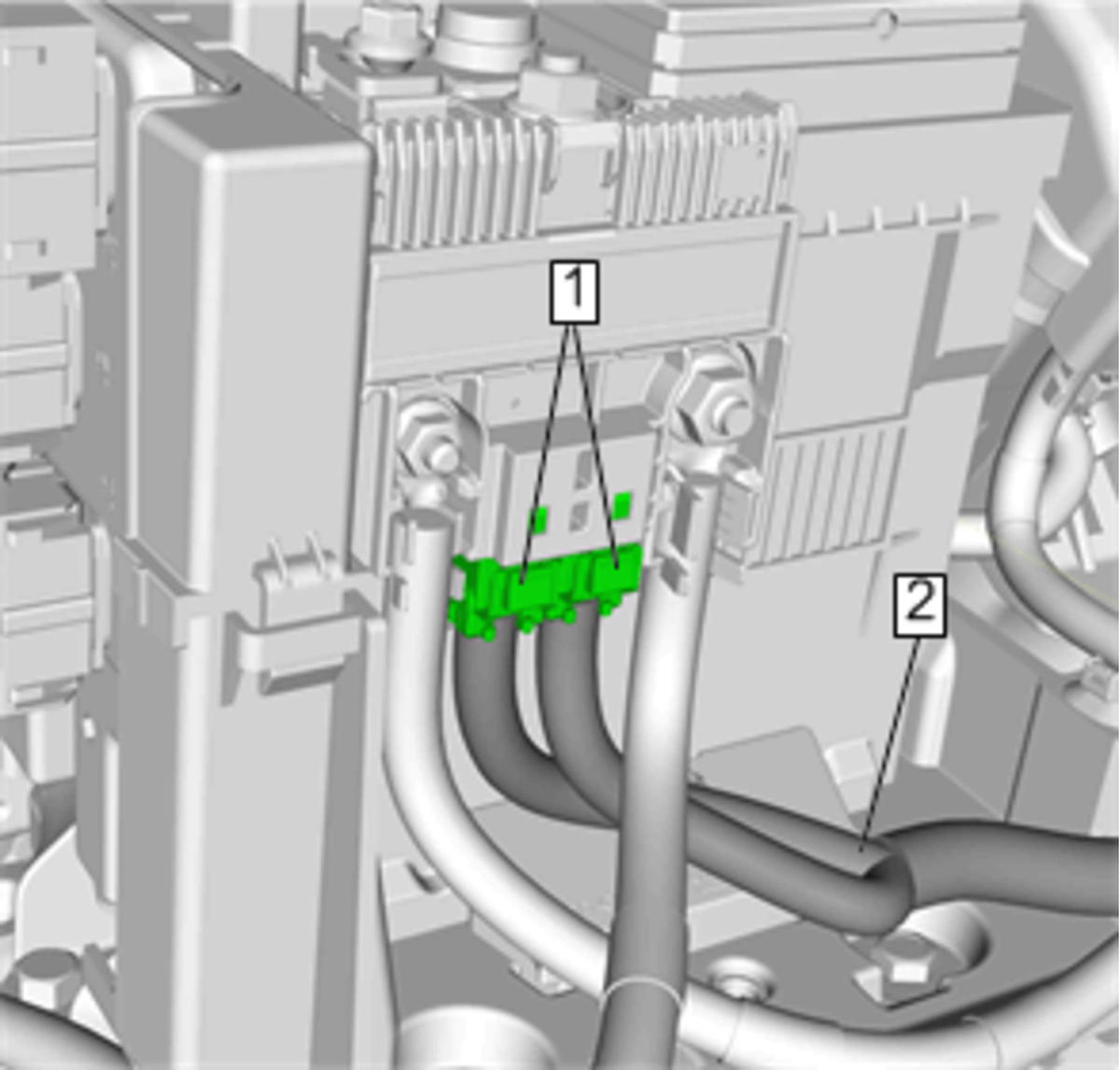

Install the body wiring harness (2) to the battery positive cable junction block and connect the body wiring harness connectors (1).
Courtesy of GENERAL MOTORS COMPANY

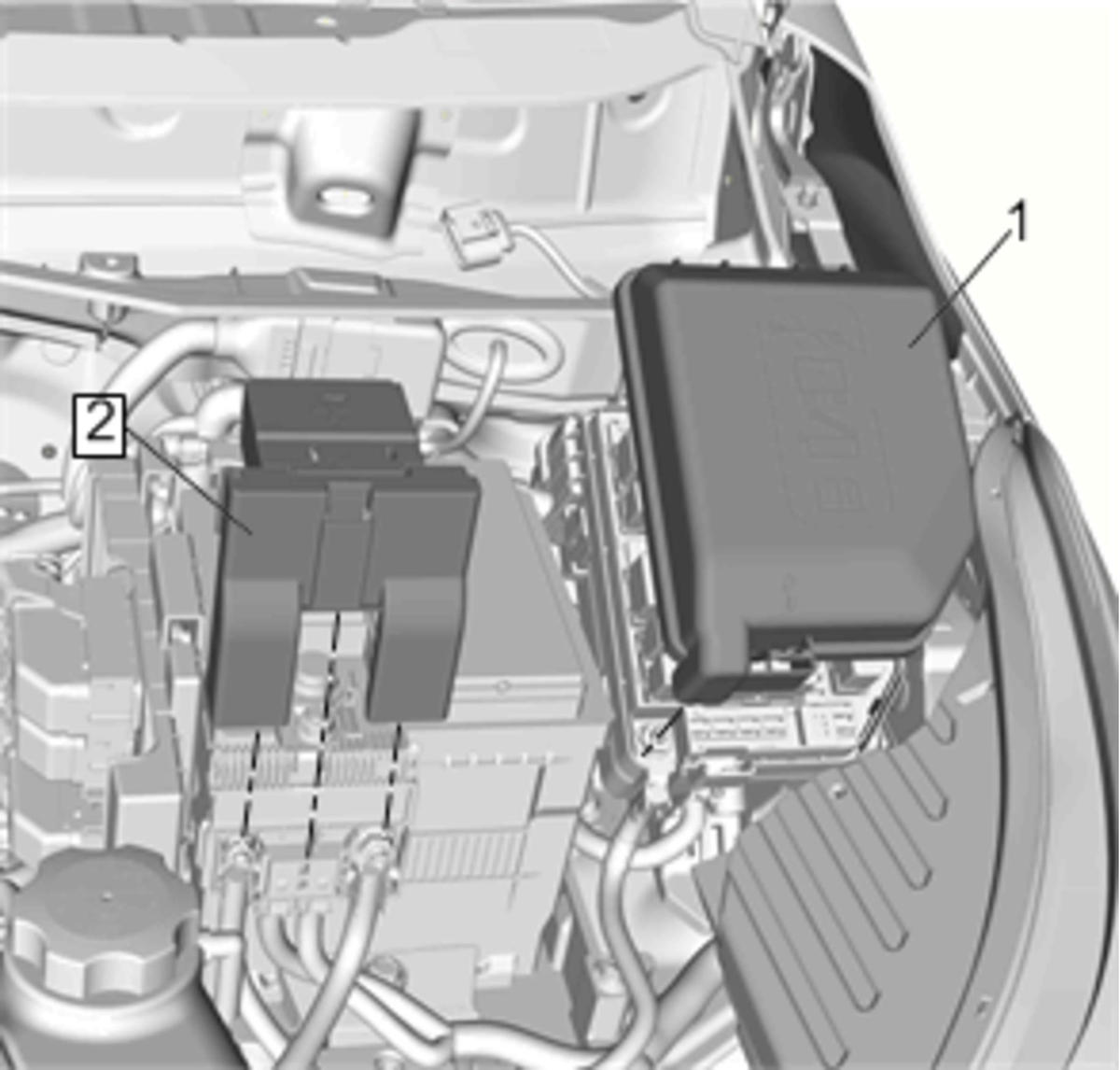

Install the battery positive cable terminal cover (2).
Install the engine wiring harness junction block cover (1).
Install the engine control module (S53) to the battery tray. Engine Control Module Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
