Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

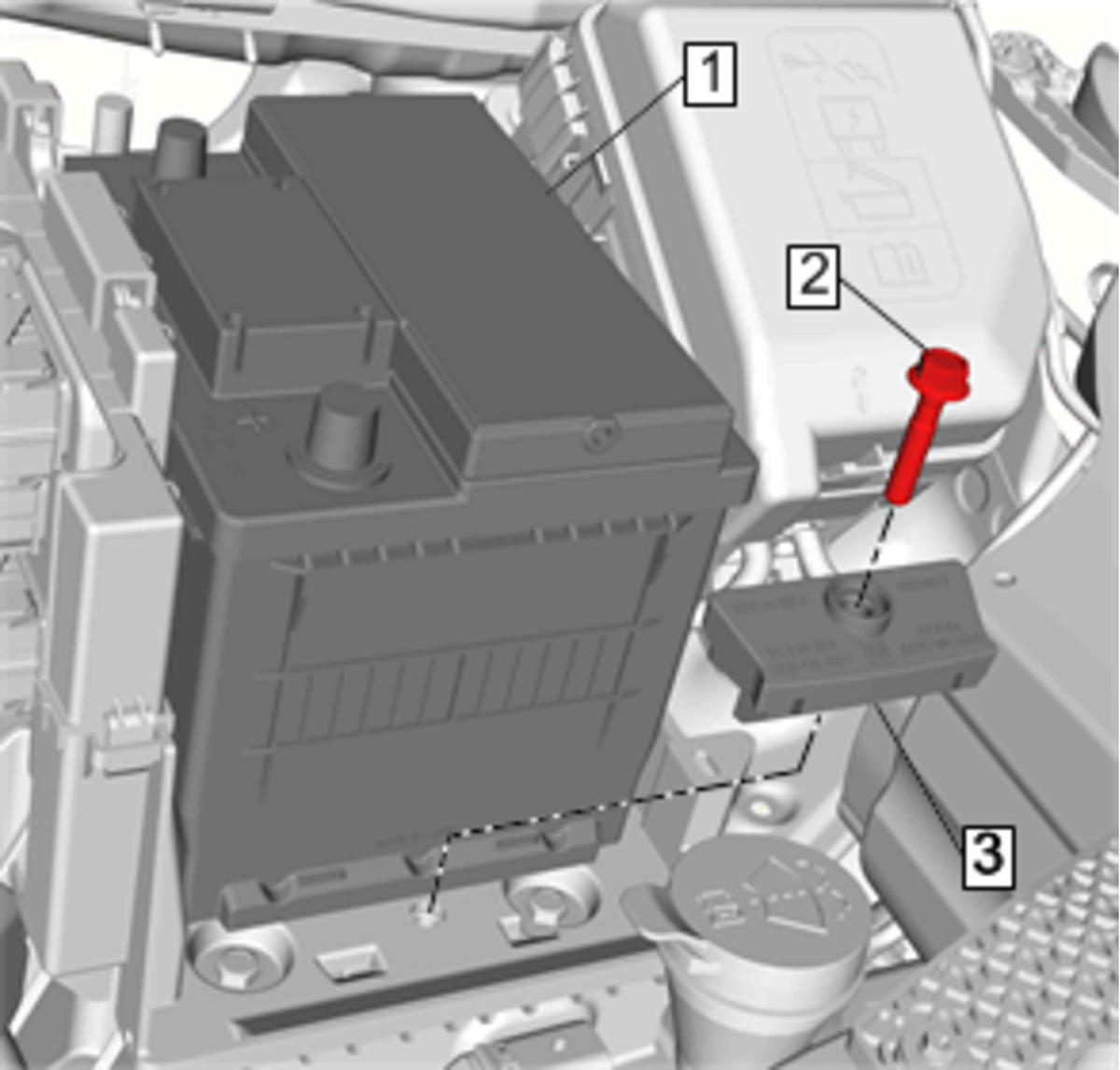

Install the battery (1) into the battery tray.

CAUTION:

Install the battery bracket (3) and tighten the battery bracket bolt (2) to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

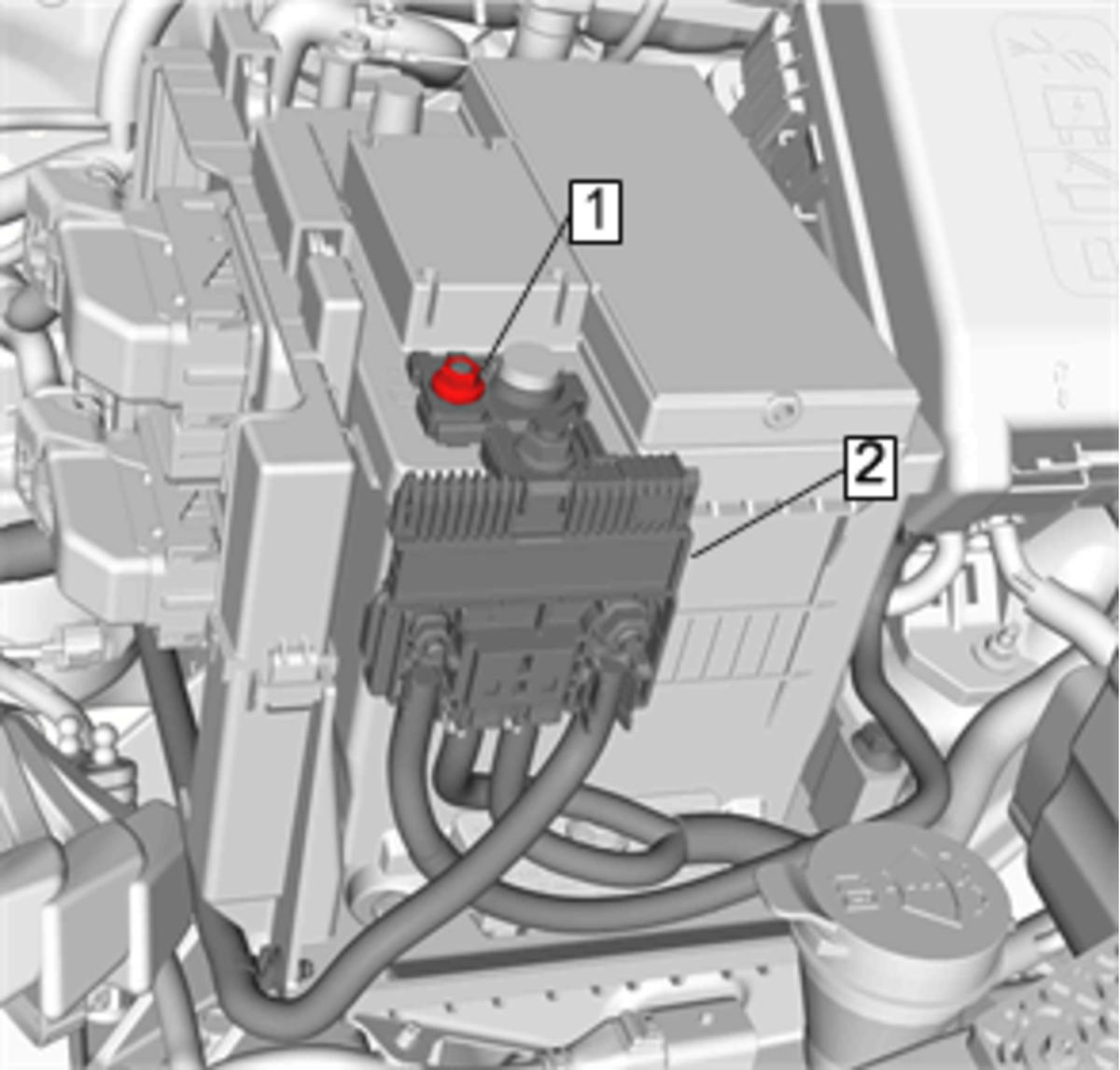

Install the battery positive cable (2) to the battery and tighten the battery positive cable junction block post nut (1) to 6 N.m (53 lb in).
Courtesy of GENERAL MOTORS COMPANY

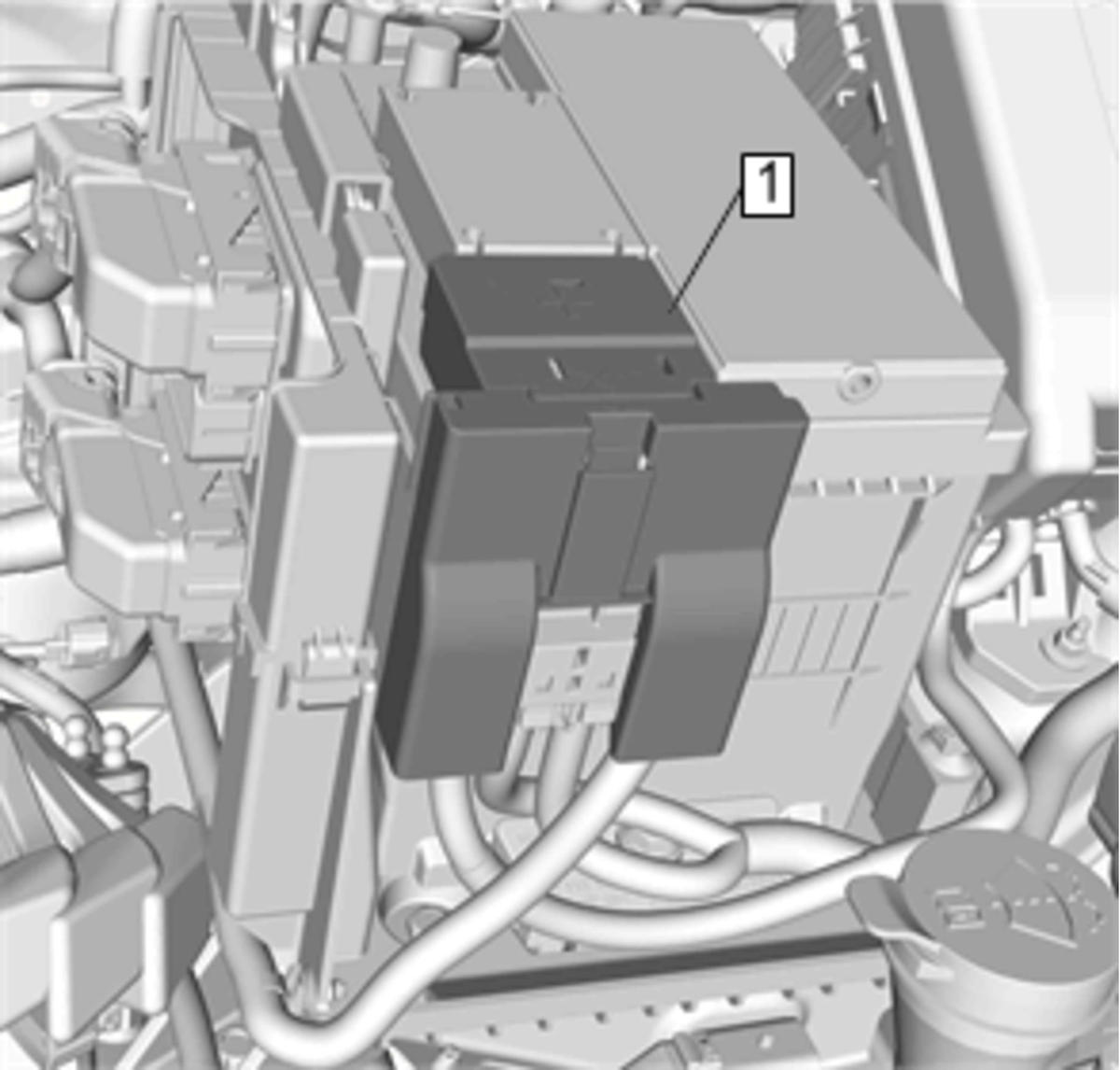

Install the battery positive cable junction block cover (1).
Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
