HVAC Components

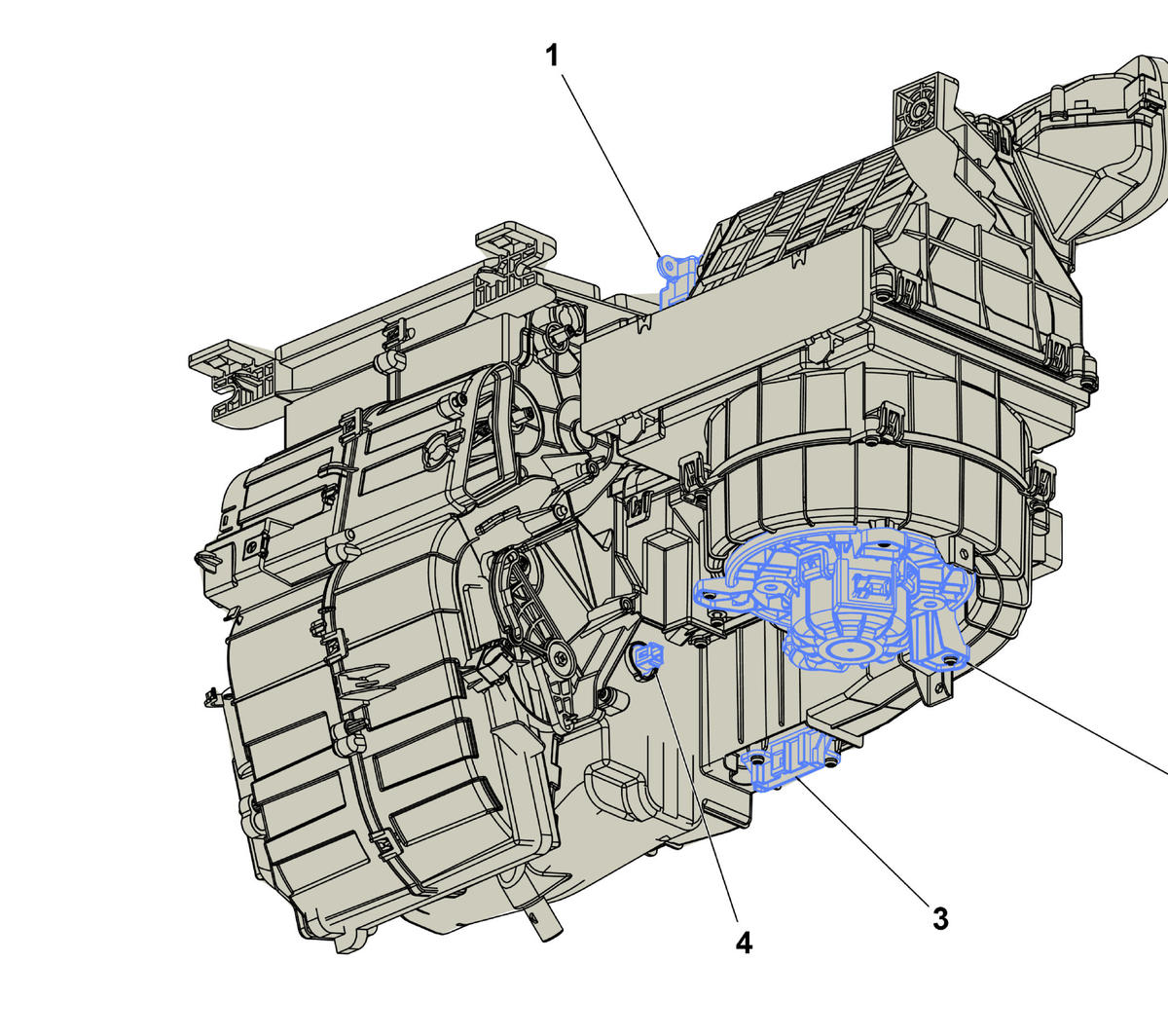

GM5311703Courtesy of GENERAL MOTORS COMPANY
HVAC Components

Items
1. M46 Air Recirculation Door Actuator (C41/C60/C68) M46 Air Recirculation Door Motor
2. M8 Blower Motor (C41/C60/C68) M8 Blower Motor (C41/C60) , or M8 Blower Motor (C68)
3. R3 Blower Motor Resistor (C41/C60) R3 Blower Motor Resistor (C41/C60)
4. B39 A/C Evaporator Temperature Sensor (C60/C68) B39 A/C Evaporator Temperature Sensor
