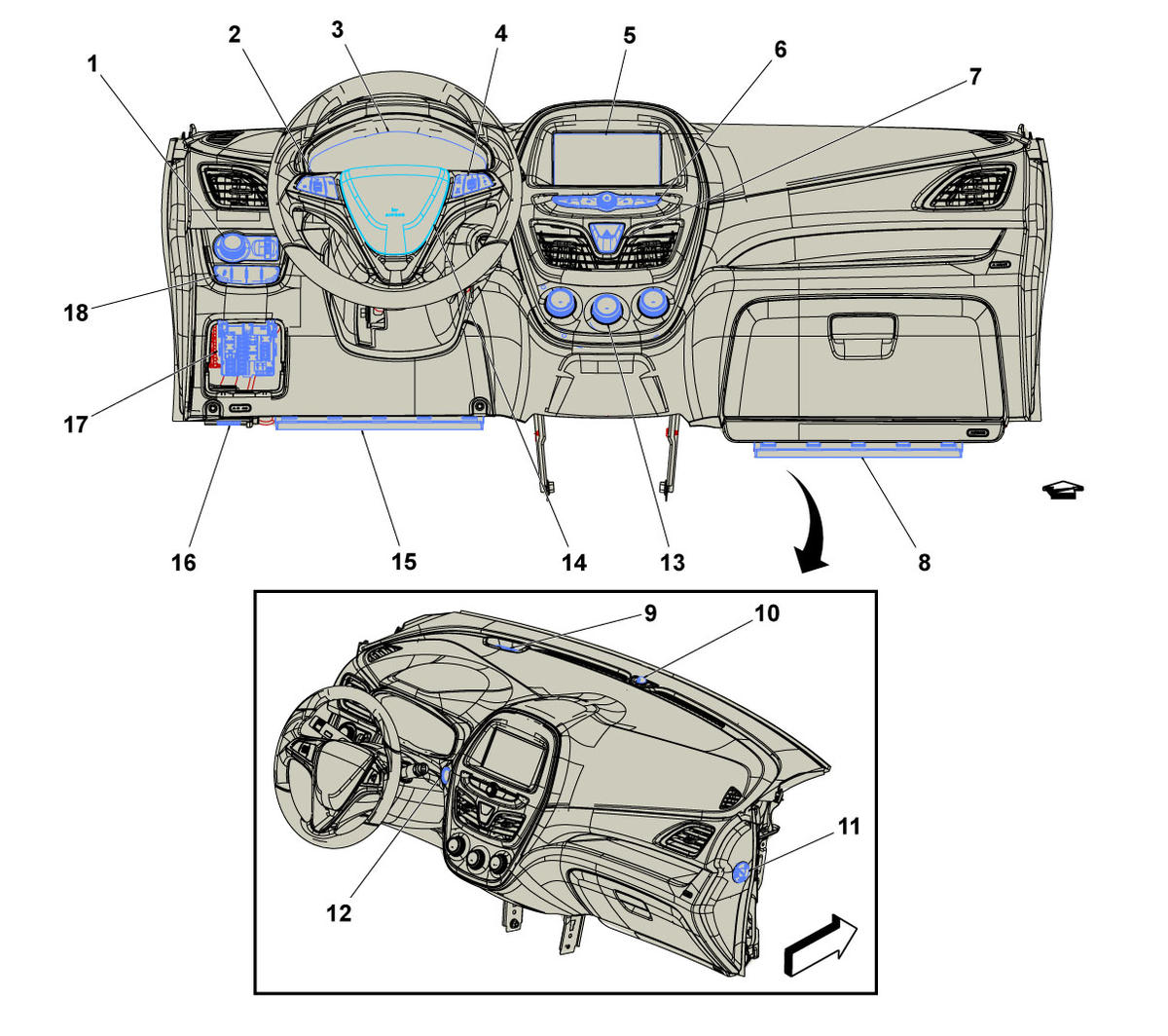

Instrument Panel Components (LHD)

Courtesy of GENERAL MOTORS COMPANY

Items
1. S30 Headlamp Switch S30 Headlamp Switch
2. S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left
3. P16 Instrument Cluster P16 Instrument Cluster
4. S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
5. P17 Info Display Module P17 Info Display Module X1 (IOR) , or P17 Info Display Module X2 (IOR)
6. A22 Radio Controls A22 Radio Controls
7. S26 Hazard Warning Switch S26 Hazard Lamps Switch
8. F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger (AK5/AJ7/AYC) , or F114P Knee Air Bag - Passenger (AYF)
9. P43 Collision Alert Indicators (UEU/UFL) P43 Collision Alert Indicators (UEU)
10. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
11. S40 Passenger Air Bag Disable Switch (C99) S40 Passenger Air Bag Disable Switch
12. S38 Ignition Mode Switch (AVJ) S38 Ignition Mode Switch (AVJ)
13. A26 HVAC Controls (C68) A26 HVAC Controls
14. F101 Passenger Instrument Panel Air Bag (AK5/AYF) F101 Passenger Instrument Panel Air Bag (LHD+AK5/AJ7/AYC) , or F101 Passenger Instrument Panel Air Bag X1 (LHD+AYF) , or F101 Passenger Instrument Panel Air Bag X2 (LHD+AYF)
15. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver (AYF)
16. X84 Data Link Connector X84 Data Link Connector
17. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1 , or X51A Fuse Block - Instrument Panel X2 (LHD) , or X51A Fuse Block - Instrument Panel X2 (RHD)
18. S48A Multifunction Switch - Instrument Panel S48A Multi-Function Switch - Instrument Panel
