UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 2

Courtesy of GENERAL MOTORS COMPANY

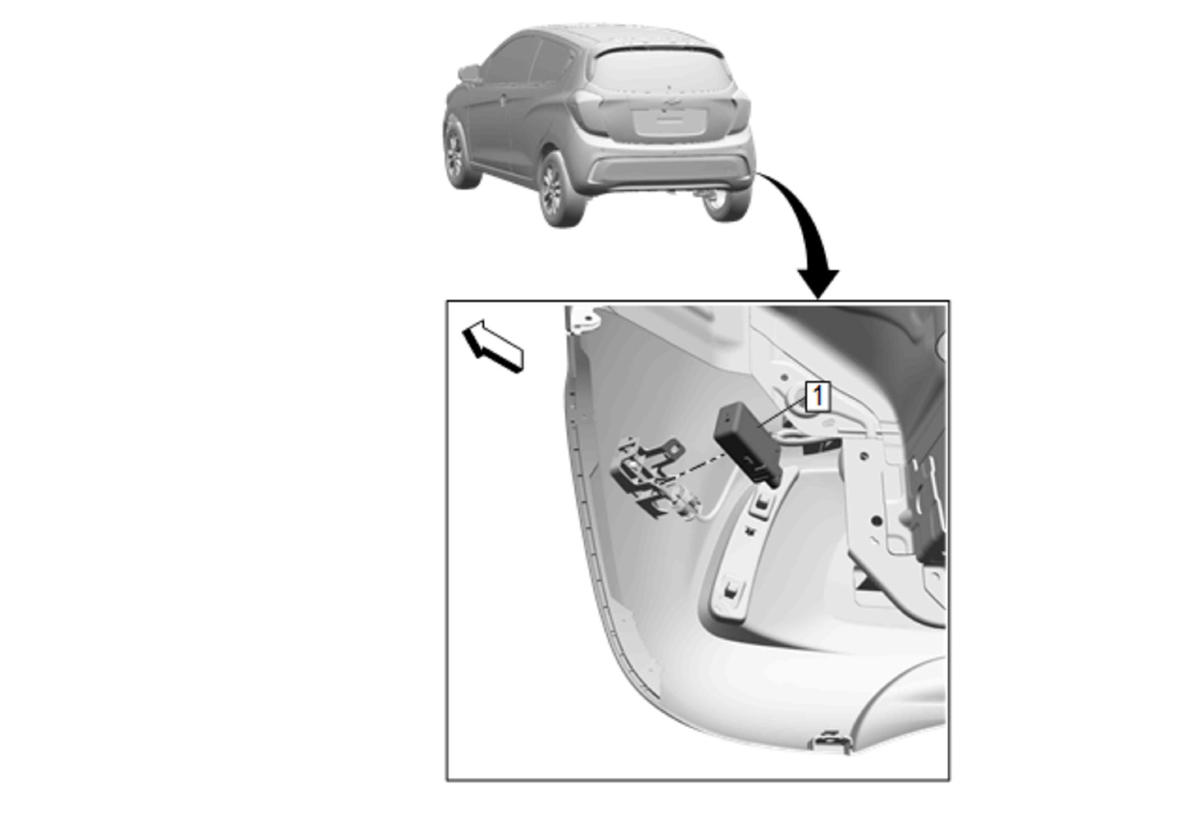

Callout	Component Name
Preliminary Procedure Remove the right side rear wheelhouse liner. Rear Wheelhouse Liner Replacement
1	UHF Low Energy Remote Control Access Sensor Transceiver - 2 Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove the right side rear wheelhouse liner. Rear Wheelhouse Liner Replacement

UHF Low Energy Remote Control Access Sensor Transceiver - 2

Procedure
