Installation Procedure

Position the steering column in the uppermost tilted position.
Courtesy of GENERAL MOTORS COMPANY

Install the spring guide (1) into the tilt spring (2).
Courtesy of GENERAL MOTORS COMPANY

WARNING:
The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.

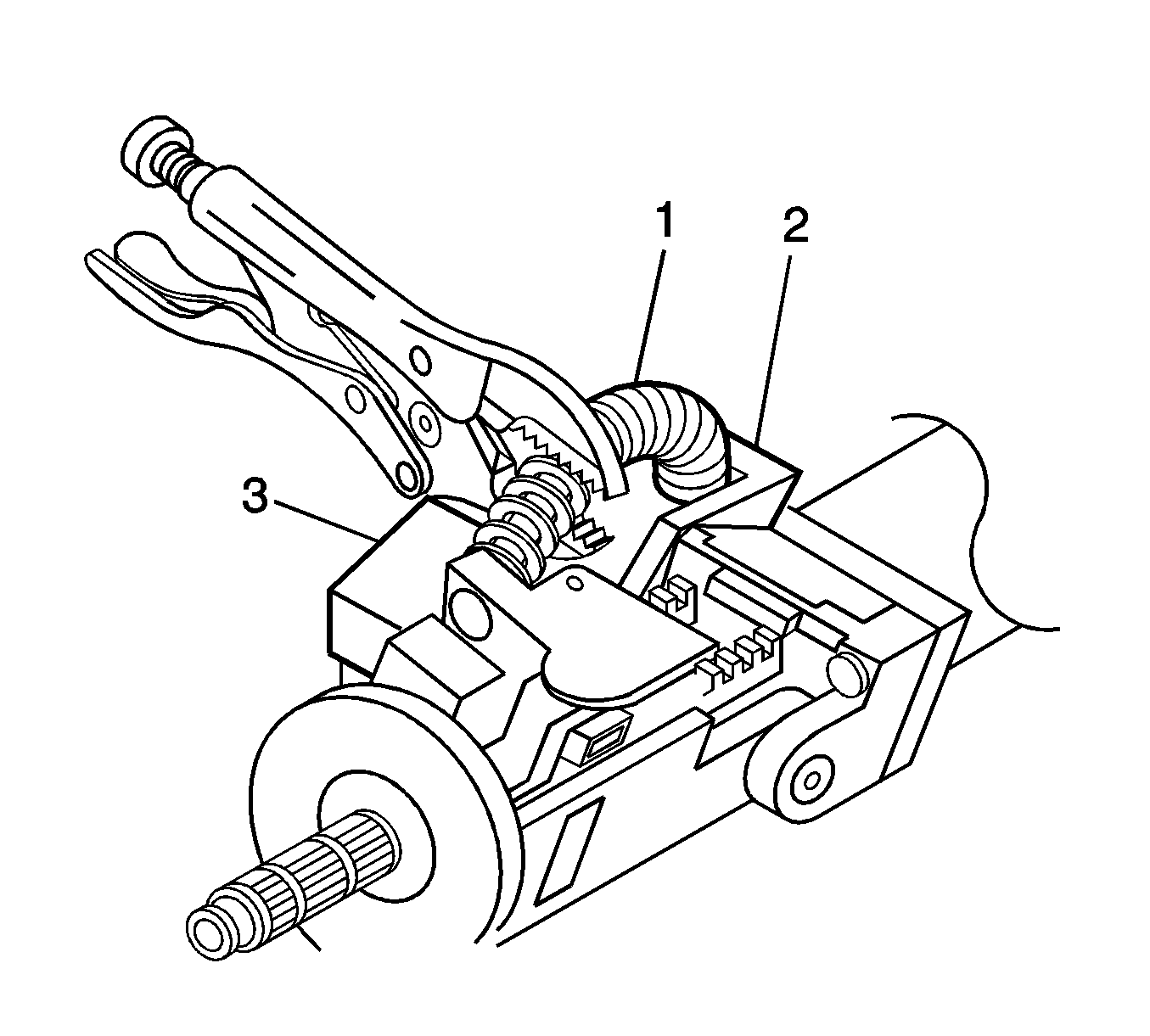

Install the tilt spring (1) on the steering column using the following procedure:
1. Install the tilt spring (1) onto the post on the steering column tilt head (3).
2. Install the tilt spring (1) onto the post on the steering column (2).
3. Remove the locking pliers.
Steering Column Shroud - Install - Steering Column Shroud Replacement (RPO N37) Steering Column Shroud Replacement (RPO N38) Steering Column Shroud Replacement (RPO N33)
Instrument Panel Knee Bolster - Install - Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac)
