Installation Procedure

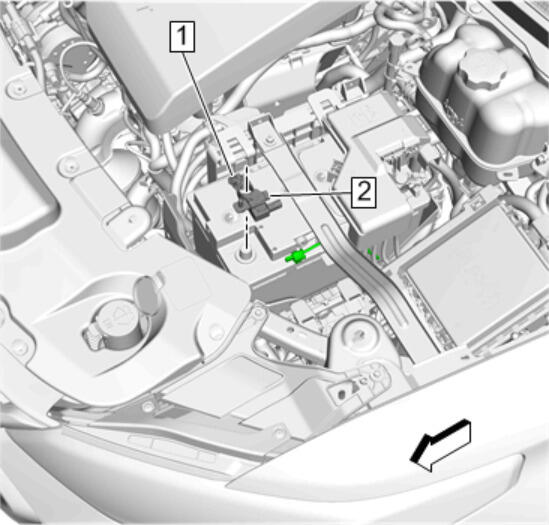

  1. GM4736948Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Post Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)

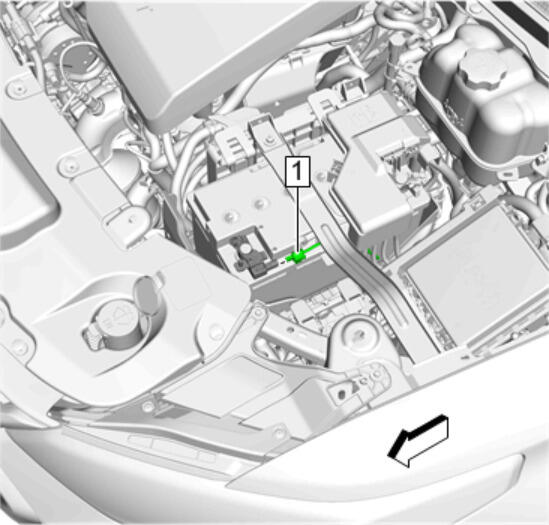

  3. GM4736946Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

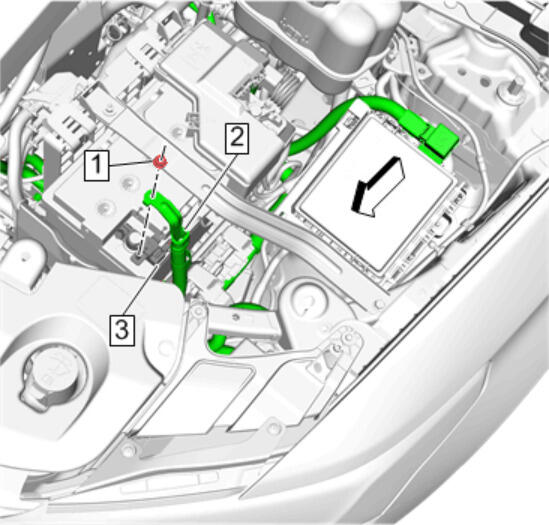

  4. GM4728656Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (2) - Install

  5. Battery Negative Cable Nut (1)@Battery Monitor Module (3) - Install and tighten 11 N.m (97 lb in)
  6. Perform the battery sensor learn procedure. Battery Sensor Module Learn
