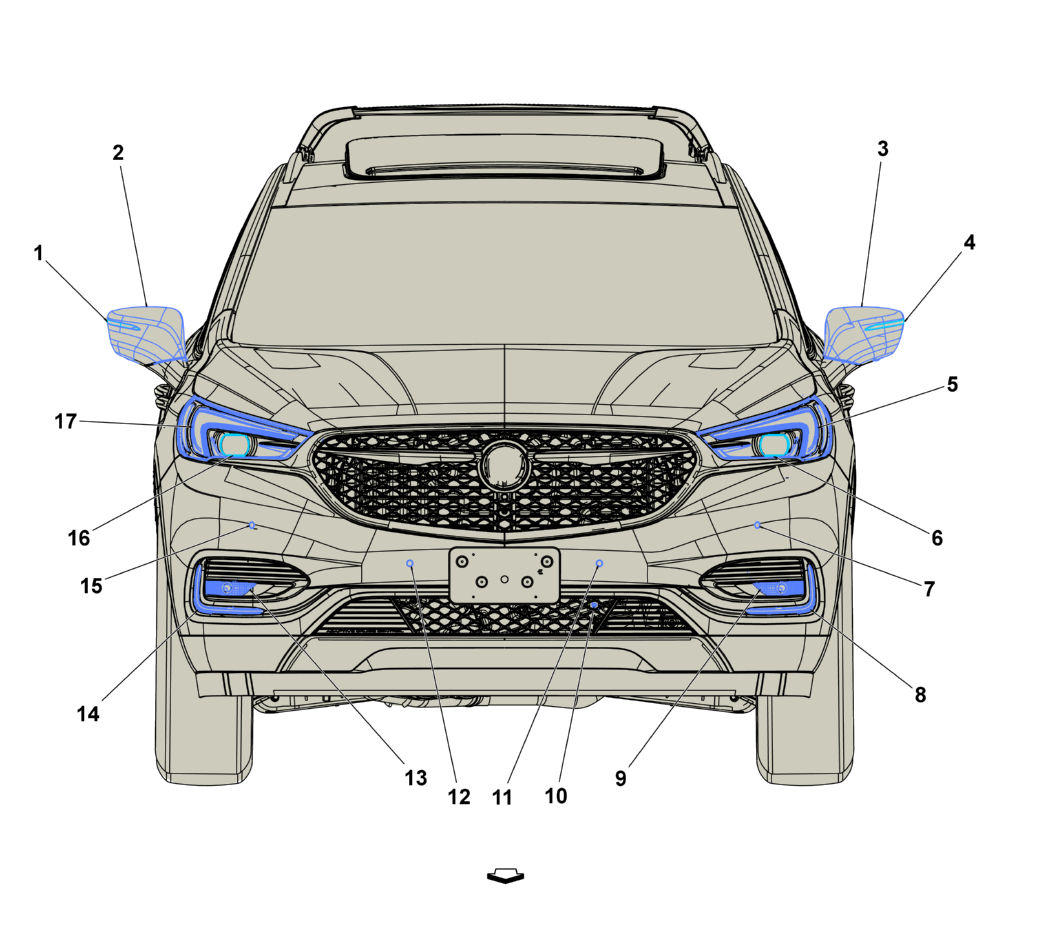

Front of Vehicle Components (W49)
Front of Vehicle Components (W49)
| Items |
|---|
| 1. E4Z Turn Signal Repeater Lamp - Right (DNP) |
| 2. A9B Outside Rearview Mirror - Passenger |
| 3. A9A Outside Rearview Mirror - Driver |
| 4. E4Y Turn Signal Repeater Lamp - Left (DNP) |
| 5. E67R Multifunction LED - Right Headlamp |
| 6. E4G Headlamp - Left Low Beam |
| 7. B306A Parking Assist Sensor - Front Left Outer (UD5) B306A Parking Assist Sensor - Front Left Outer (UD5) |
| 8. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front (W49) |
| 9. E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front (W49) |
| 10. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 11. B306B Parking Assist Sensor - Front Left Middle (UD5) B306B Parking Assist Sensor - Front Left Middle (UD5) |
| 12. B306C Parking Assist Sensor - Front Right Middle (UD5) B306C Parking Assist Sensor - Front Right Middle (UD5) |
| 13. E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front (W49) |
| 14. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front (W49) |
| 15. B306D Parking Assist Sensor - Front Right Outer (UD5) B306D Parking Assist Sensor - Front Right Outer (UD5) |
| 16. E4H Headlamp - Right Low Beam |
| 17. E67L Multifunction LED - Left Headlamp |
