Ground Views: G201
Courtesy of GENERAL MOTORS COMPANY

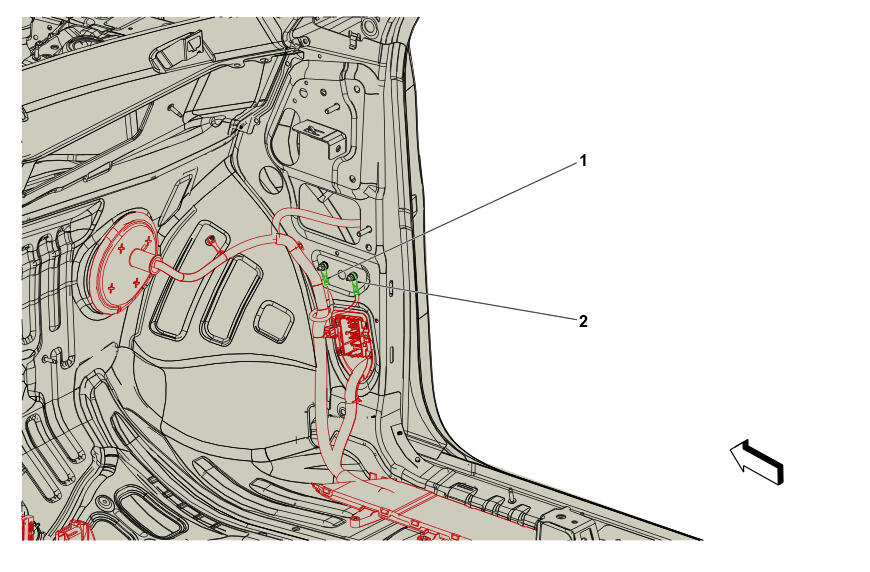

G201
Items
1. G201 Body Harness
2. G203 Instrument Panel Harness
Courtesy of GENERAL MOTORS COMPANY
