Wireless Charging System Module Replacement

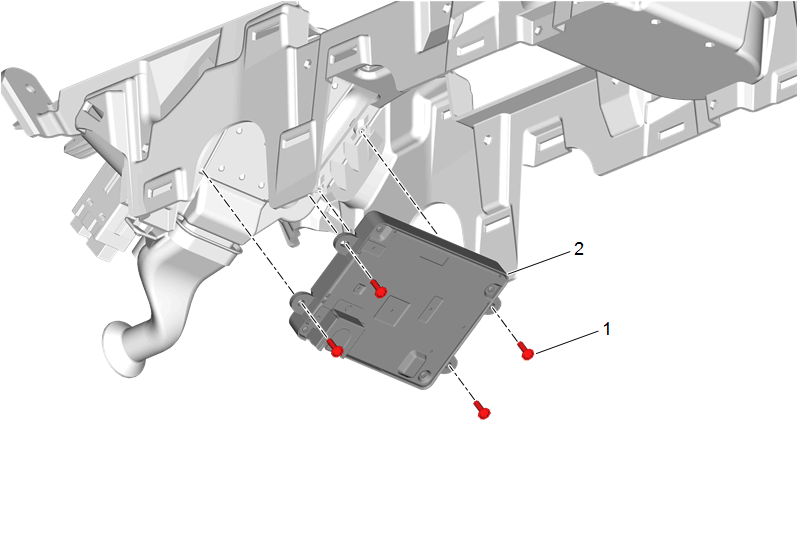

GM5147005Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Replacement
1 Front Floor Console Bracket Bolt [4x]
CAUTION:

Fastener Caution


Tighten
2.5N.m (22 lb in)
2 Wireless Charging System Module
