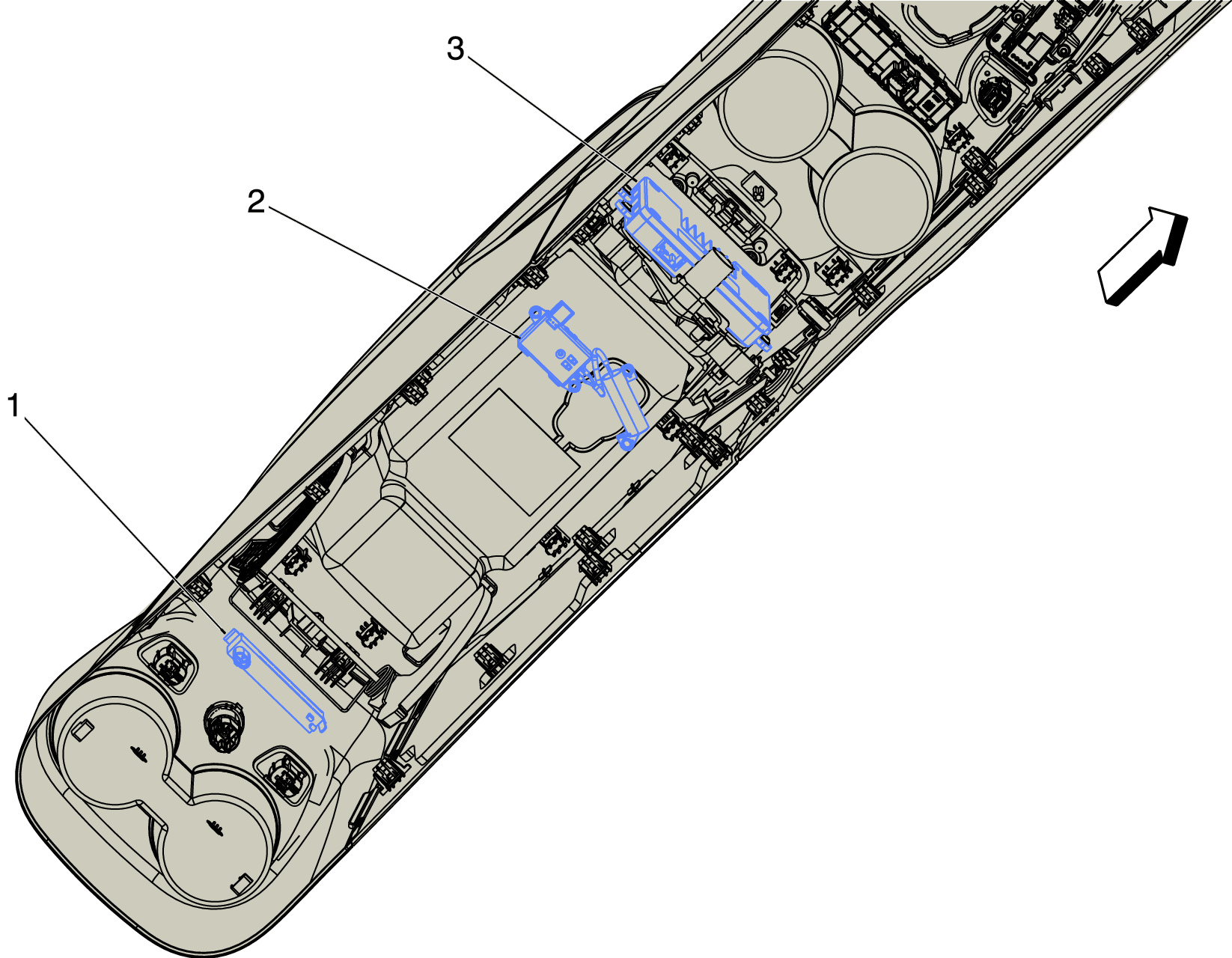

Center Console Components (2 of 3)

GM4169596Courtesy of GENERAL MOTORS COMPANY
Center Console Components (2 of 3)

Items
1. T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear
2. K89 Immobilizer Control Module K89 Immobilizer Control Module
3. T22 Mobile Device Wireless Charger Module T22 Mobile Device Wireless Charger Module
