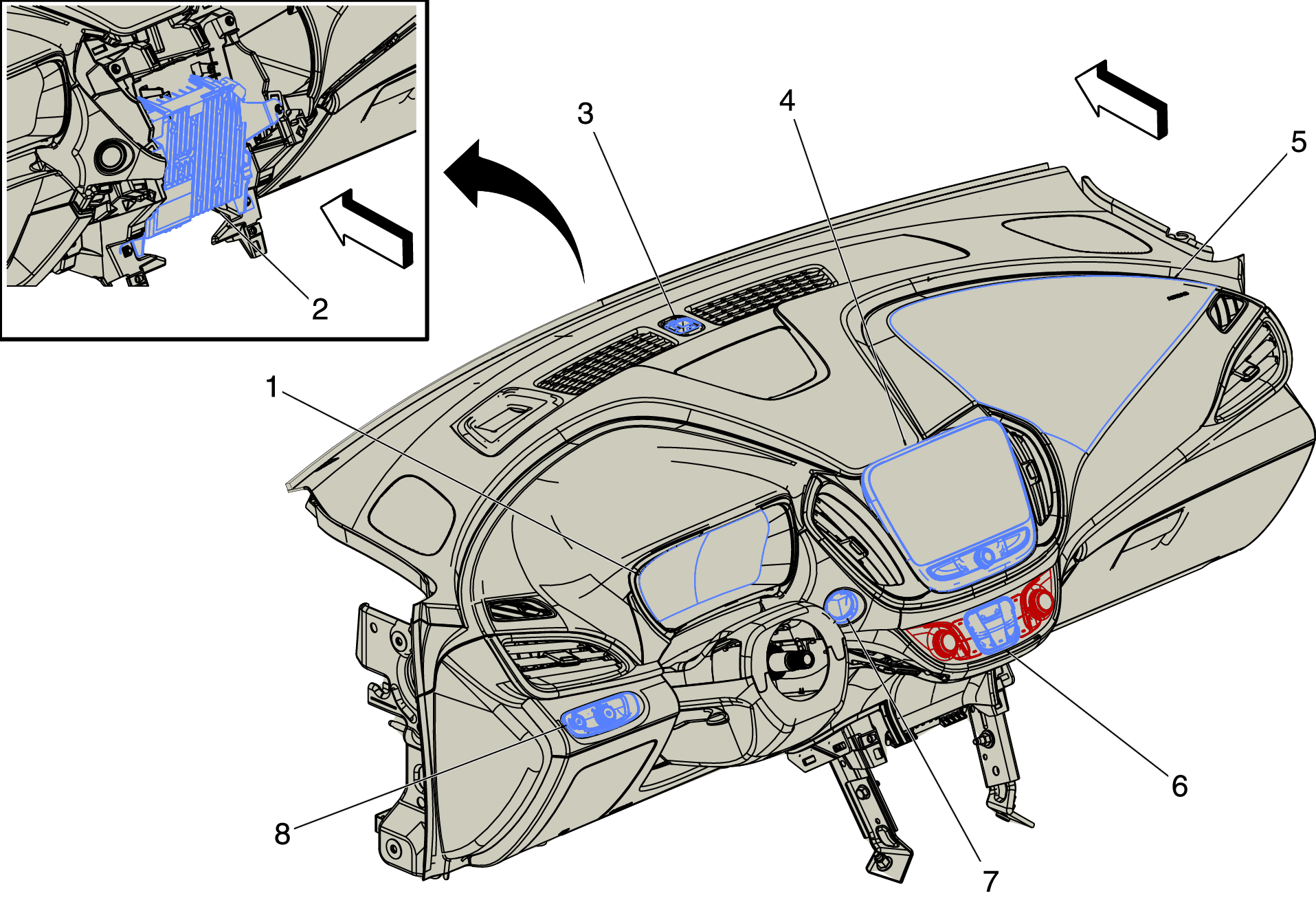

Instrument Panel Components (1 of 4)
Instrument Panel Components (1 of 4)
| Items |
|---|
| 1. P16 Instrument Cluster P16 Instrument Cluster |
| 2. A11 Radio A11 Radio X1 , or A11 Radio X10 , or A11 Radio X3 , or A11 Radio X5 , or A11 Radio X6 , or A11 Radio X7 , or A11 Radio X8 , or A11 Radio X9 |
| 3. B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator |
| 4. P17 Info Display Module P17 Info Display Module X1 , or P17 Info Display Module X2 |
| 5. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 , or F101 Passenger Instrument Panel Air Bag X2 , or F101 Passenger Instrument Panel Air Bag X3 |
| 6. A26 HVAC Controls A26 HVAC Controls |
| 7. S83 Vehicle On/Off Switch S83 Vehicle On/Off Switch |
| 8. S30 Headlamp Switch S30 Headlamp Switch |
