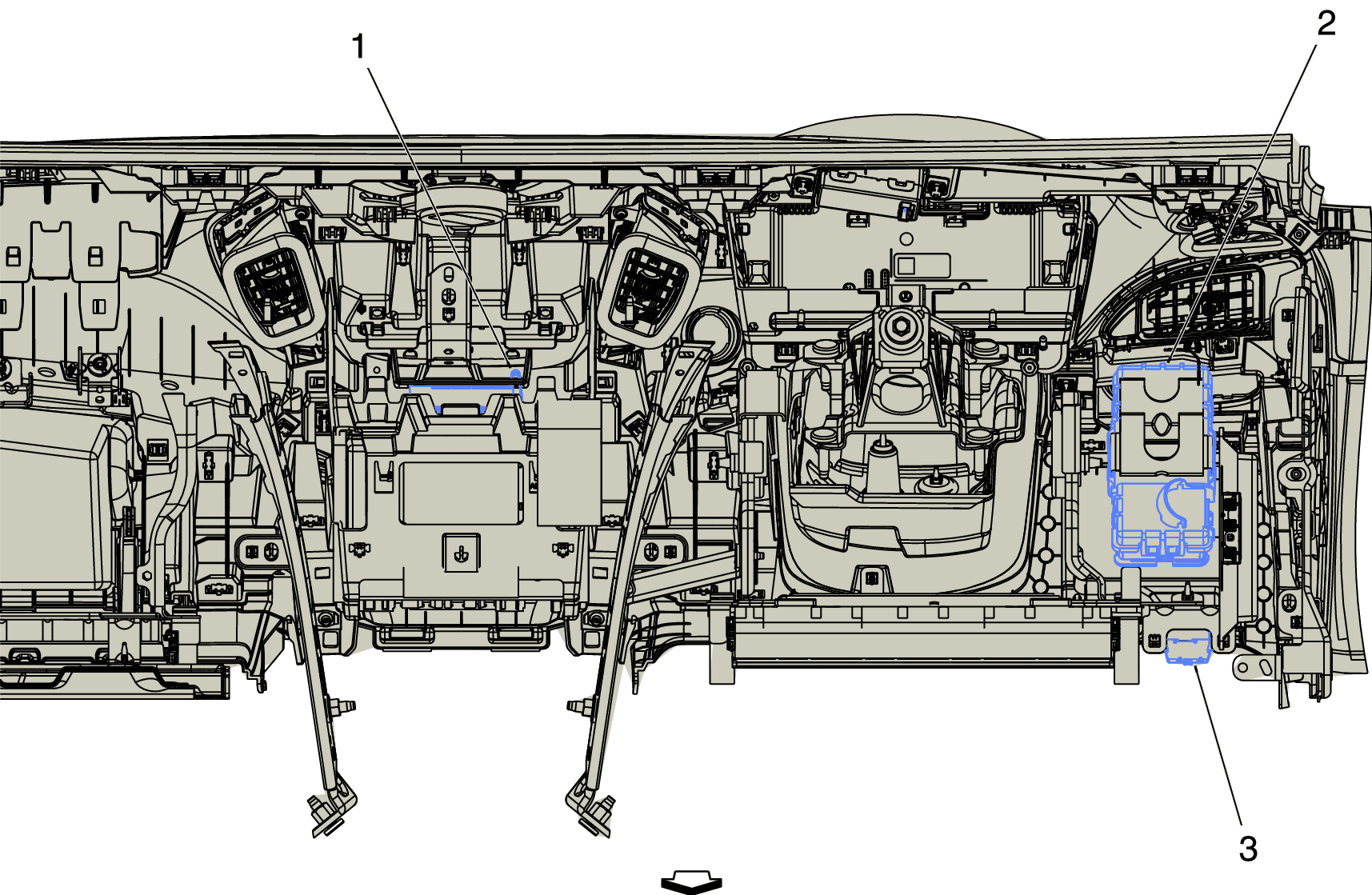

Instrument Panel Components (3 of 4)

GM5323267Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components (3 of 4)

Items
1. T10B Keyless Entry Antenna - Instrument Panel Compartment T10B Keyless Entry Antenna - Instrument Panel Compartment
2. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel
3. X84 Data Link Connector X84 Data Link Connector
4. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2
