Instrument Panel Components (4 of 4)

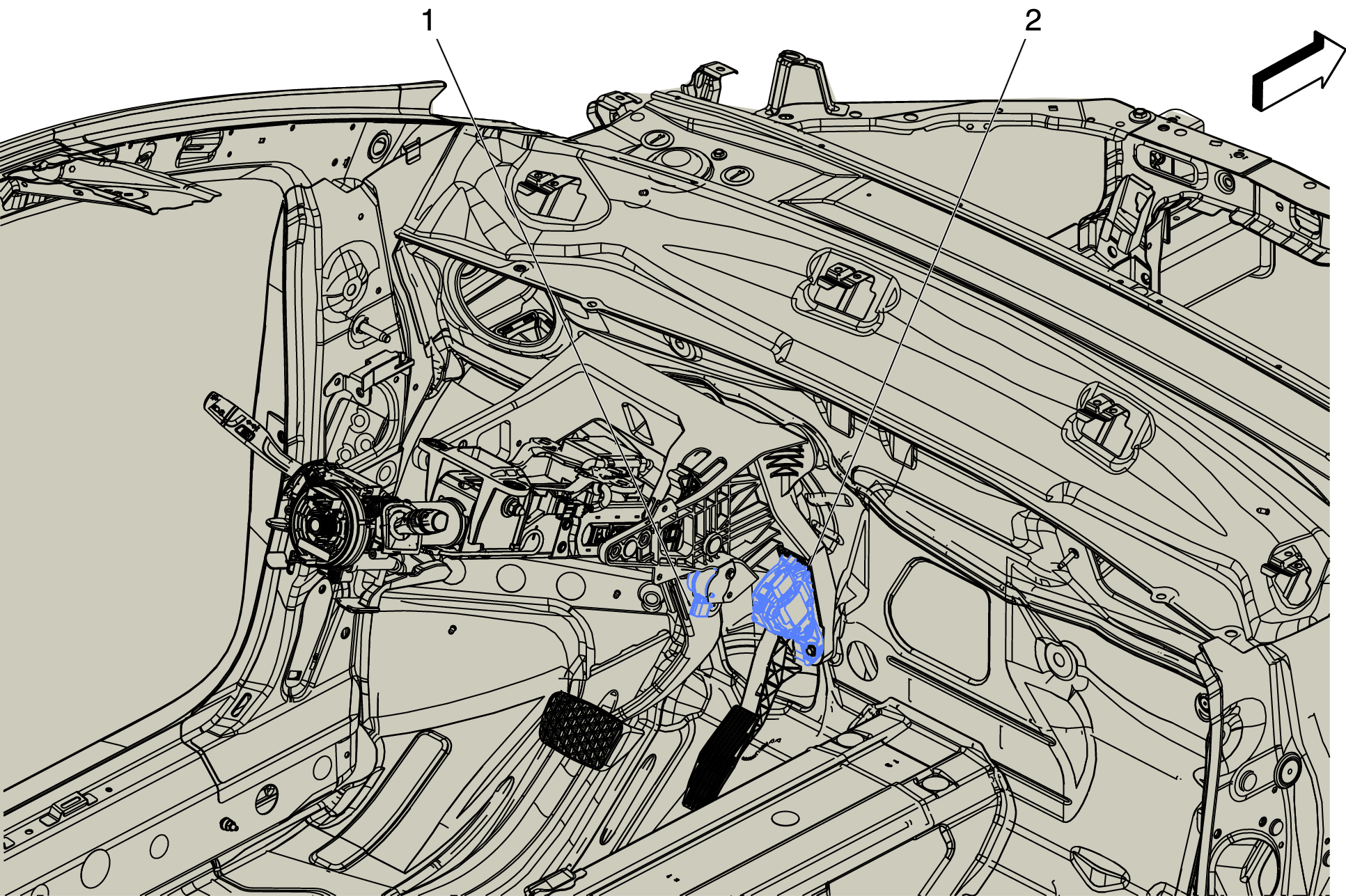

GM4169583Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components (4 of 4)

Items
1. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
