Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Position the steering column (1) on the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

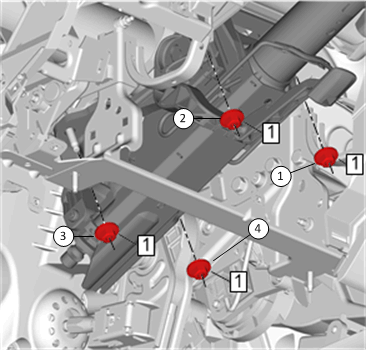

Steering Column Nut (1) - Install and tighten [4x] 22 N.m (16 lb ft)
Connect the steering column electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft (1) @ Steering Column - Install - Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct - Left Side (1) - Install - Floor Front Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Driver Side (1) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Install the steering column lock control module fuse.
Program the steering column lock control module. Control Module References
Center the steering angle sensor. Steering Wheel Angle Sensor Centering
