Electrical Component Locations
>>
Electrical Center Identification Views
>>
Visual Identification
>>
Electrical Center Identification Views
>>
X53A Fuse Block - Rear Body Label
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

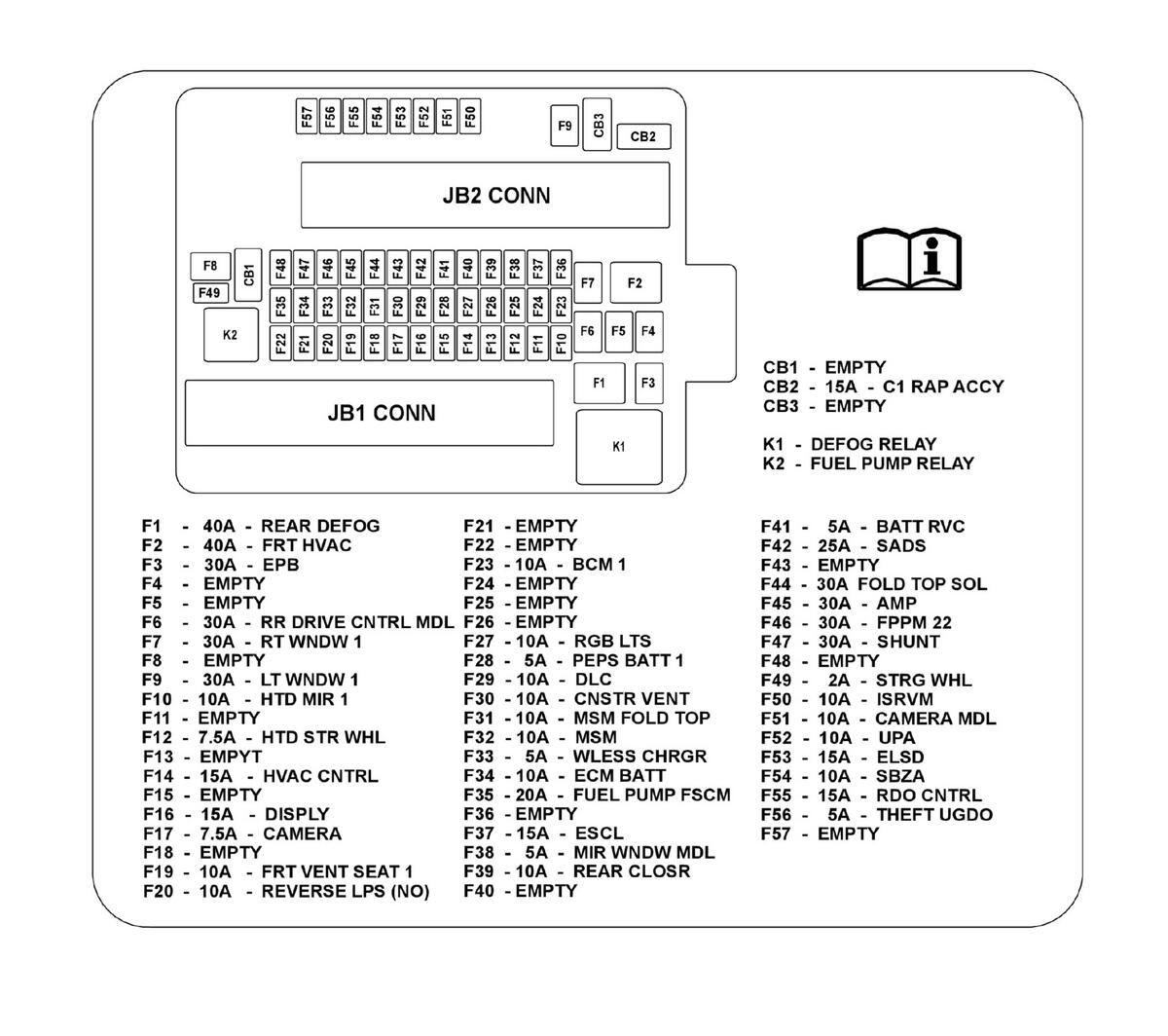

X53A Fuse Block - Rear Body Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
