Cruise Control Switch Replacement

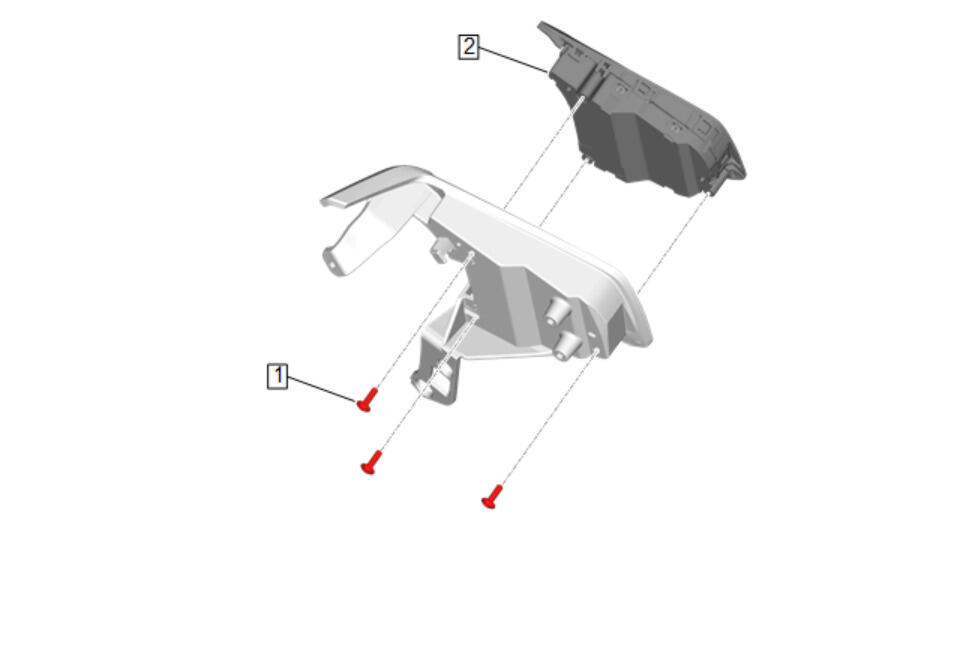

GM5360203Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Cruise Control Switch Bezel Replacement
1 Cruise Control Switch Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
1 N.m (9 lb in)
2 Cruise Control Switch
