Front Seat Adjuster Memory Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

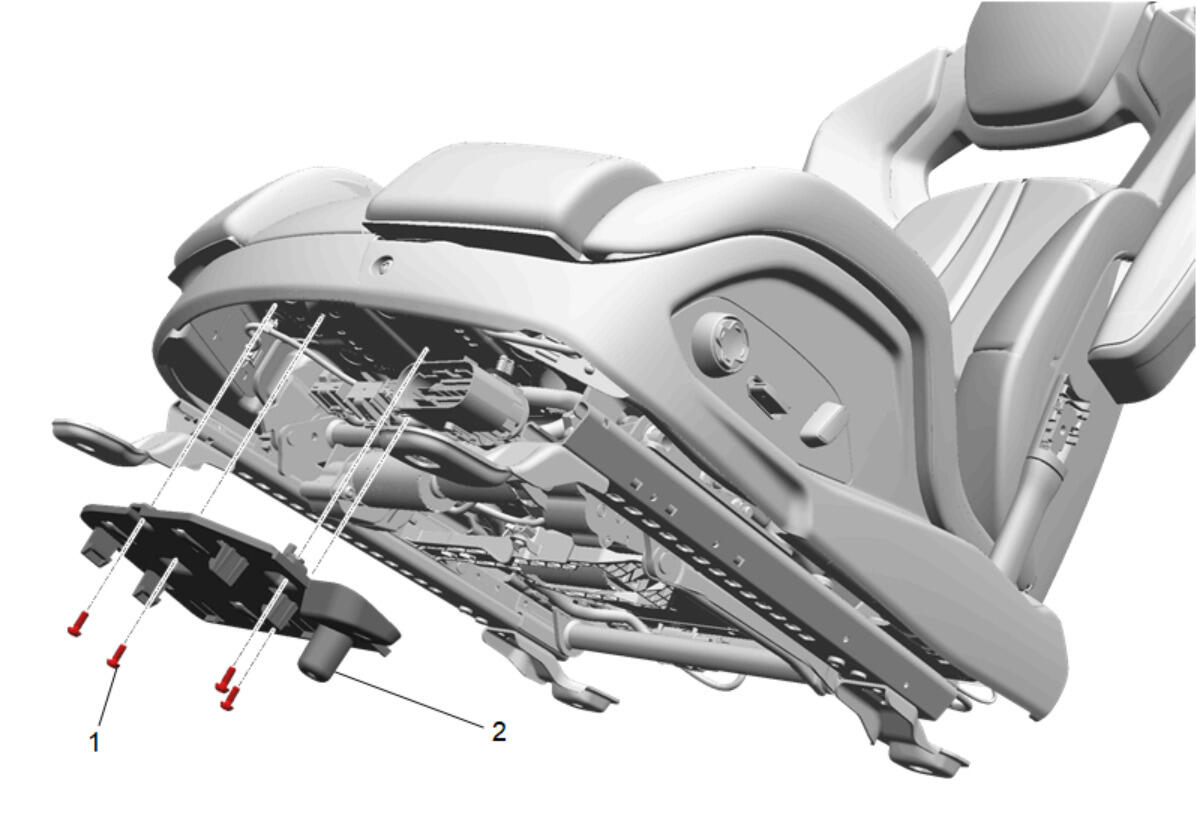

Callout	Component Name
Preliminary Procedures Driver or Passenger Seat Adjuster Memory Module Replacement { If equipped } Front Seat Heater Vent Control Module Replacement
1	Front Seat Adjuster Memory Module Bracket Fastener [4x] CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Adjuster Memory Module Bracket Fastener [4x]

CAUTION:

Tighten
2 N.m (18 lb in)

Front Seat Adjuster Memory Module Bracket
