Left Side of Passenger Compartment Components

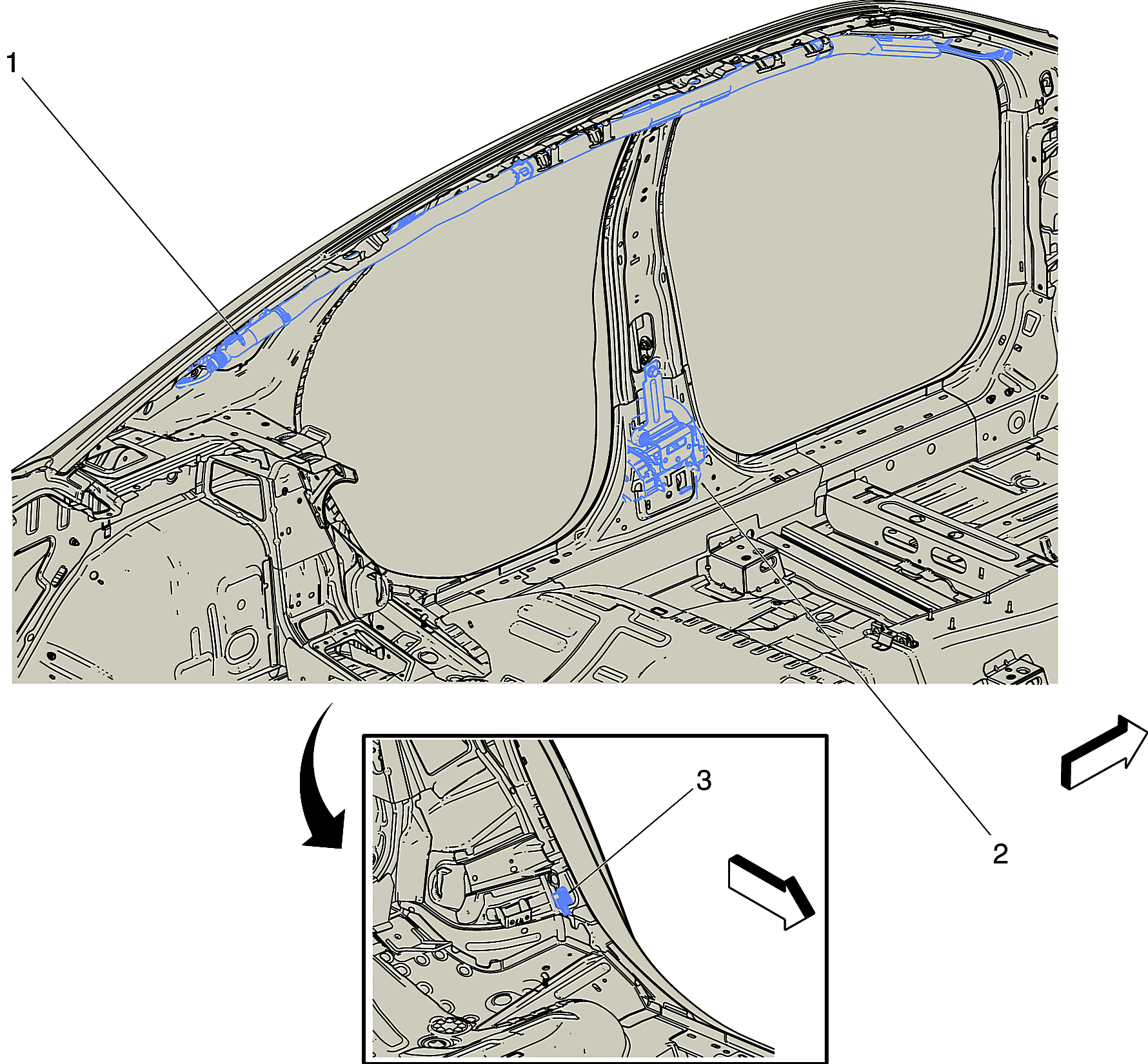

GM2913038Courtesy of GENERAL MOTORS COMPANY
Left Side of Passenger Compartment Components

Component Name Callout
F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left 1
F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver 2
B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear 3
