Battery Current Sensor Replacement

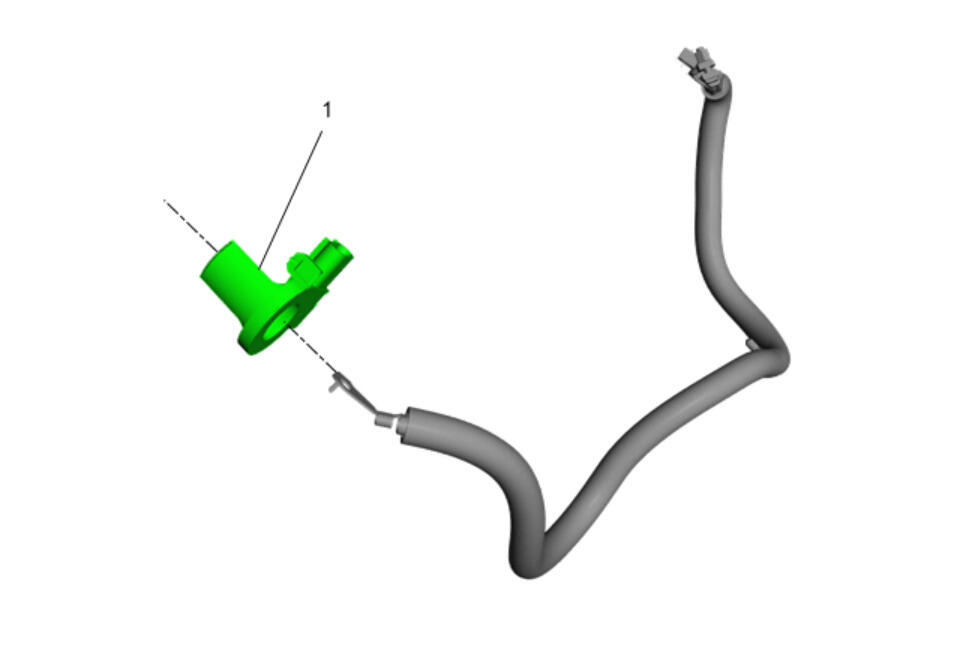

GM4231174Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Battery Negative Cable Replacement (LFV) , or Battery Negative Cable Replacement (LTG)  - Remove
1 Battery Current Sensor
NOTE:

Note the orientation of the battery current sensor prior to removal.
