Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

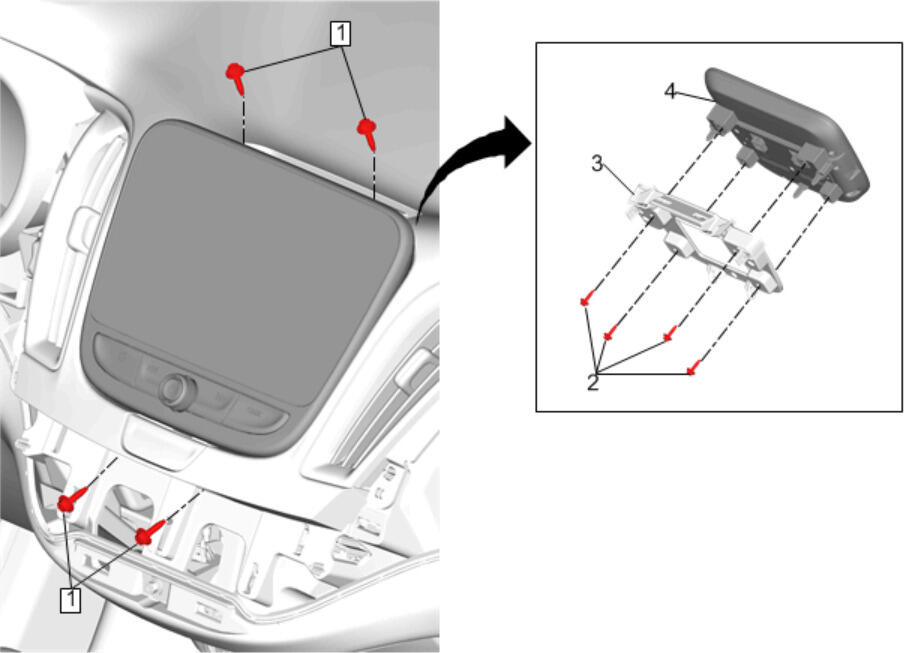

Callout	Component Name
Preliminary Procedures Instrument Panel Center Bolt Cover Replacement Heater and Air Conditioning User Interface Control Replacement (CJ2) , or Heater and Air Conditioning User Interface Control Replacement (C4P)
1	Instrument Panel Trim Plate Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Bolt [4x] Tighten 2.5 N.m (22 lb in)
3	Instrument Panel Trim Plate
4	Radio Control Assembly Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup procedures, if required.
