Liftgate Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

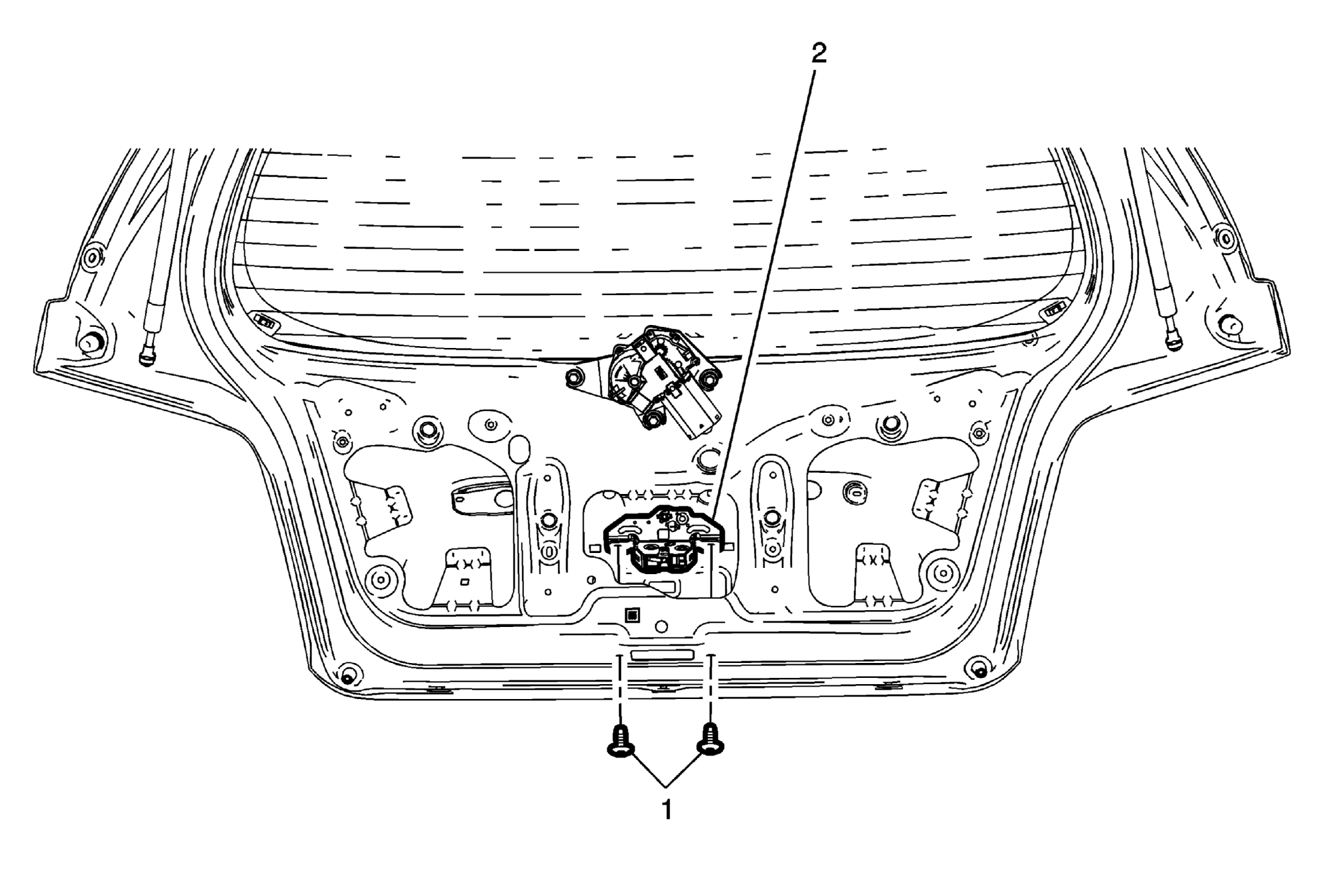

Callout	Component Name
Preliminary Procedures Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement (Hatchback) . Remove the liftgate latch cover.
1	Liftgate Latch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Assembly Procedure Disconnect the electrical connector. Adjust the liftgate if needed.

Callout

Component Name

Preliminary Procedures

Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement (Hatchback) .
Remove the liftgate latch cover.

Liftgate Latch Screw (Qty: 2)

CAUTION:

Tighten
22 N.m (16 lb ft)

Liftgate Latch Assembly

Procedure
