Low Frequency Console Antenna Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

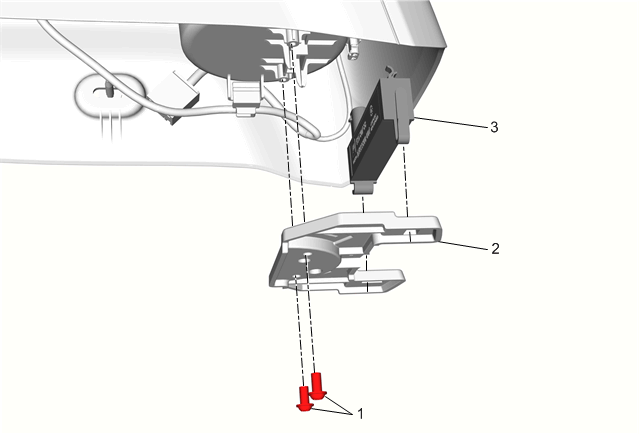

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Replacement |
|
| 1 | Low Frequency Console Antenna Screw
CAUTION:
Tighten 1.1 N.m (10 lb in) |
| 2 | Low Frequency Console Antenna Bracket |
| 3 | Low Frequency Console Antenna Procedure Disconnect the electrical connector. |
