Sunroof Module Assembly Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

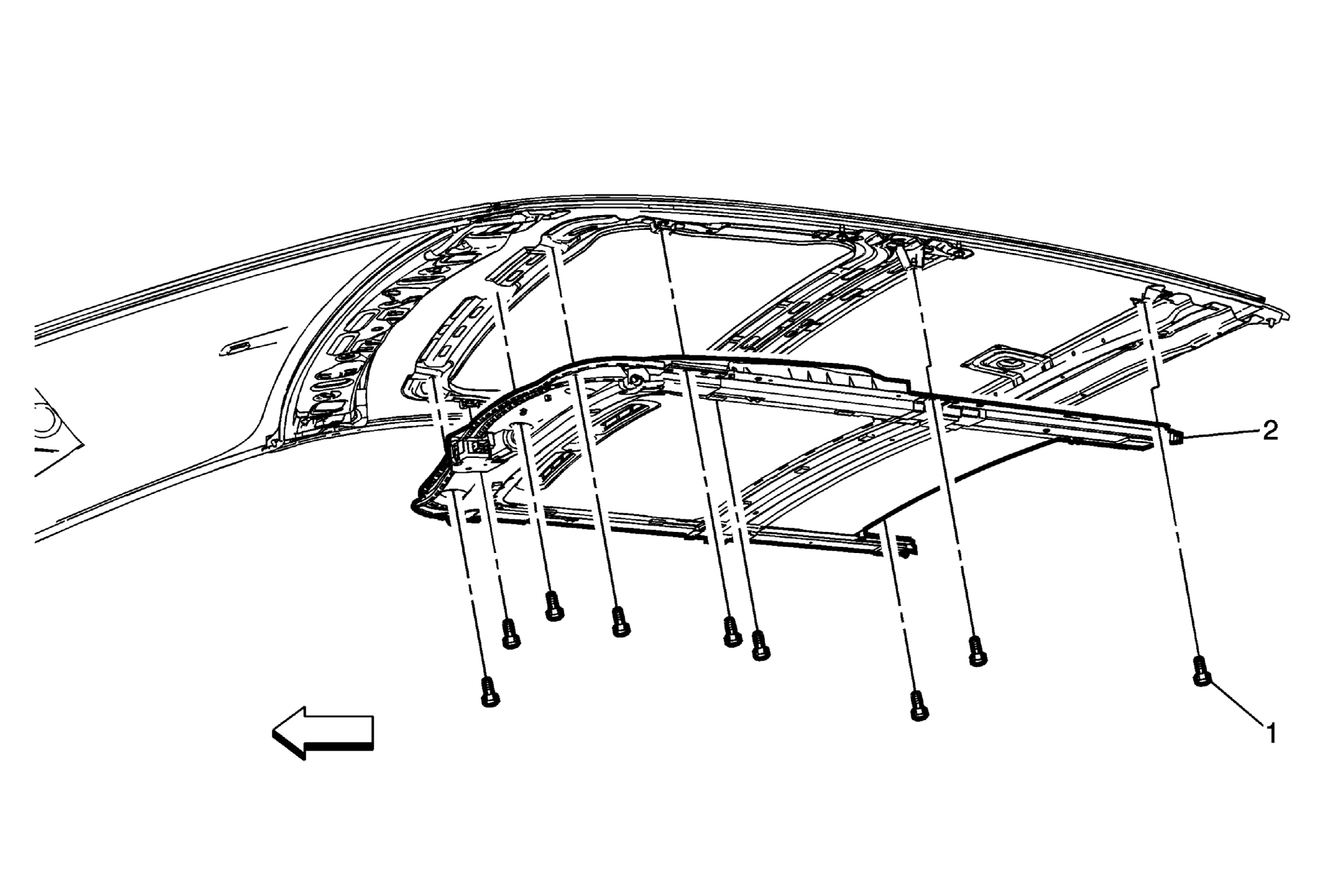

Callout	Component Name
Preliminary Procedures Remove the sunroof window. Refer to Sunroof Window Replacement . Remove the headliner. Refer to Headlining Trim Panel Replacement (Hatchback with Sunroof)Headlining Trim Panel Replacement (Hatchback without Sunroof)Headlining Trim Panel Replacement (Sedan with Sunroof)Headlining Trim Panel Replacement (Sedan without Sunroof) . Disconnect the front and rear sunroof drain hoses. Refer to Sunroof Housing Front Drain Hose Replacement , and Sunroof Housing Rear Drain Hose Replacement .
1	Sunroof Module Bolts (Qty :9) CAUTION: Refer to Fastener Caution . Procedure With an assistant, lower and remove the sunroof module assembly from the vehicle. Place the sunroof assembly on a clean dry surface. Transfer all necessary components to the new module assembly. Tighten 9 N.m (80 lb in)
2	Sunroof Module Procedure Secure the harness to the sunroof module. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment . Verify the proper operation of the sunroof before securing the headliner. Ensure the motor/actuator initialization/teach process has been done. Refer to Sunroof/Sunshade Motor Initialization .

Callout

Component Name

Preliminary Procedures

Remove the sunroof window. Refer to Sunroof Window Replacement .
Remove the headliner. Refer to Headlining Trim Panel Replacement (Hatchback with Sunroof)Headlining Trim Panel Replacement (Hatchback without Sunroof)Headlining Trim Panel Replacement (Sedan with Sunroof)Headlining Trim Panel Replacement (Sedan without Sunroof) .
Disconnect the front and rear sunroof drain hoses. Refer to Sunroof Housing Front Drain Hose Replacement , and Sunroof Housing Rear Drain Hose Replacement .

Sunroof Module Bolts (Qty :9)

CAUTION:

Refer to Fastener Caution .

Procedure

With an assistant, lower and remove the sunroof module assembly from the vehicle.
Place the sunroof assembly on a clean dry surface.
Transfer all necessary components to the new module assembly.

Tighten
9 N.m (80 lb in)

Sunroof Module

Procedure

Secure the harness to the sunroof module.
Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment .
Verify the proper operation of the sunroof before securing the headliner.
Ensure the motor/actuator initialization/teach process has been done. Refer to Sunroof/Sunshade Motor Initialization .
