X50D Fuse Block - Battery Top View

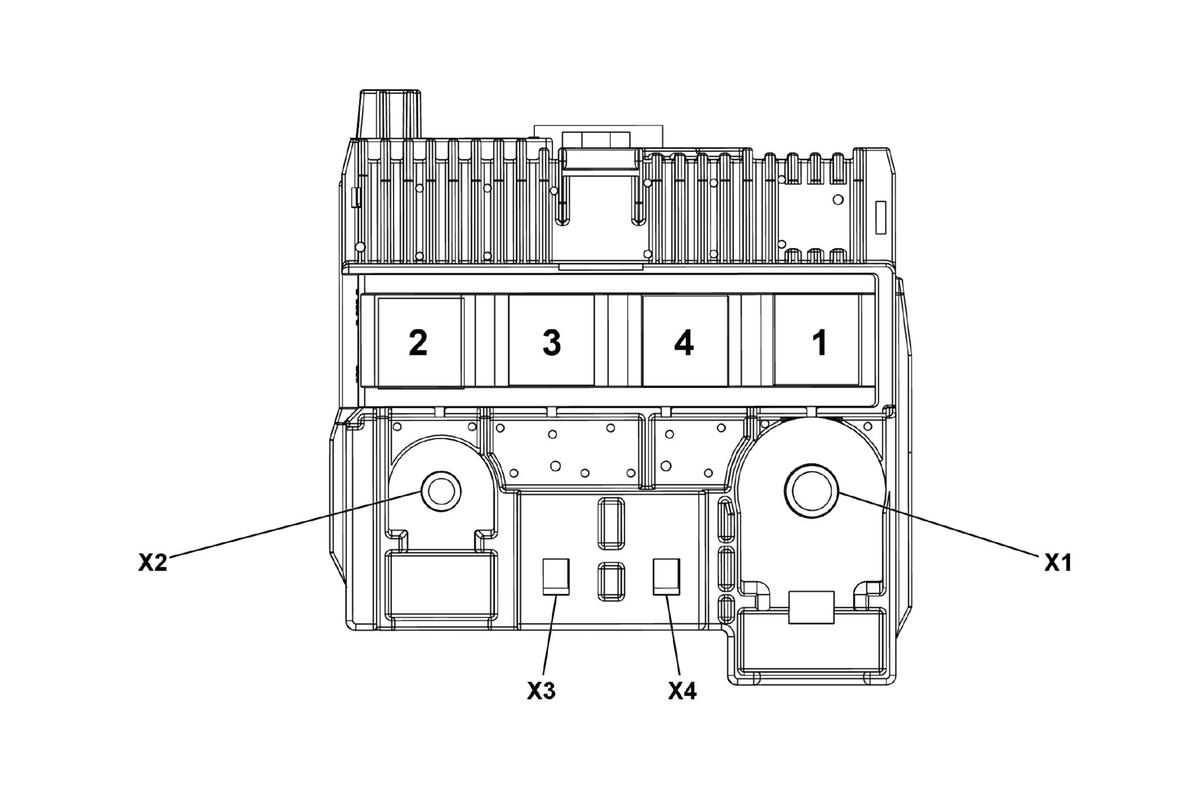

GM5201864Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
Fuses
F1 - F1UD 400 A
  • G13 Generator
  • M64 Starter Motor
F2 - F2UD 150 A
  • X50A Fuse Block - Underhood
F3 - F3UD 100 A
  • X51A Fuse Block - Instrument Panel
F4 - F4UD 80 A
  • K43 Power Steering Control Module
