Bottom of Center Console Components

GM5129177Courtesy of GENERAL MOTORS COMPANY

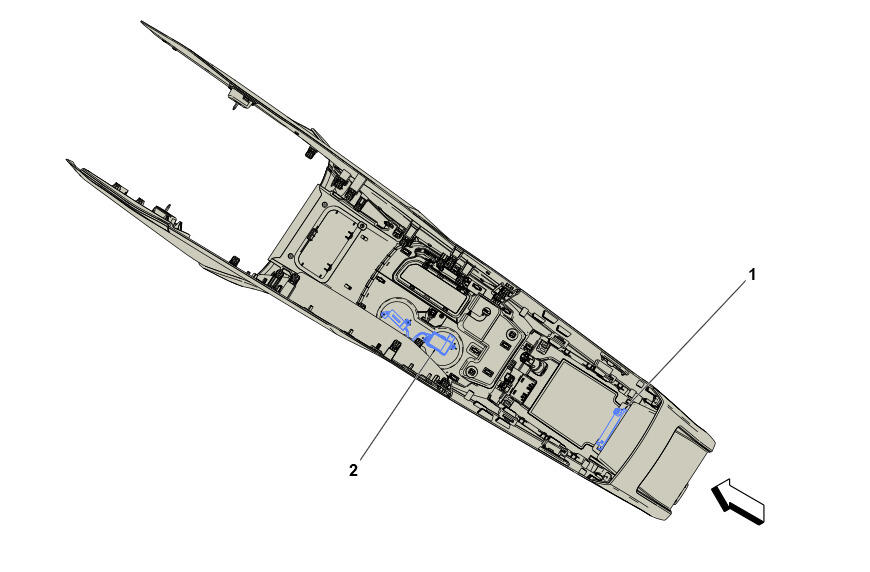

Bottom of Center Console Components

Component Name Callout
T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear 1
K89 Immobilizer Control Module K89 Immobilizer Control Module 2
