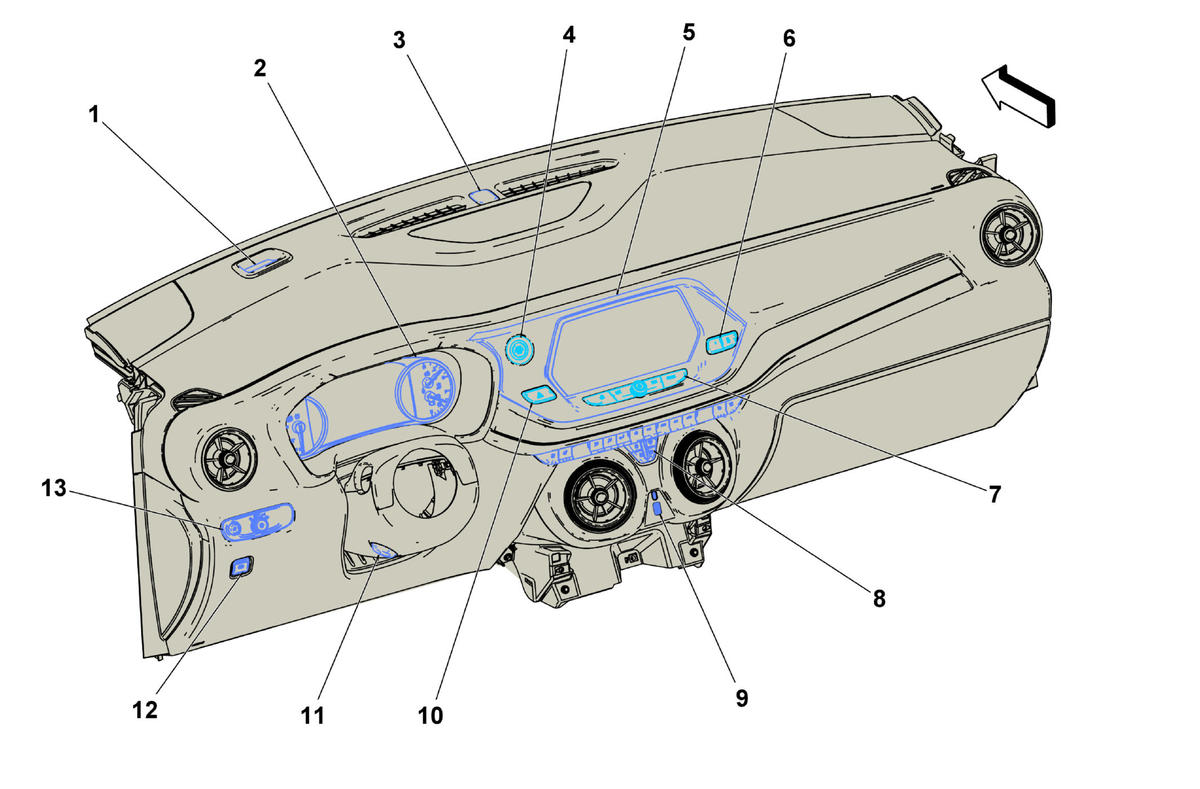

Front of Instrument Panel Components
Front of Instrument Panel Components
| Component Name | Callout |
|---|---|
| P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators (UEU) | 1 |
| P16 Instrument Cluster P16 Instrument Cluster | 2 |
| B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor | 3 |
| S38 Ignition Mode Switch S38 Ignition Mode Switch | 4 |
| P17 Info Display Module P17 Info Display Module X1 , or P17 Info Display Module X2 | 5 |
| S86 Vehicle Stability Control Switch S86 Vehicle Stability Control Switch | 6 |
| A22 Radio Controls | 7 |
| A26 HVAC Controls A26 HVAC Controls | 8 |
| X92 USB Receptacle X92 USB Receptacle X1 , or X92 USB Receptacle X2 , or X92 USB Receptacle X3 (IOU) | 9 |
| S26 Hazard Warning Switch S26 Hazard Warning Switch | 10 |
| S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch (N38) | 11 |
| S91 Park Brake Control Switch S91 Park Brake Control Switch | 12 |
| S30 Headlamp Switch S30 Headlamp Switch | 13 |
