Steering Column Components
Steering Column Components

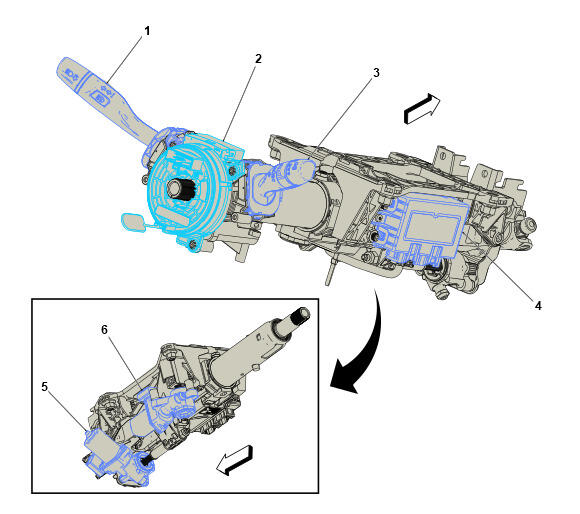

| Component Name | Callout |
|---|---|
| S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch | 1 |
| X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2 | 2 |
| S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch | 3 |
| K99 Steering Column Position Control Module (N38) K99 Steering Column Position Control Module X1 (N38) , or K99 Steering Column Position Control Module X2 (N38) | 4 |
| M65 Steering Column Telescope Motor (N38) M65 Steering Column Telescope Motor (N38) | 5 |
| M68 Steering Column Tilt Motor (N38) M68 Steering Column Tilt Motor (N38) | 6 |
