Wireless Charging System Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

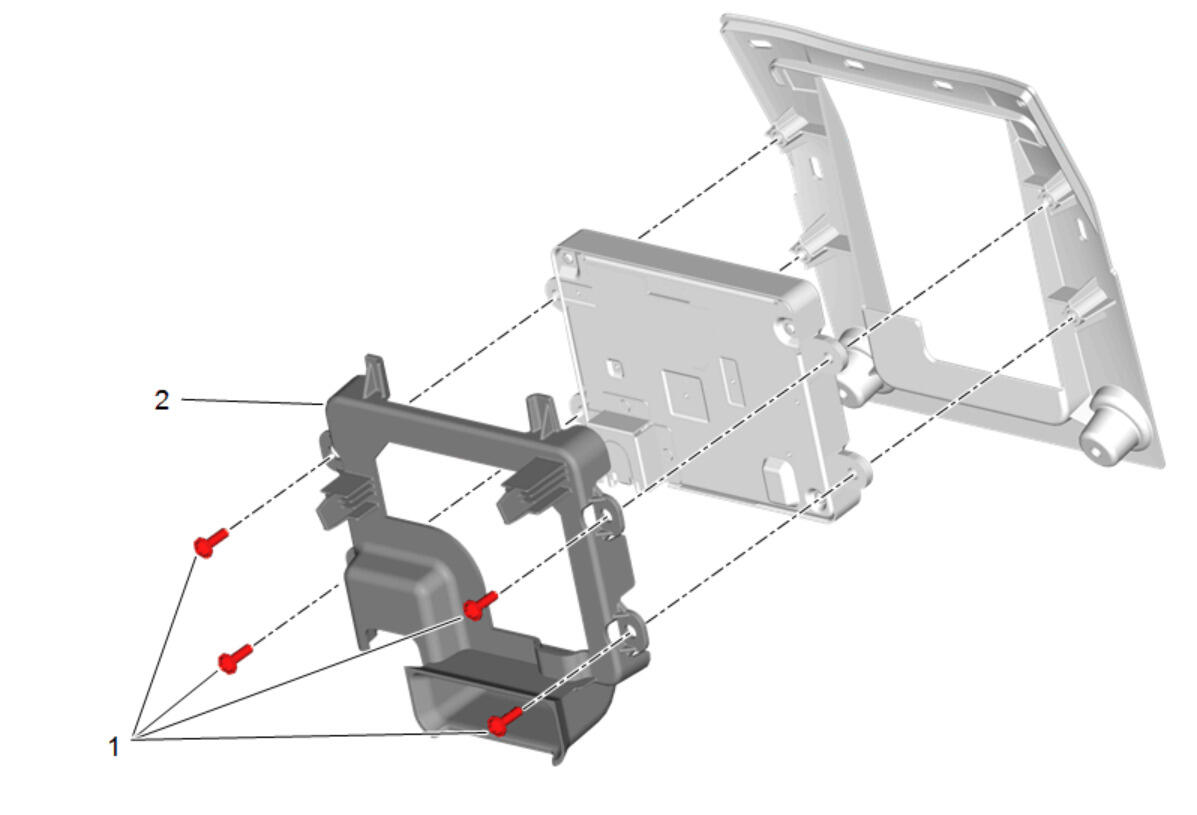

Callout	Component Name
Preliminary Procedure  Front Floor Console Housing Replacement
1	Wireless Charging System Module Bolt [4x] CAUTION: Fastener Caution Tighten  0.75 N.m (7 lb in)
2	Wireless Charging System Module Bracket
