Active Safety Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

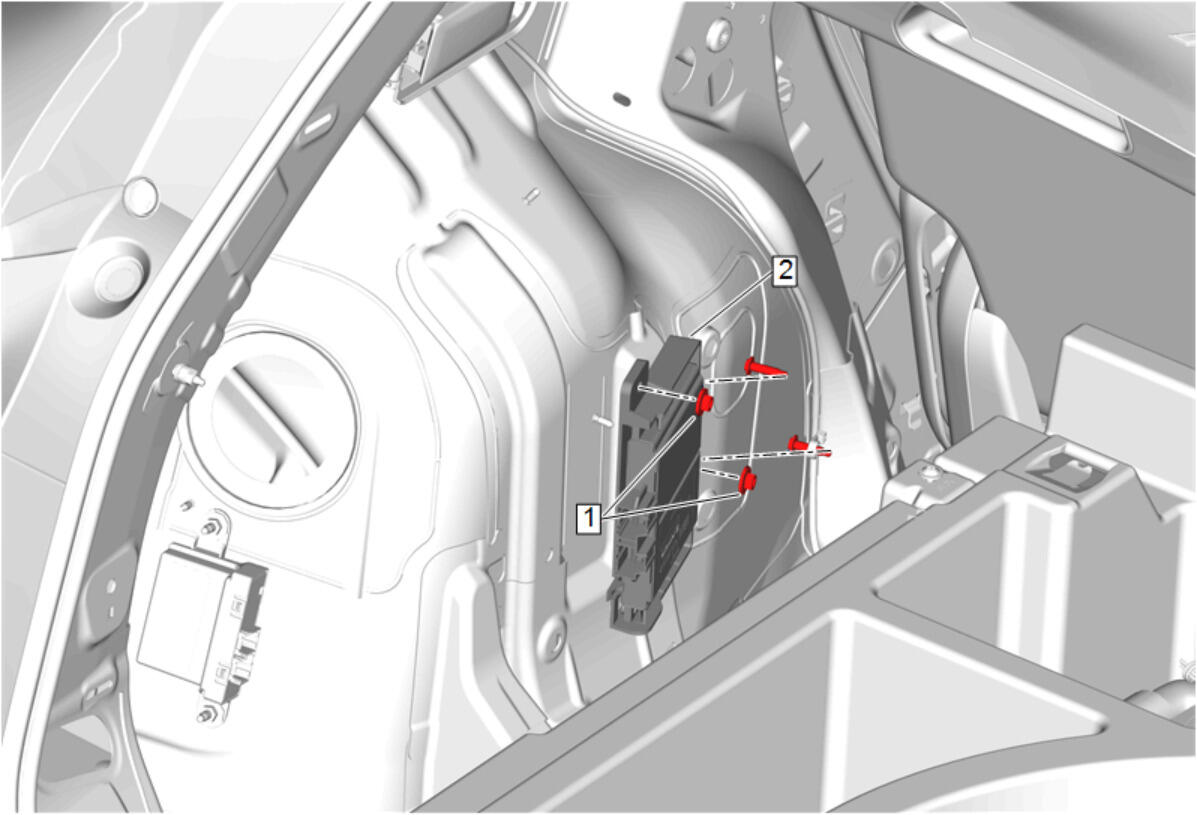

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement - Left Side
1	Active Safety Control Module Bracket Nut [2x] CAUTION: Fastener Caution Procedure Reposition the wiring harness. Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Active Safety Control Module Bracket Nut [2x]

CAUTION:

Procedure
Reposition the wiring harness.
Tighten
9 N.m (80 lb in)

Active Safety Control Module Bracket

Procedure
