Liftgate Side Sensor Replacement - Right Side

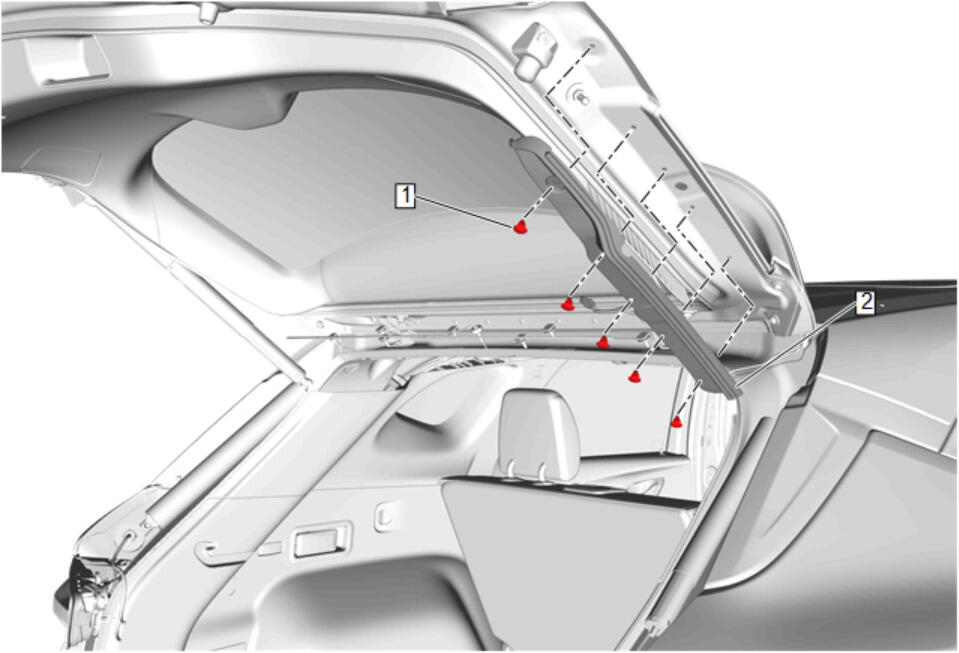

GM5138883Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Liftgate Strut Replacement
1 Liftgate Side Sensor Retainer [5x]
2 Liftgate Side Sensor
Procedure
Disconnect the electrical connector.
