Air Cleaner Assembly Replacement

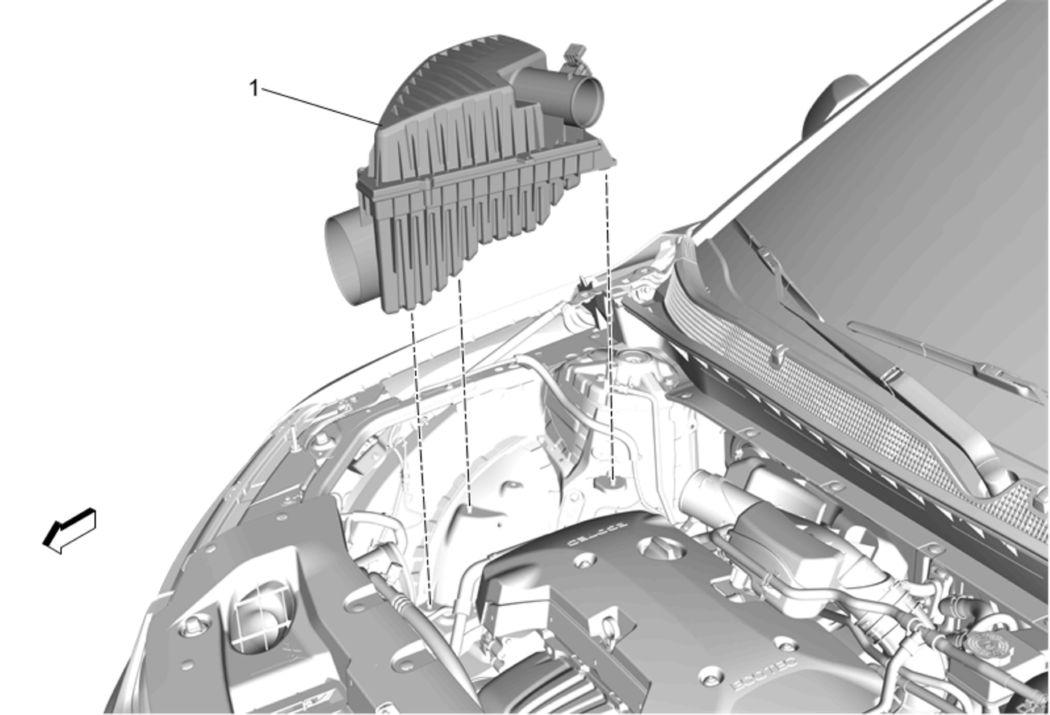

GM5144449Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Front Duct Replacement
  2. Disconnect the electrical connector and remove wiring harness retainer from air cleaner assembly.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
