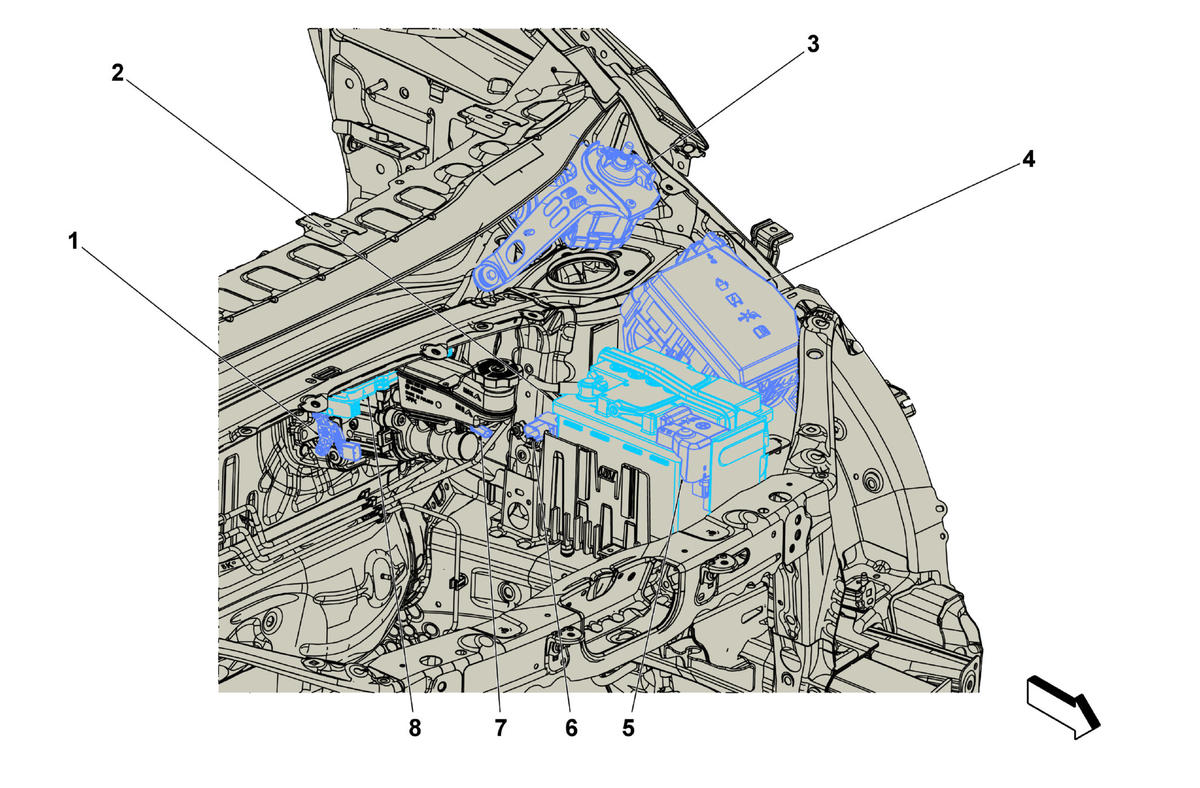

Left Side Engine Compartment
Left Side Engine Compartment
| Harness Name | Callout |
|---|---|
| B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor | 1 |
| C1 Battery C1 Battery ((-) Battery) , or C1 Battery ((-) Body) | 2 |
| M75L Windshield Wiper Motor Module - Left M75L Windshield Wiper Motor Module - Left | 3 |
| X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 | 4 |
| X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X3 , or X50D Fuse Block - Battery X4 | 5 |
| B18 Battery Current Sensor B18 Battery Current Sensor | 6 |
| B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch | 7 |
| K177 Brake Booster Control Module K177 Brake Booster Control Module | 8 |
