Right Side Engine Compartment

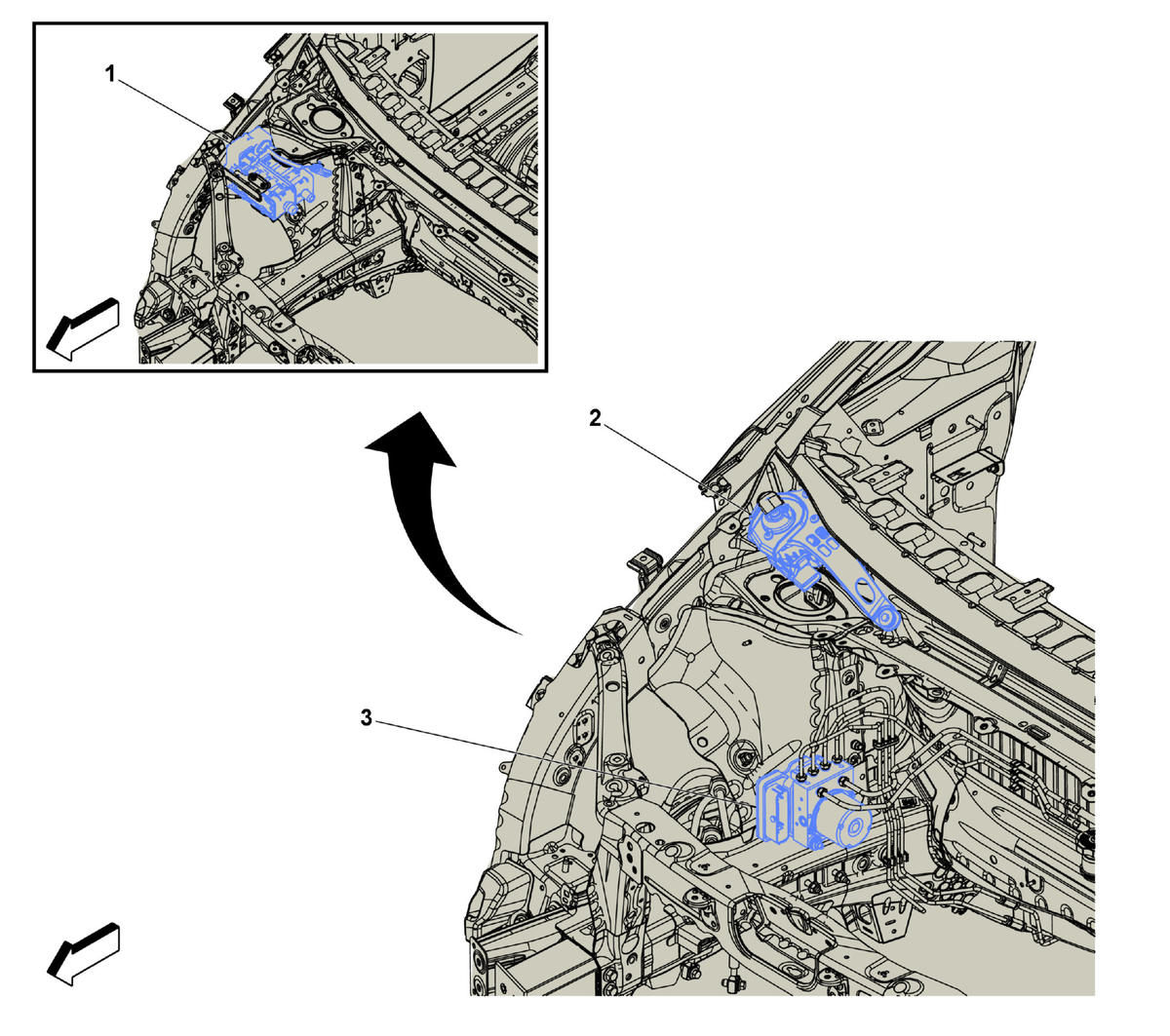

GM4531098Courtesy of GENERAL MOTORS COMPANY
Right Side Engine Compartment

Harness Name Callout
K10 Coolant Heater Control Module K10 Coolant Heater Control Module X1 , or K10 Coolant Heater Control Module X2 1
M75R Windshield Wiper Motor Module - Right M75R Windshield Wiper Motor Module - Right 2
K17 Electronic Brake Control Module K17 Electronic Brake Control Module 3
