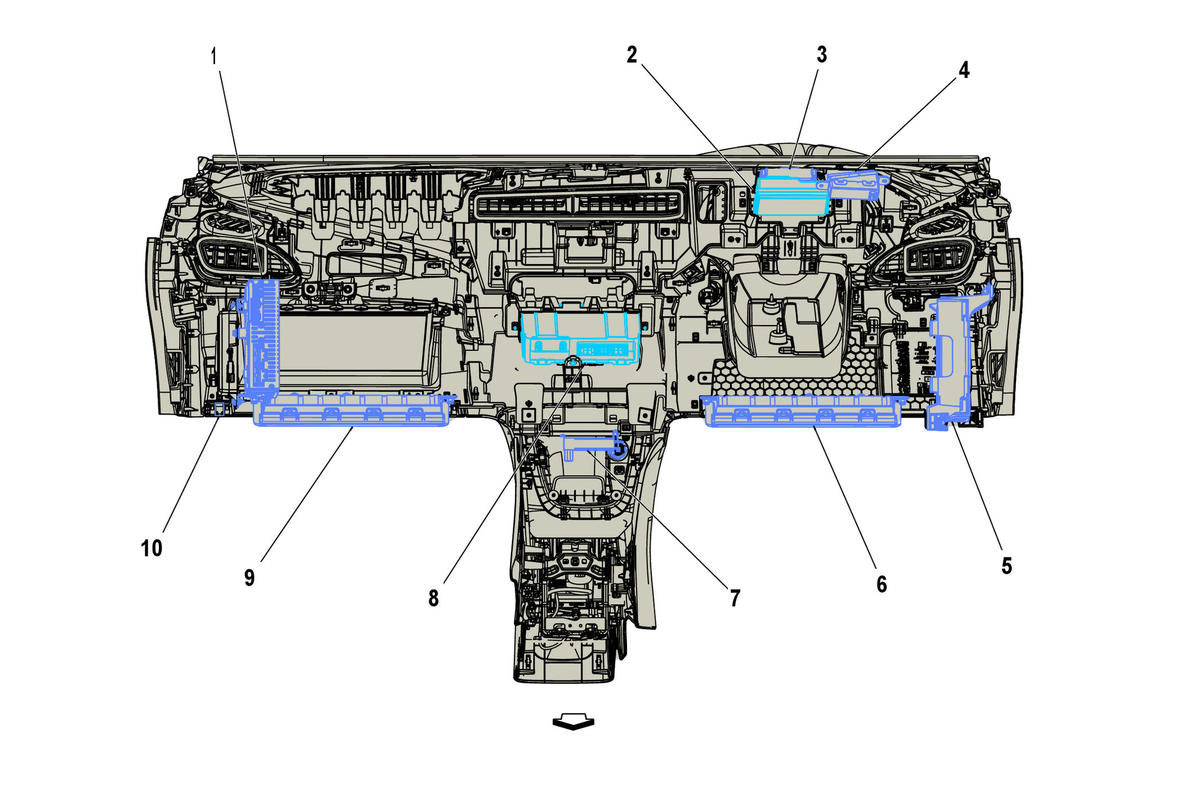

Rear of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
A11 Radio A11 Radio X1 , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X4 () , or A11 Radio X5 (-MAH) , or A11 Radio X5 (MAH) , or A11 Radio X6 , or A11 Radio X9	1
K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1 , or K84 Keyless Entry Control Module X2	2
K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2	3
P43 Collision Alert Indicators P43 Collision Alert Indicators (UEU/UHX/UHY)	4
K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7	5
F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver (AYF/AYG)	6
T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front	7
K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 (UE1) , or K73 Telematics Communication Interface Control Module X2 (UE1) , or K73 Telematics Communication Interface Control Module X3 (UE1)	8
F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger (AYF/AYG)	9
