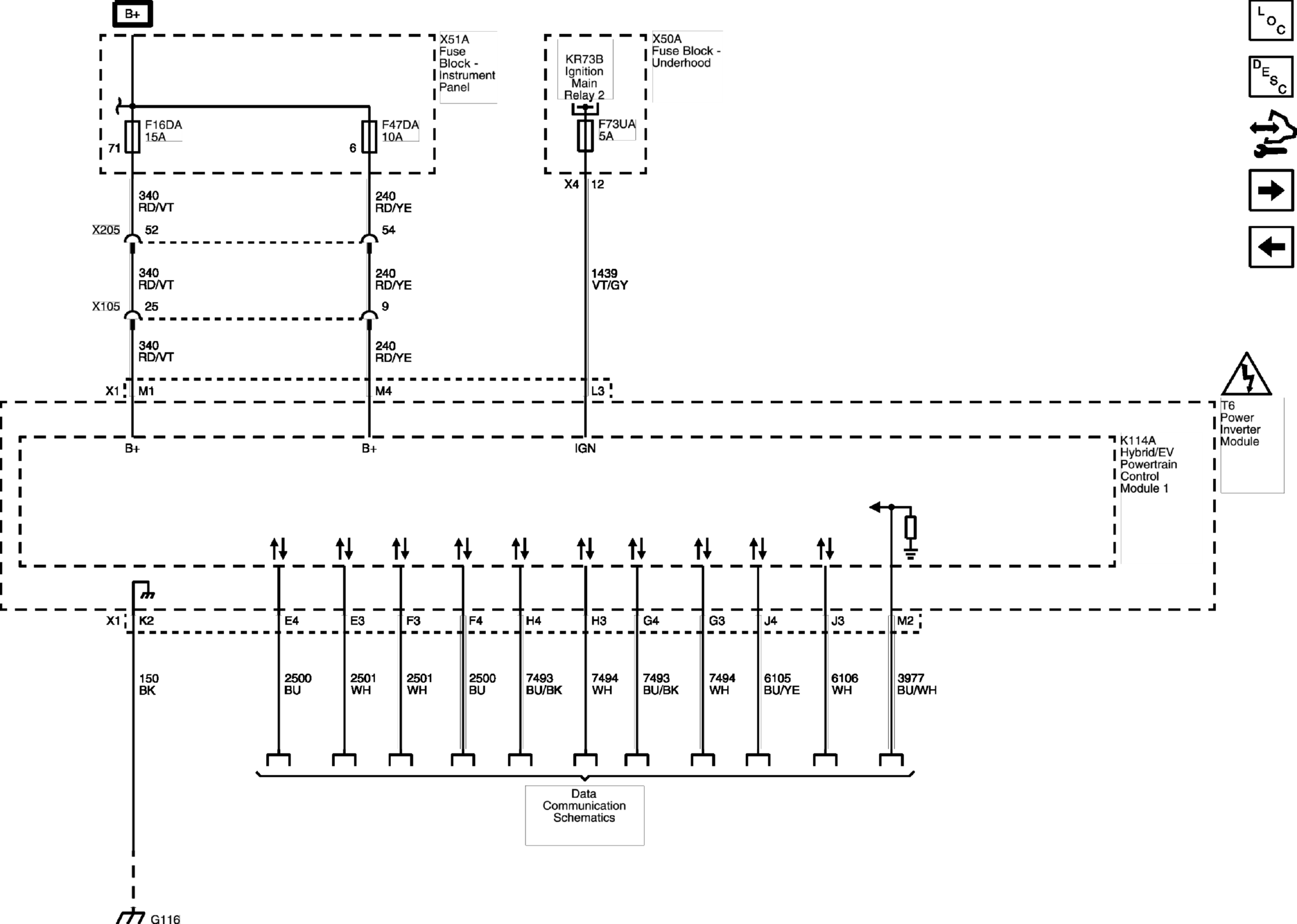

Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground, and Data Communication

WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.
