UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 2

WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

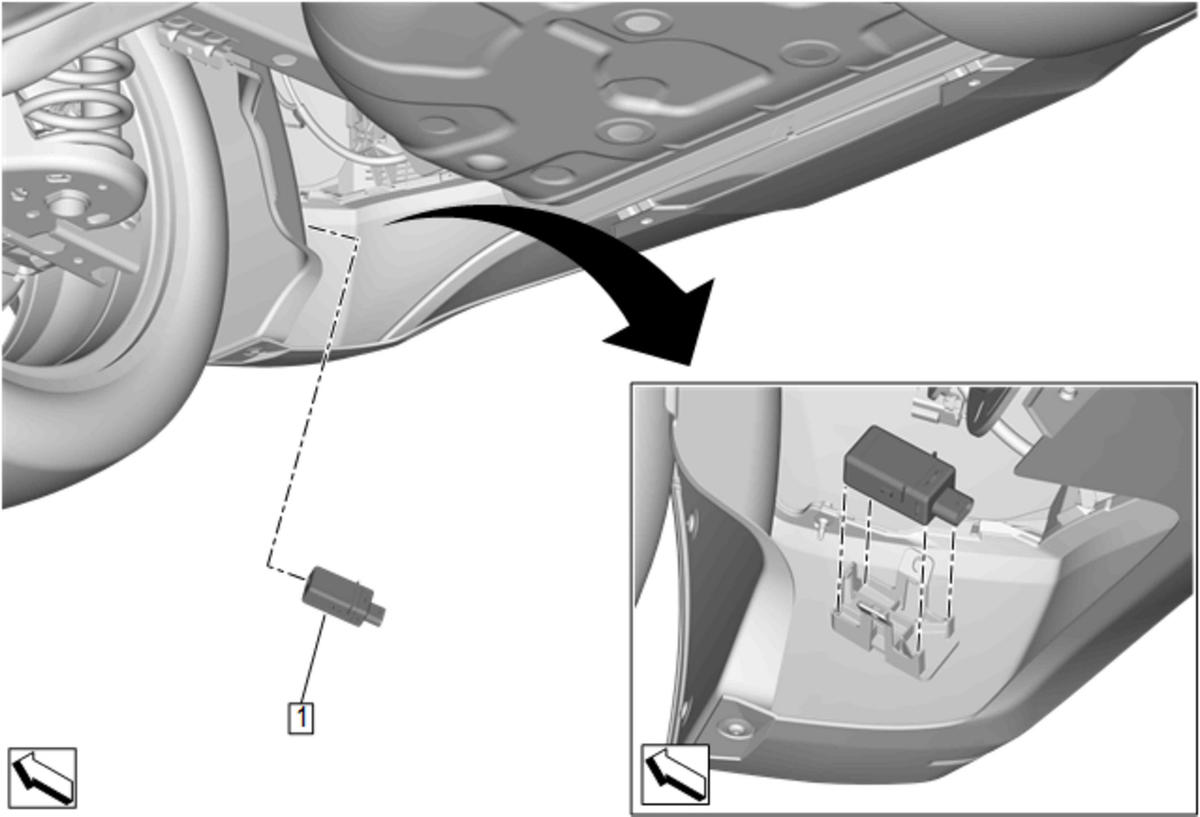

GM5133896Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle
1 UHF Low Energy Remote Control Access Sensor Transceiver - Position 2

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
  3. Lower the vehicle.
