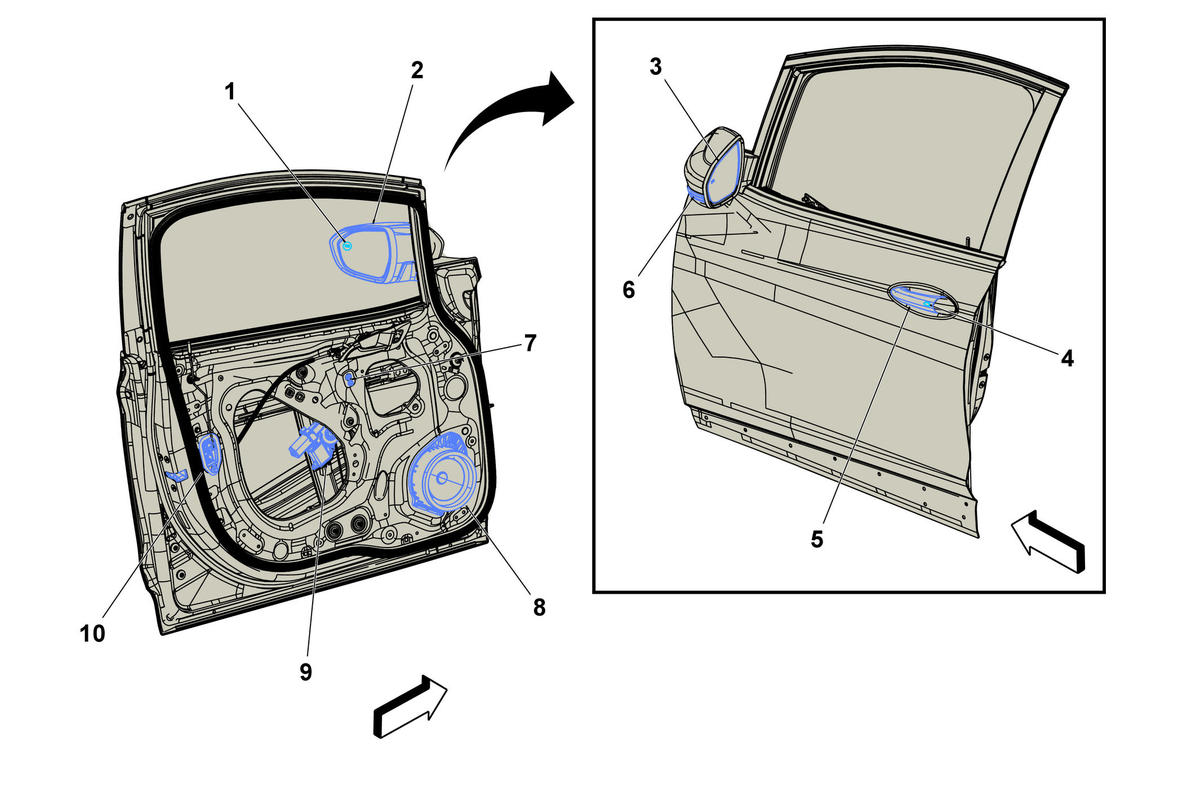

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| P34D Side Object Detection Indicator - Driver | 1 |
| A9A Outside Rearview Mirror - Driver | 2 |
| E17D Outside Rearview Mirror Glass - Driver | 3 |
| B27D Door Handle Switch - Driver Exterior | 4 |
| A24D Door Handle Assembly - Driver Exterior A24D Door Handle Assembly - Driver Exterior | 5 |
| E4Y Turn Signal Repeater Lamp - Left | 6 |
| B63LF Side Impact Sensor - Left Front (AYF/AYG) B63LF Side Impact Sensor - Left Front (AYF) | 7 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQ3) , or P19AG Speaker - Left Front Door (UQA) | 8 |
| M74D Window Motor - Driver M74D Window Motor - Driver | 9 |
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver | 10 |
