Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

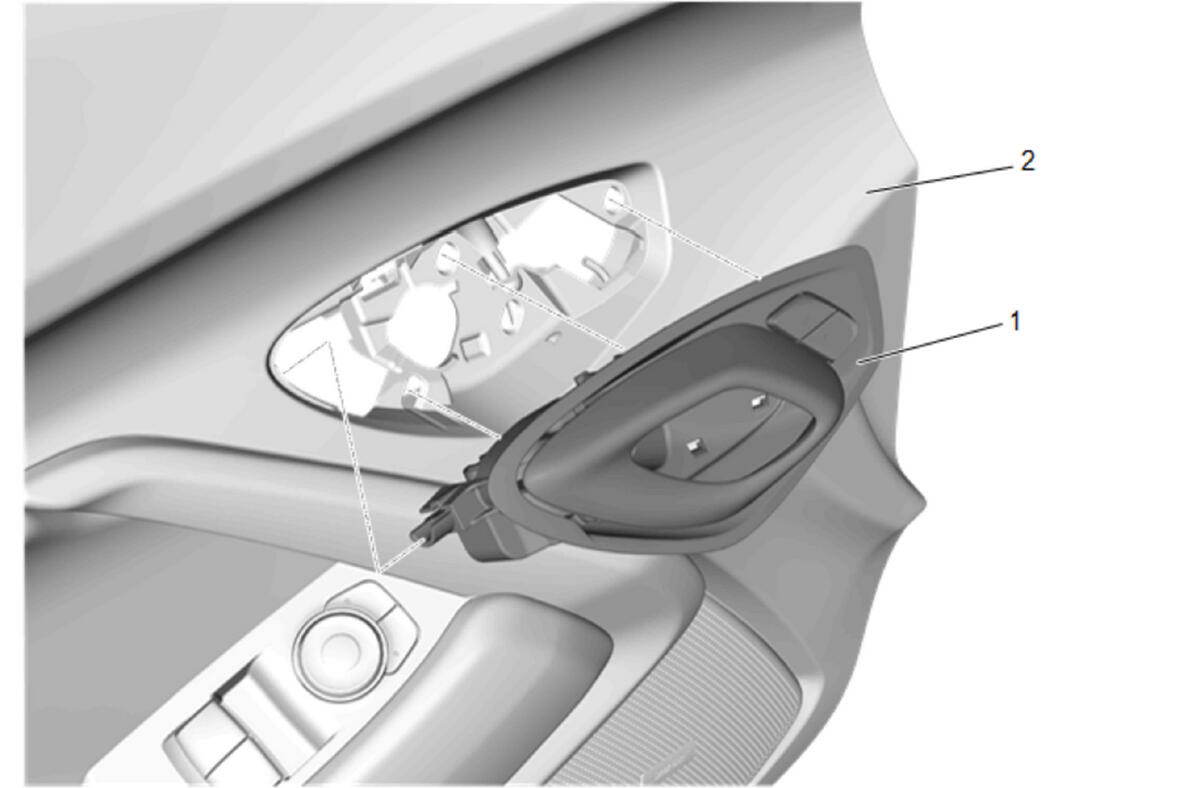

Align the front side door inside handle (1) to the front side door trim (2).
With the aid of a second person, support the front side door inside handle (1) in position.
Courtesy of GENERAL MOTORS COMPANY

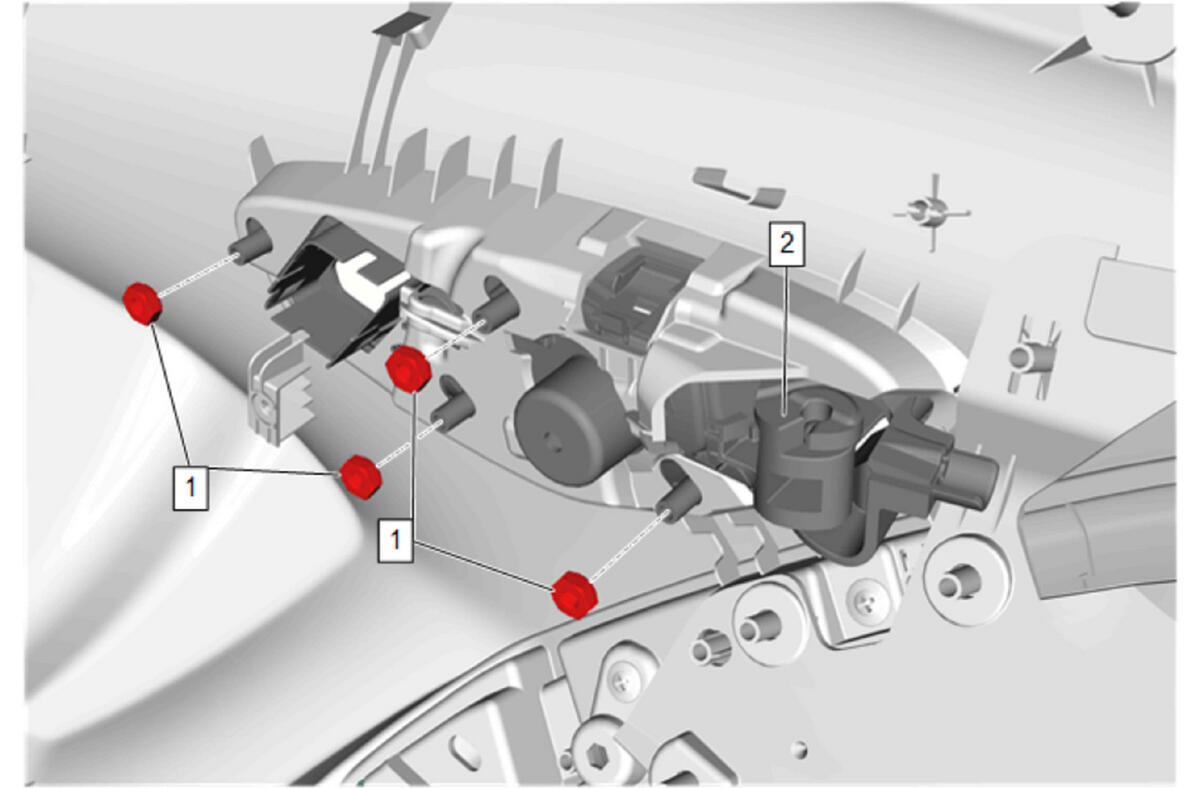

NOTE:
Do not over tighten the nuts.

Stamp Nut (1) - Install and hand tighten [4x]
Verify the fit of the front side door inside handle (2) to the trim.
Courtesy of GENERAL MOTORS COMPANY

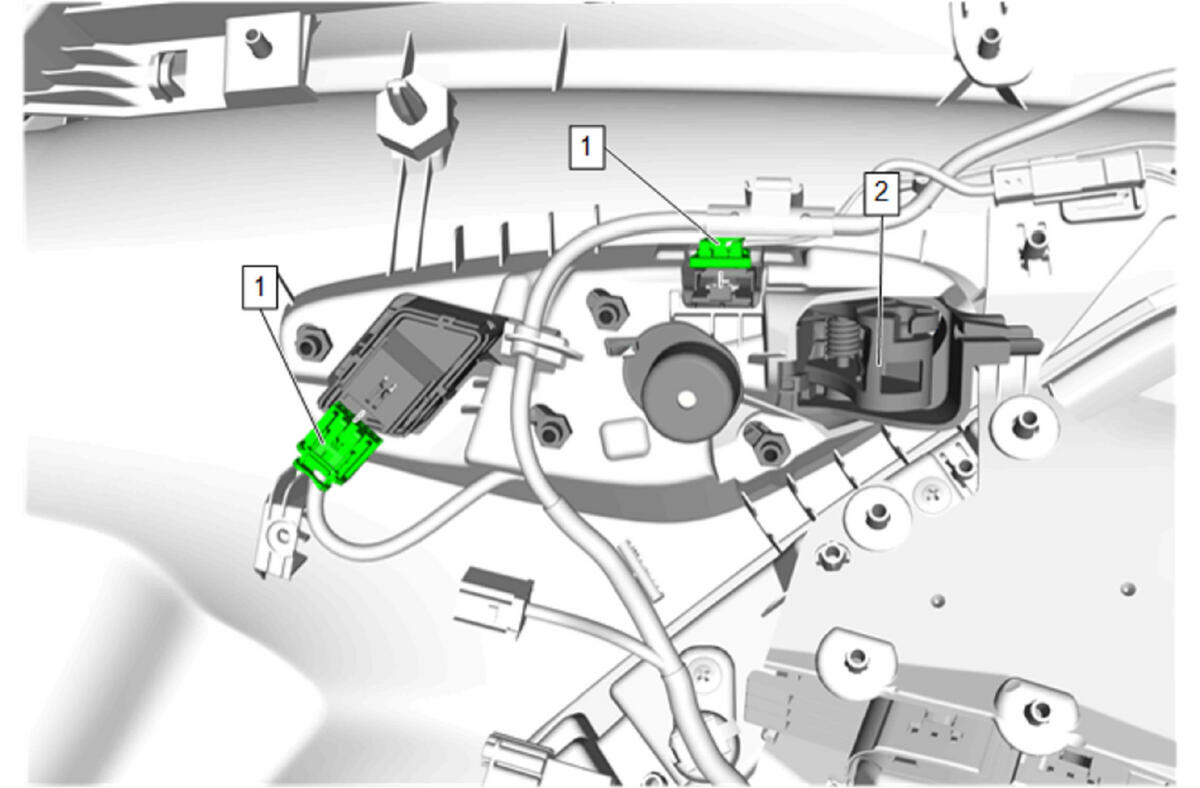

Carefully install the electrical connectors (1) to the front side door inside handle (2).
Courtesy of GENERAL MOTORS COMPANY

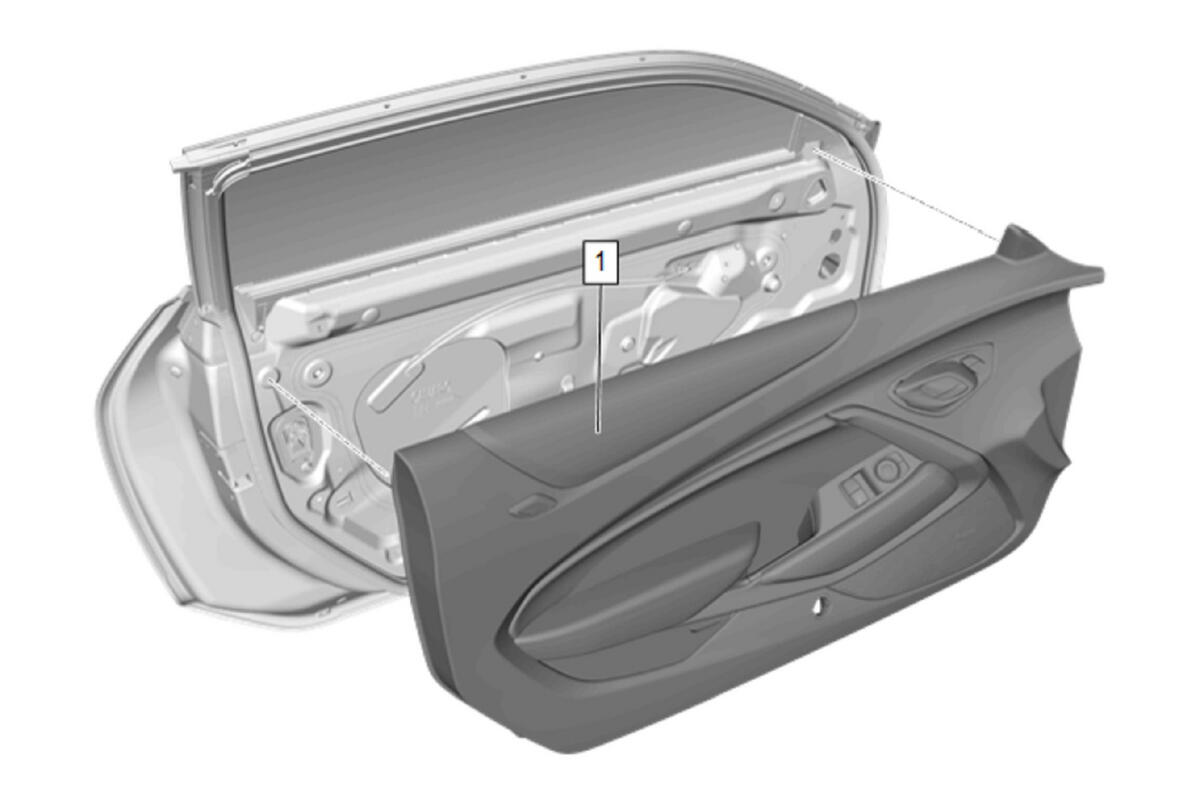

Front Side Door Trim (1) - Install - Front Side Door Trim Replacement
