Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

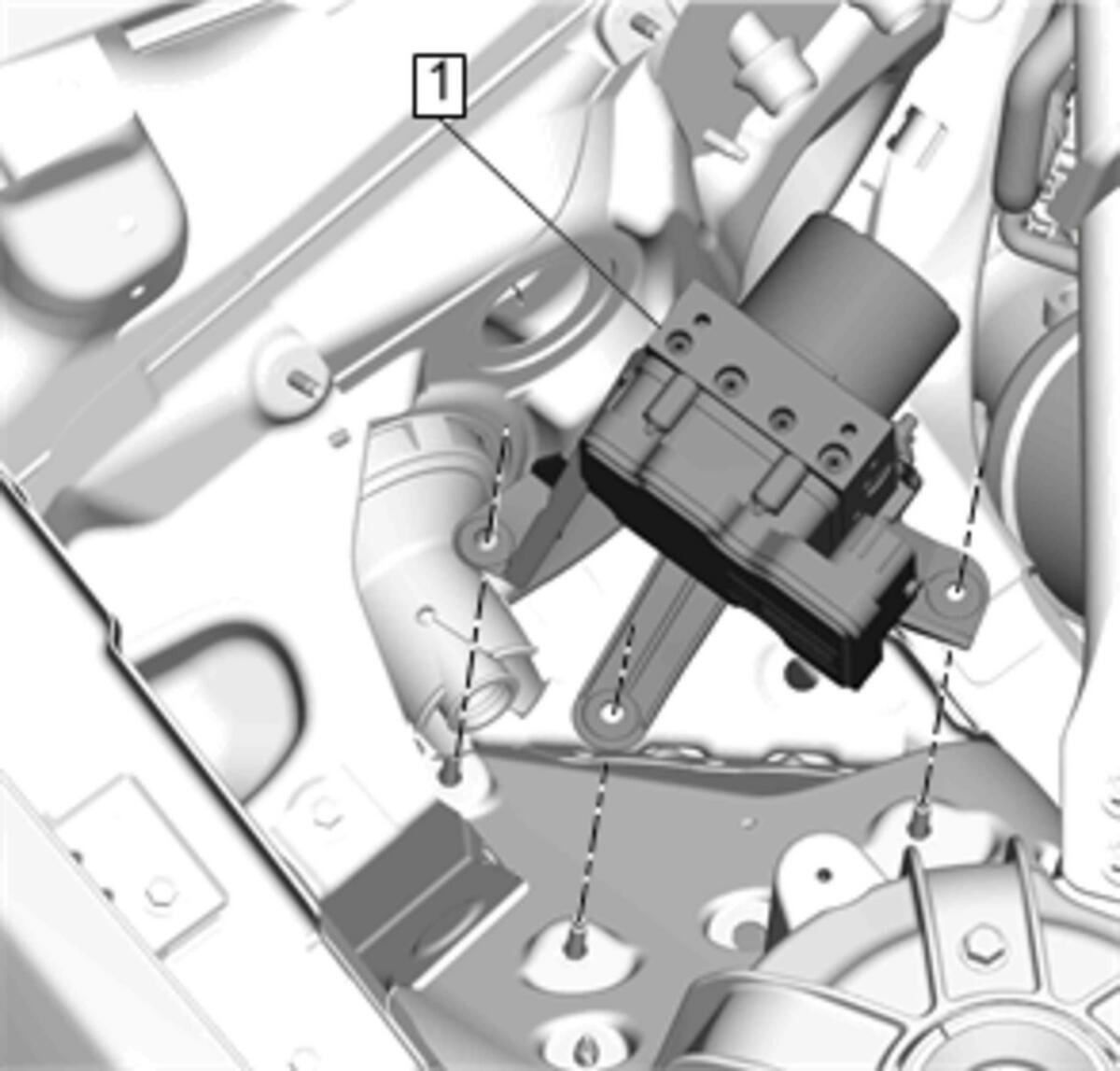

Brake Pressure Modulator Valve Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

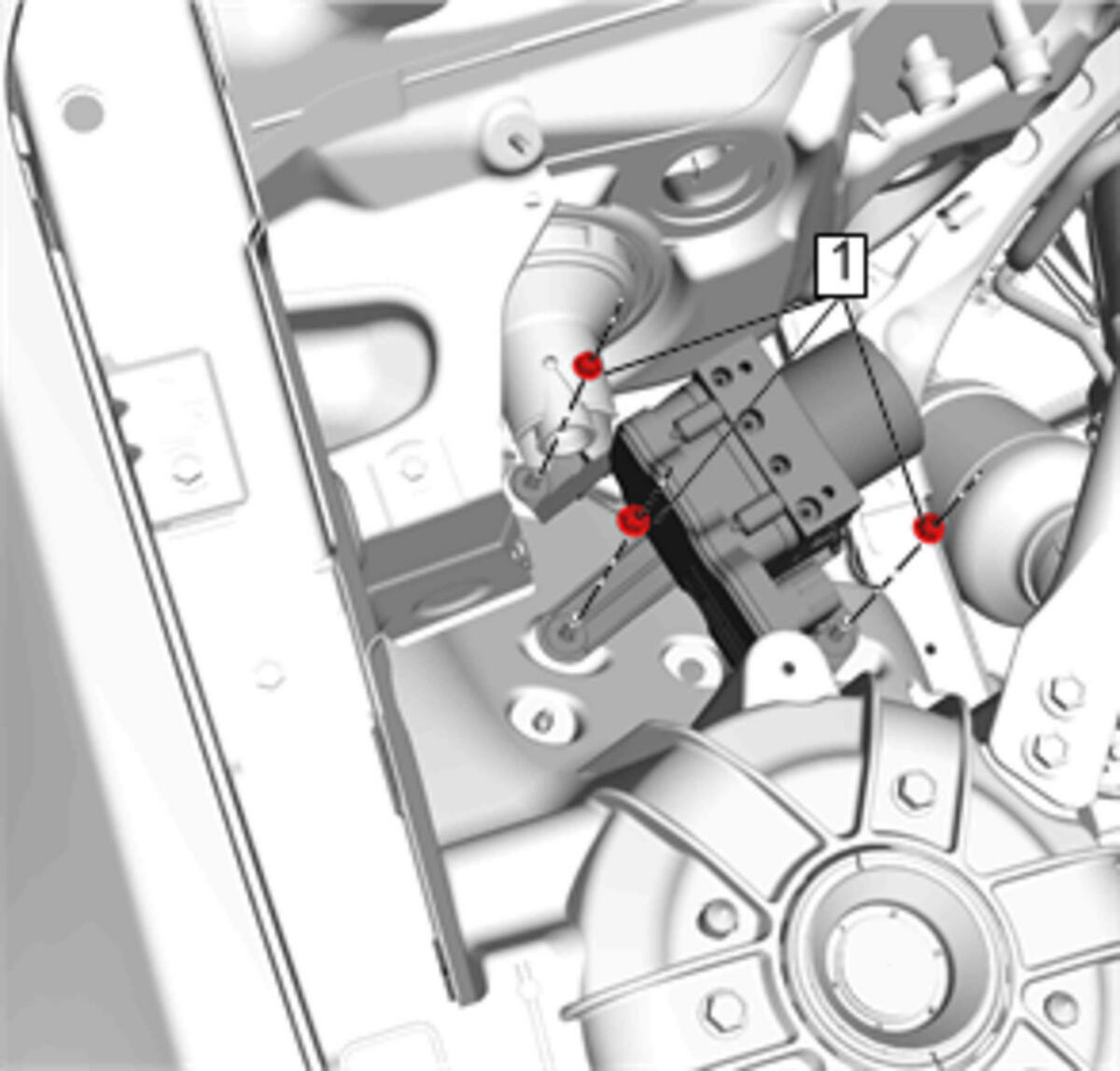

Brake Pressure Modulator Valve Bracket Nut (1) - Install and tighten 7 N.m (62 lb in) [3x]
Courtesy of GENERAL MOTORS COMPANY

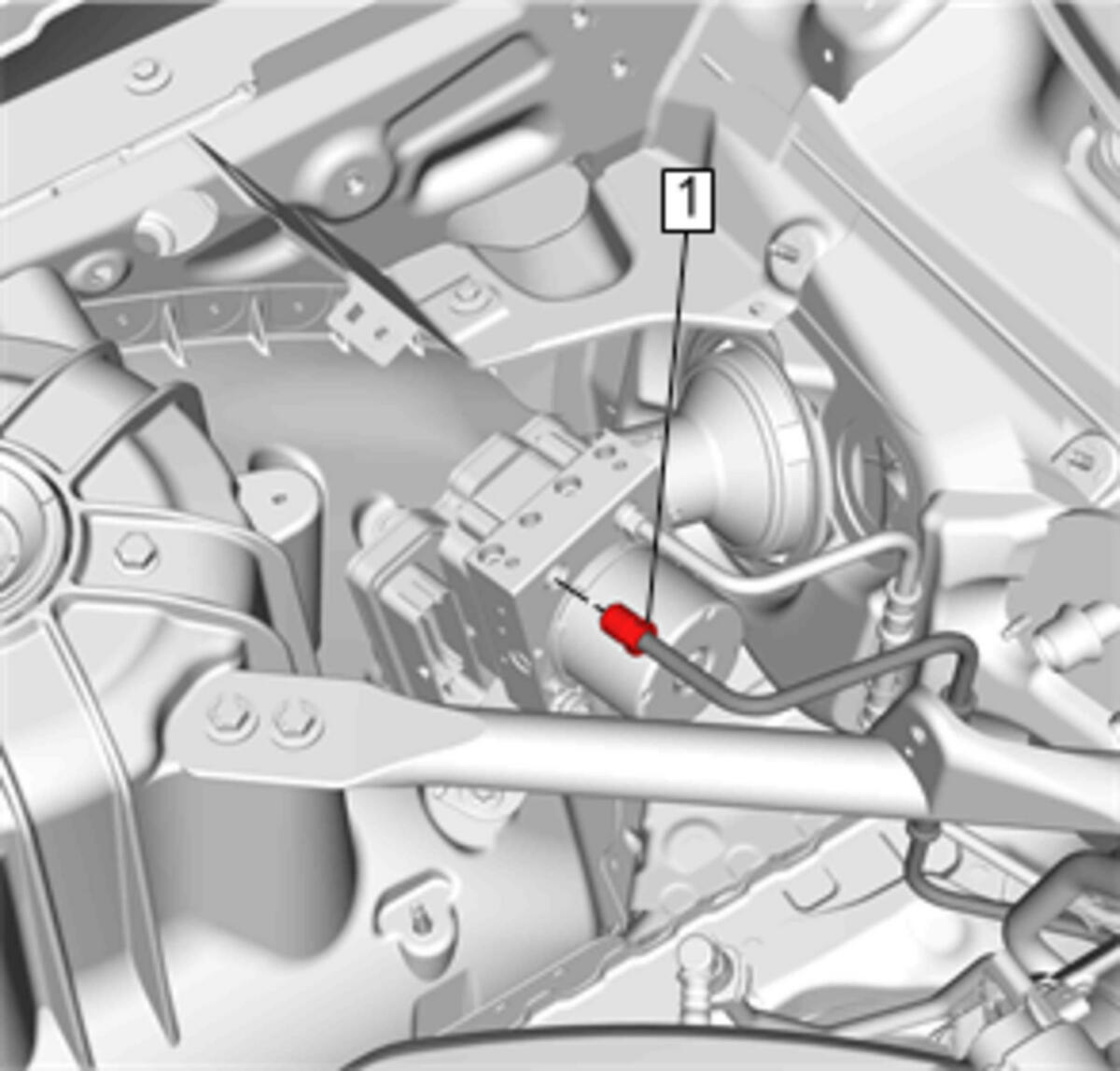

Brake Pressure Modulator Valve Primary Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

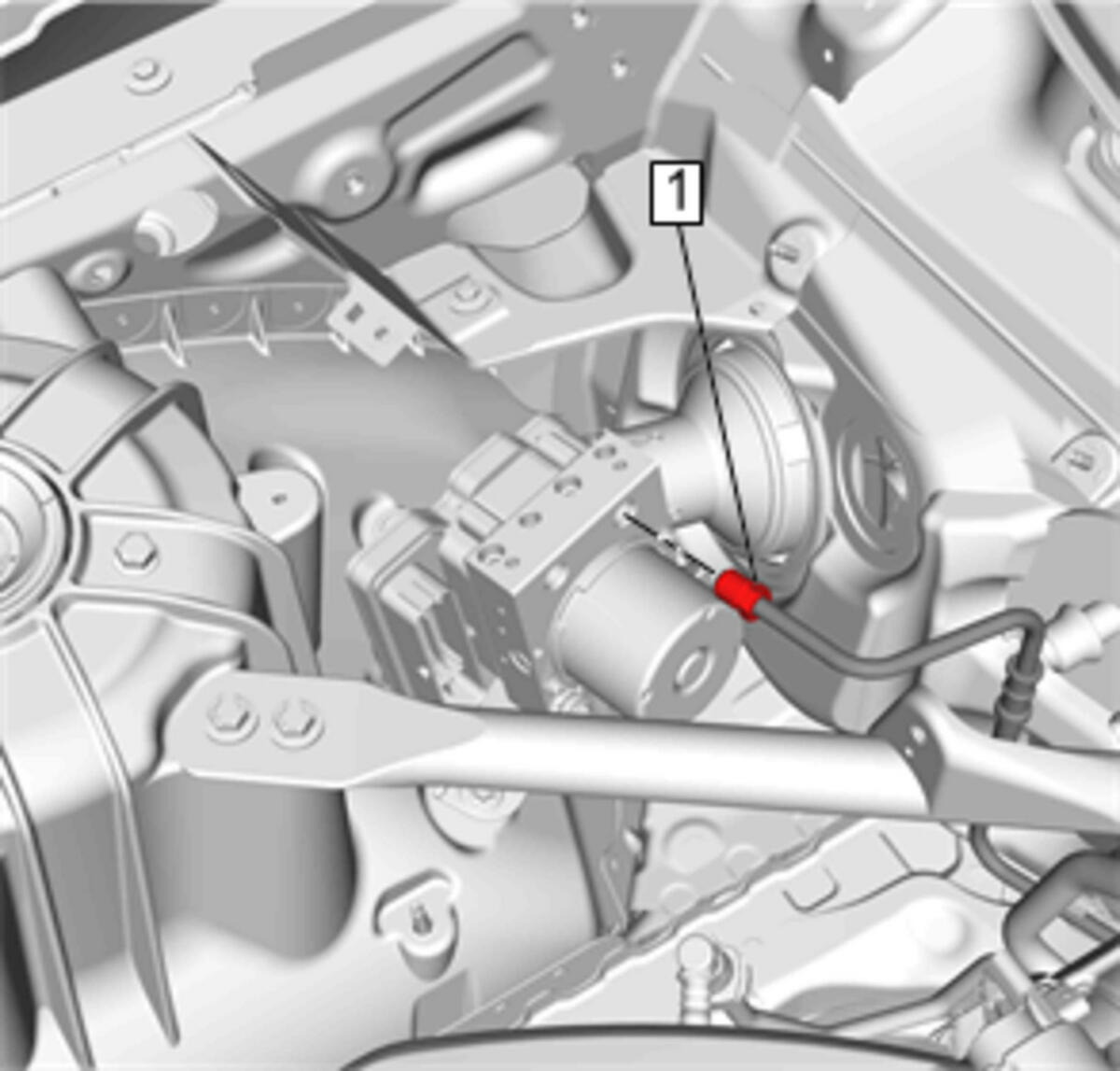

Brake Pressure Modulator Valve Secondary Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

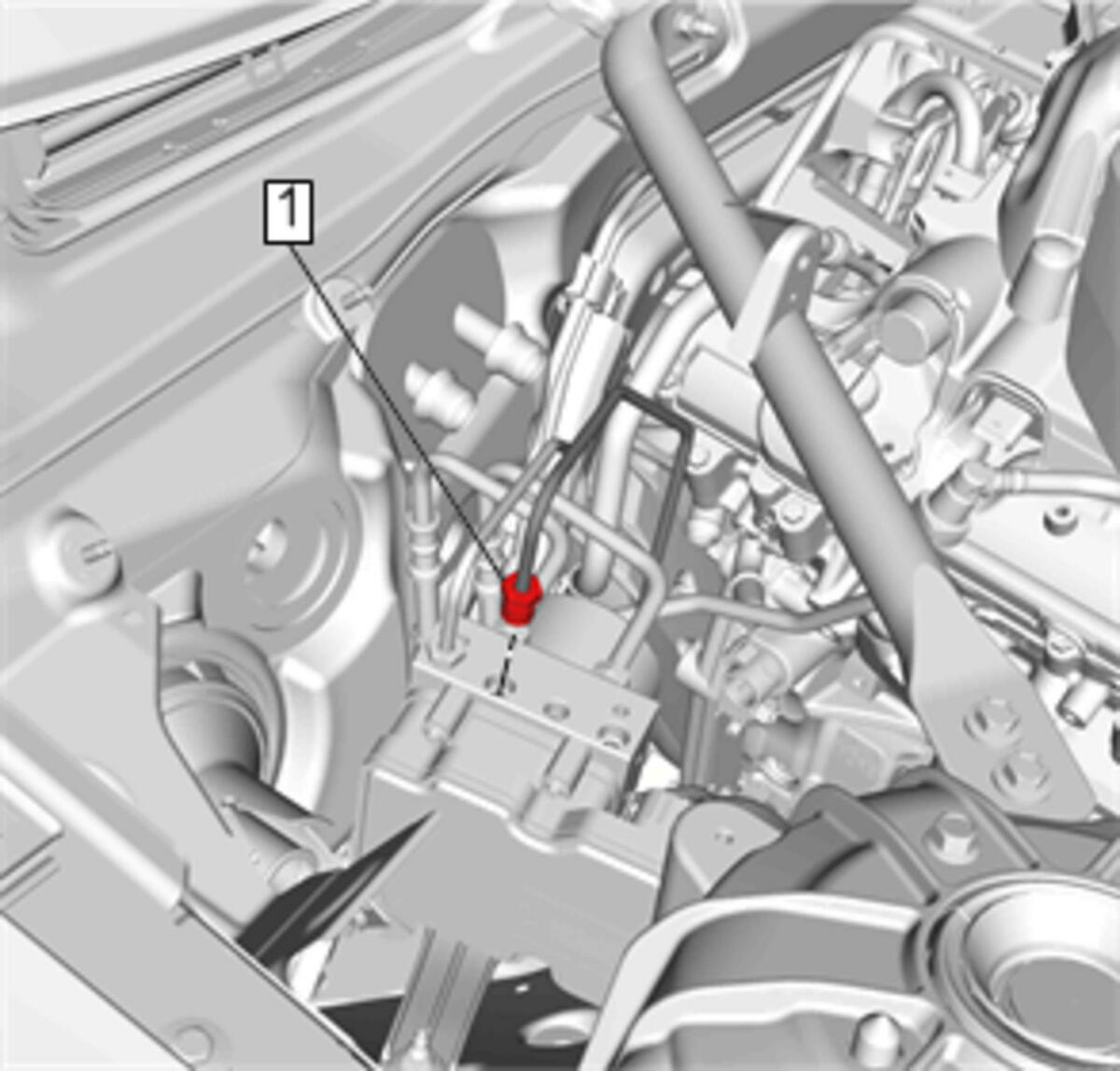

Left Rear Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Courtesy of GENERAL MOTORS COMPANY

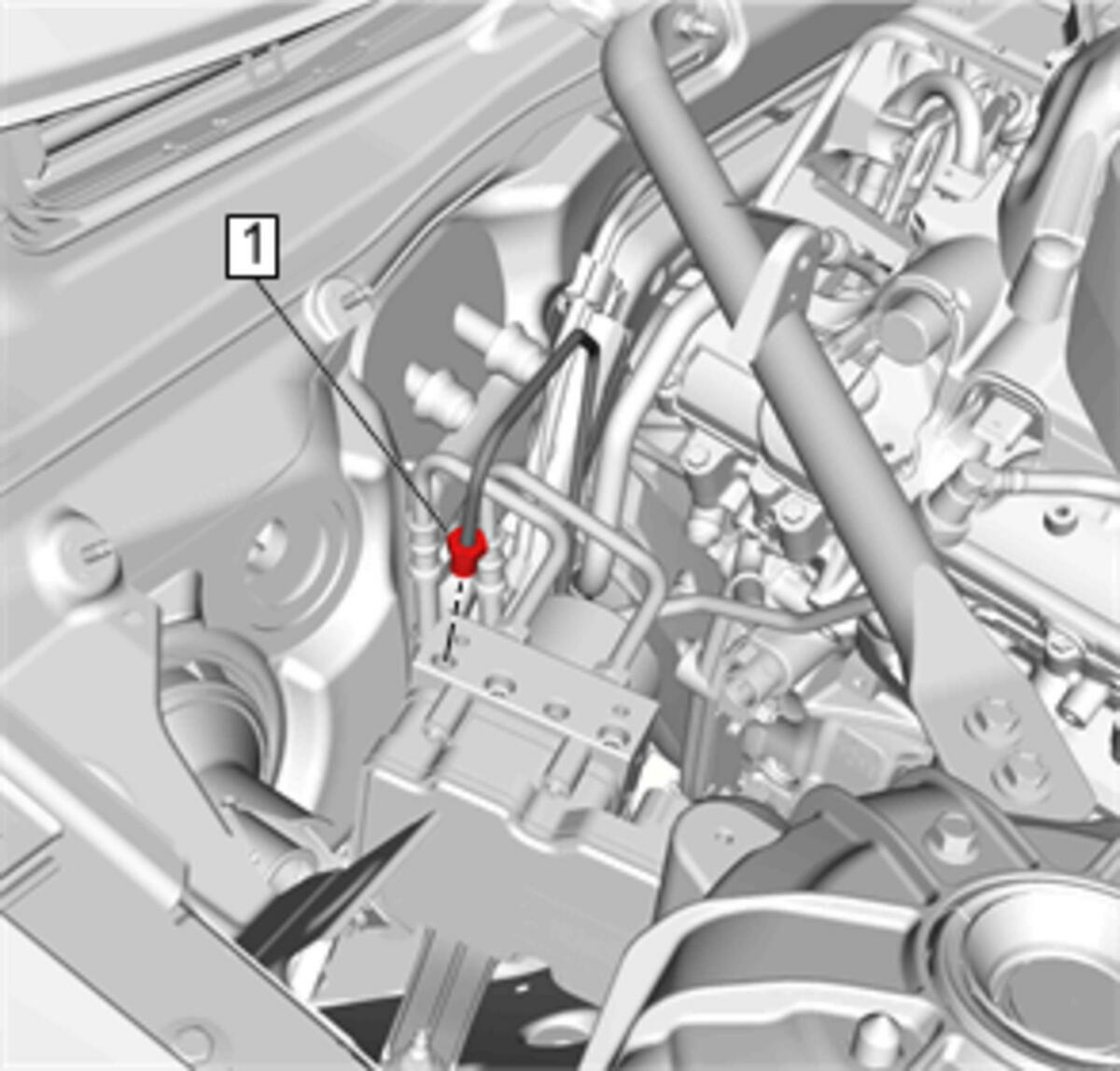

Right Front Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Courtesy of GENERAL MOTORS COMPANY

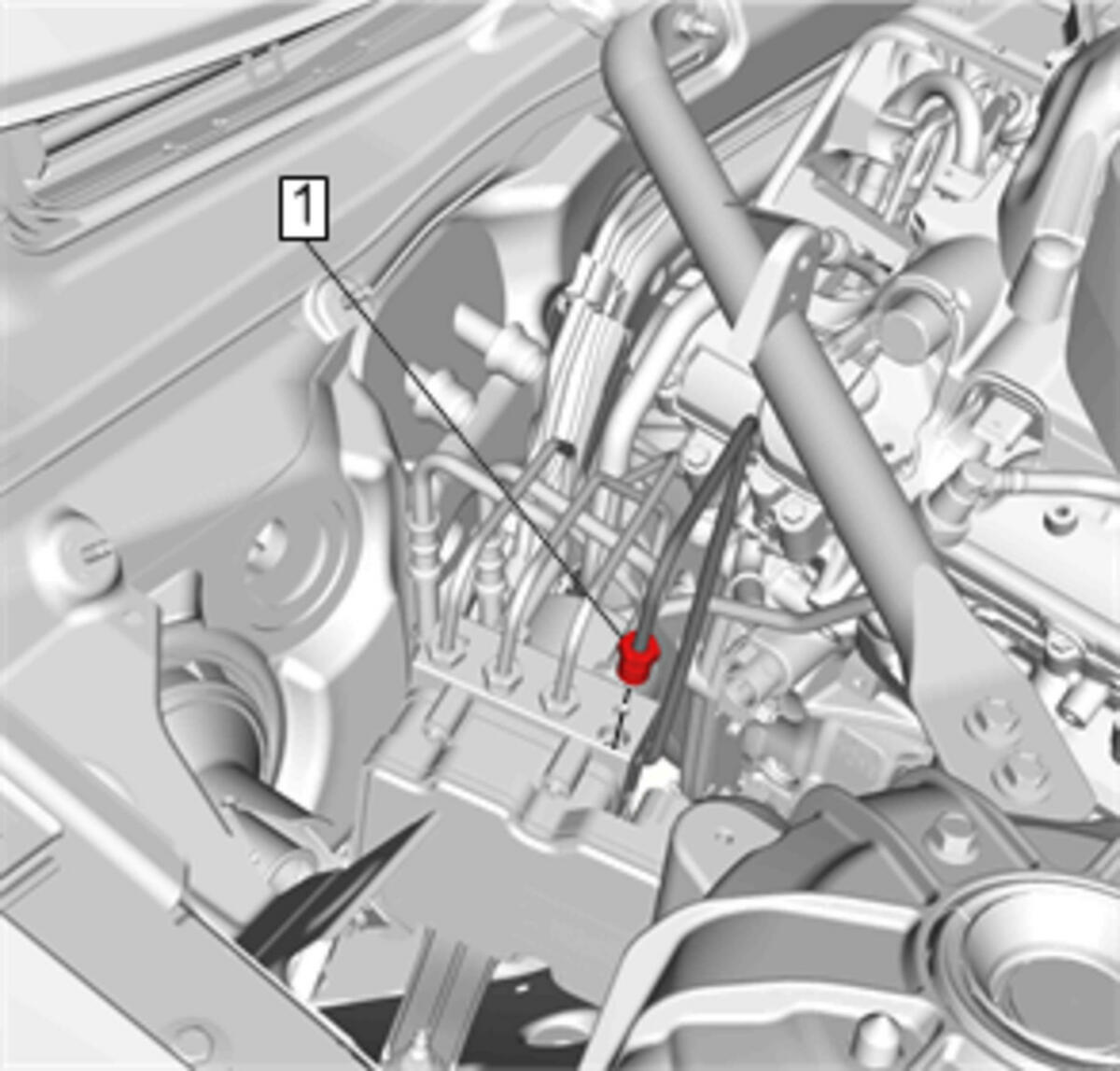

Left Front Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Courtesy of GENERAL MOTORS COMPANY

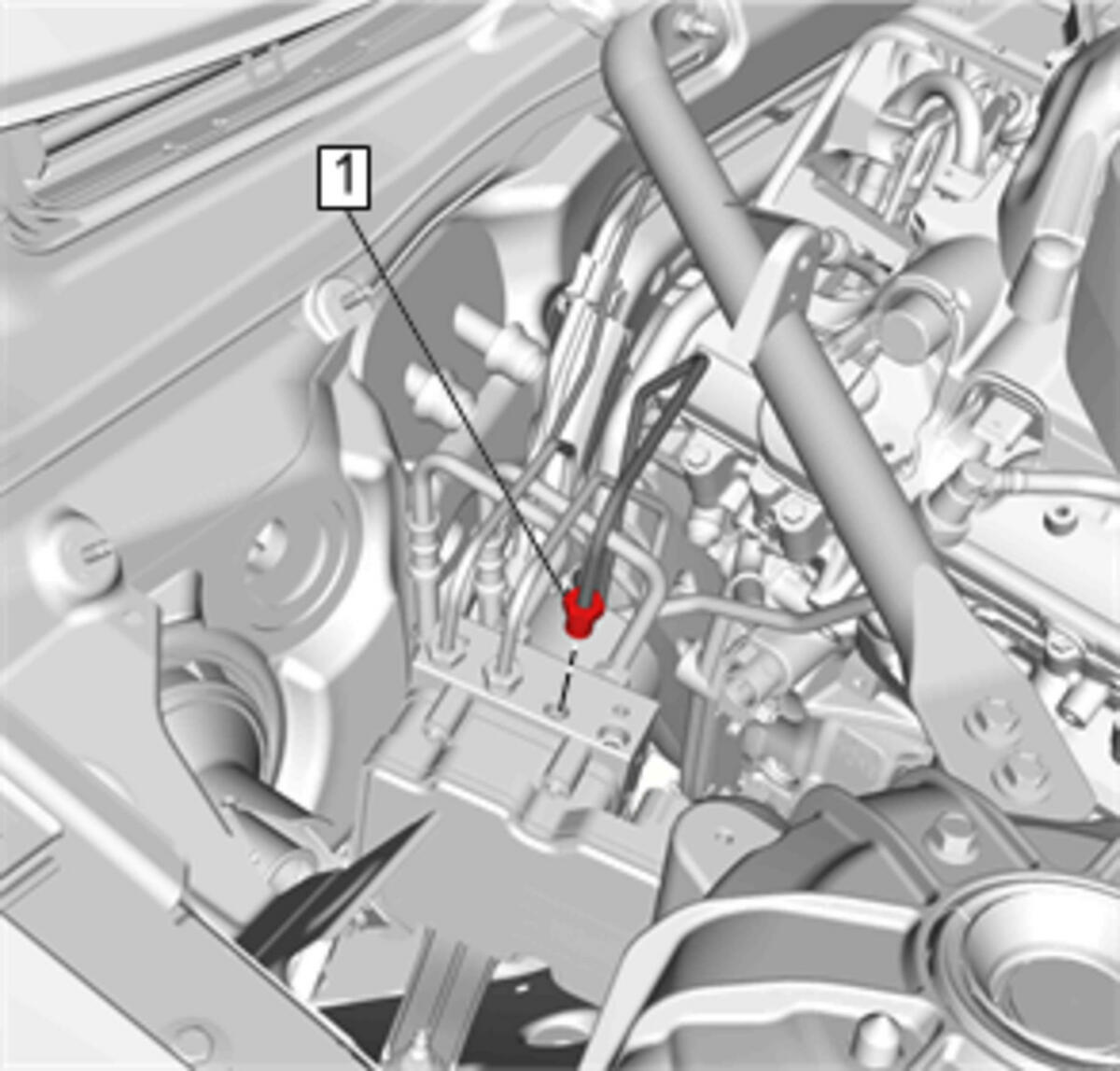

Right Rear Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Connect the EBCM electrical connector.
Bleed the brake system. Antilock Brake System Automated Bleed
Plenum Front Panel - Install - Plenum Front Panel Replacement (LTG LGX) , or Plenum Front Panel Replacement (LT1 LT4)
Program the EBCM. Control Module References
