Installation Procedure

Install the wheel speed sensor to the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

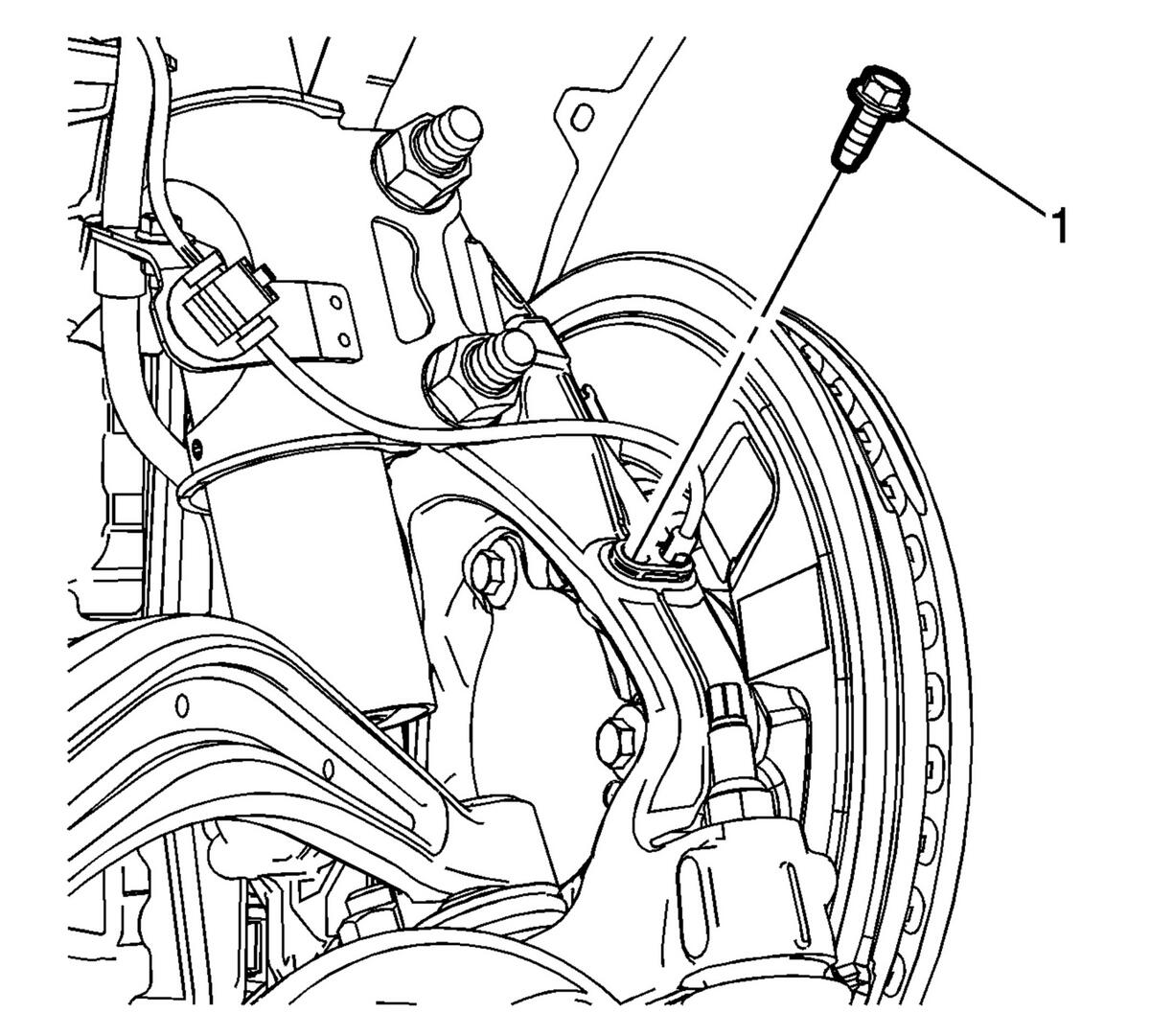

Install the wheel speed sensor bolt (1) and tighten to 10 N.m (89 lb in).
Courtesy of GENERAL MOTORS COMPANY

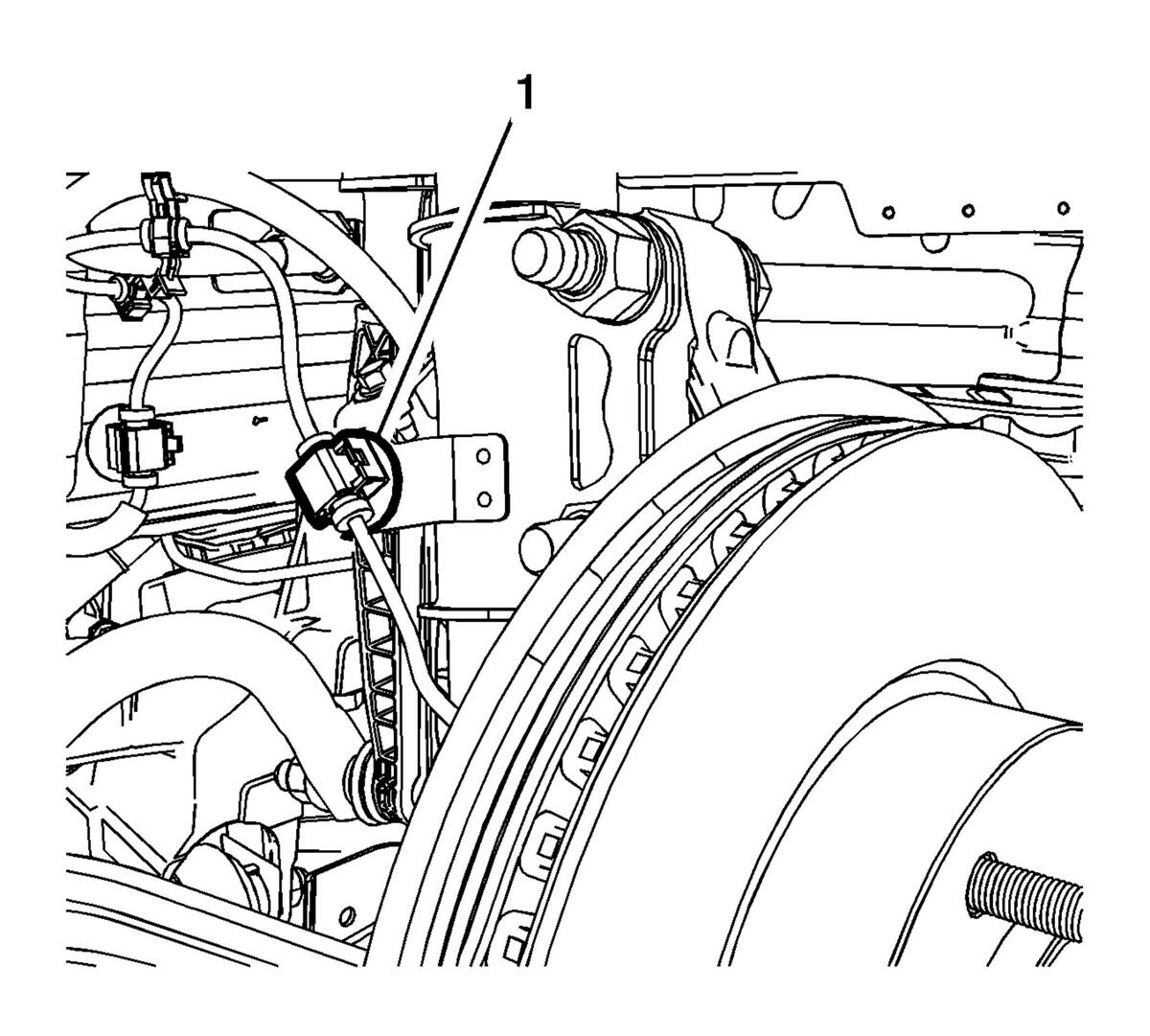

Install the wheel speed sensor harness retainer (1) to the strut bracket.
Courtesy of GENERAL MOTORS COMPANY

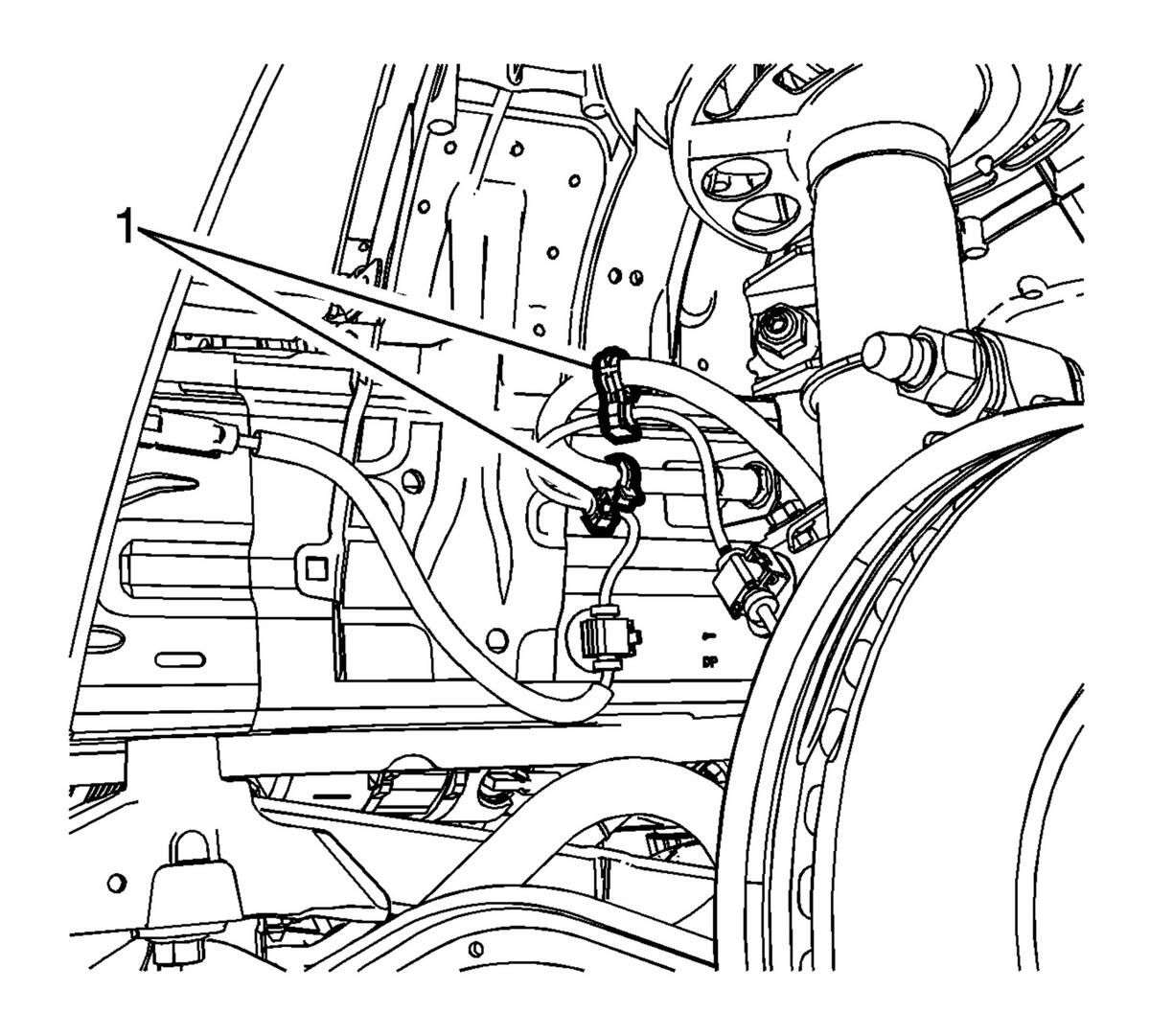

Install the wheel speed sensor harness clips (1) to the front brake hose.
Courtesy of GENERAL MOTORS COMPANY

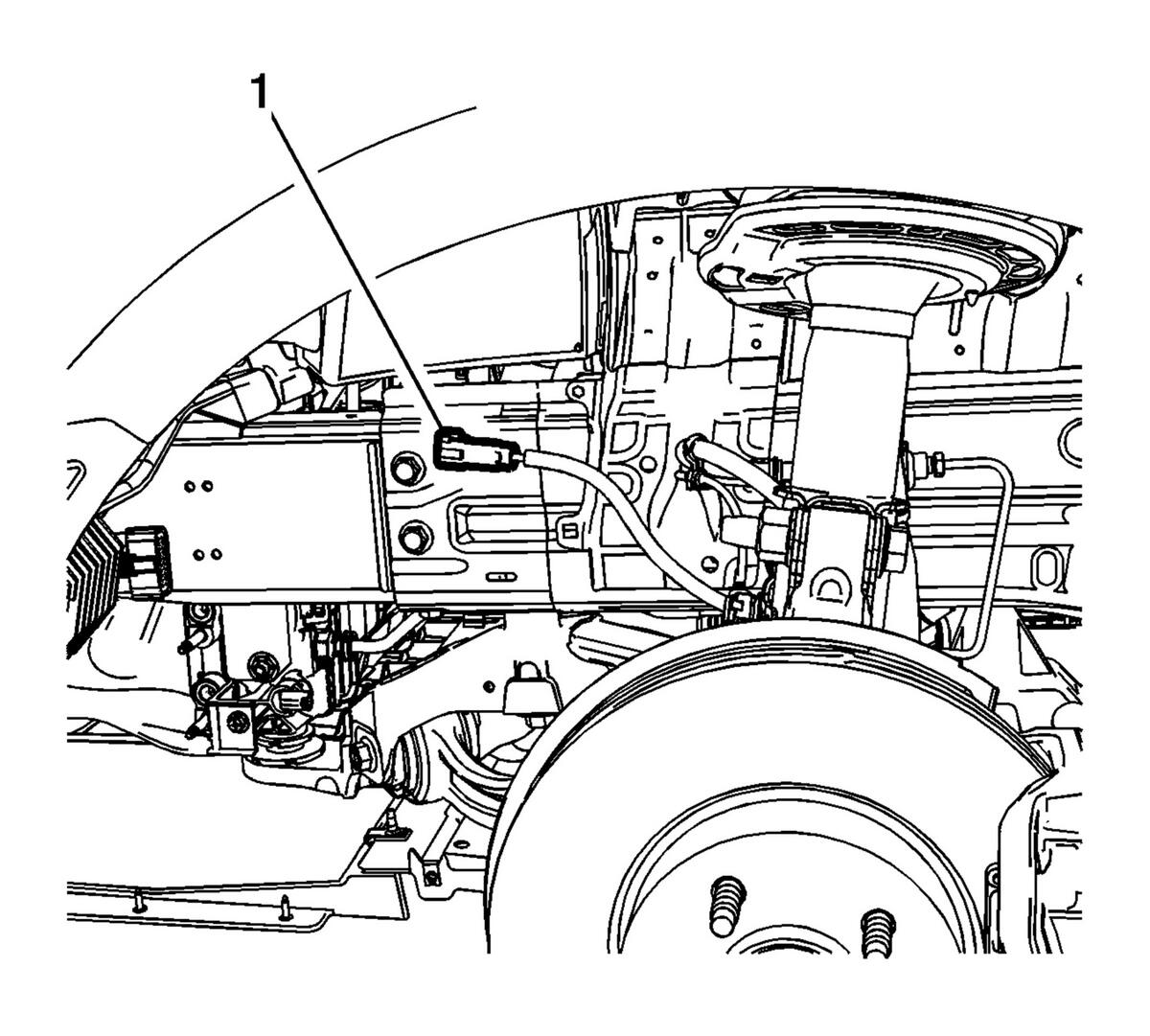

Install the wheel speed sensor harness clip (1) to the vehicle frame.
Courtesy of GENERAL MOTORS COMPANY

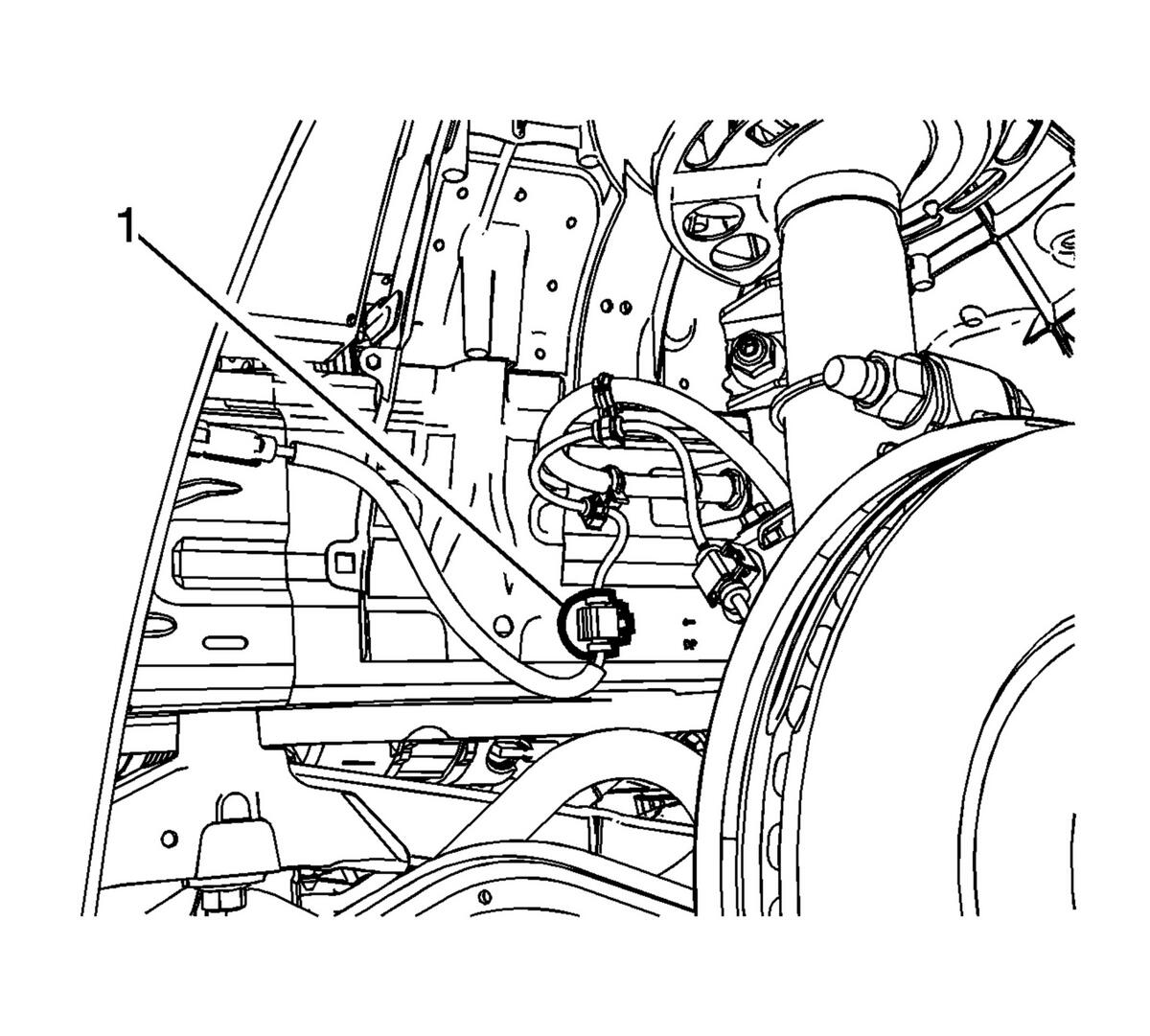

Install the wheel speed sensor connector clip (1) to the vehicle frame.
Connect the wheel speed sensor electrical connector.
Install the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1) .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Perform the Diagnostic System Check - Vehicle .
