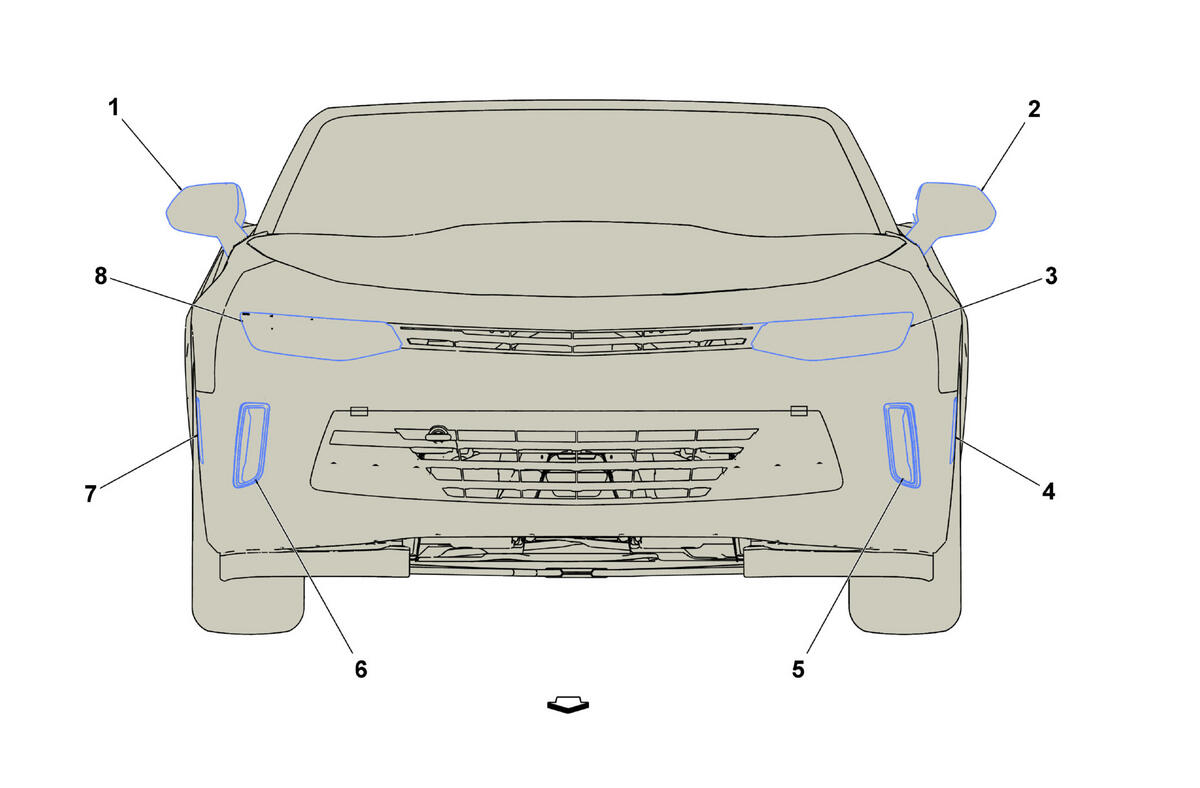

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| A9B Outside Rearview Mirror - Passenger | 1 |
| A9A Outside Rearview Mirror - Driver | 2 |
| E13LA Headlamp Assembly - Left | 3 |
| E2LF Side Marker Lamp - Left Front (-T90) E2LF Side Marker Lamp - Left Front | 4 |
| E4AL Park/Daytime Running Lamp - Left Lower E4AL Park/Daytime Running Lamp - Left Lower (T4F) , or E4AL Park/Daytime Running Lamp - Left Lower (T4L) | 5 |
| E4AM Park/Daytime Running Lamp - Right Lower E4AM Park/Daytime Running Lamp - Right Lower (T4F) , or E4AM Park/Daytime Running Lamp - Right Lower (T4L) | 6 |
| E2RF Side Marker Lamp - Right Front (-T90) E2RF Side Marker Lamp - Right Front | 7 |
| E13RA Headlamp Assembly - Right | 8 |
