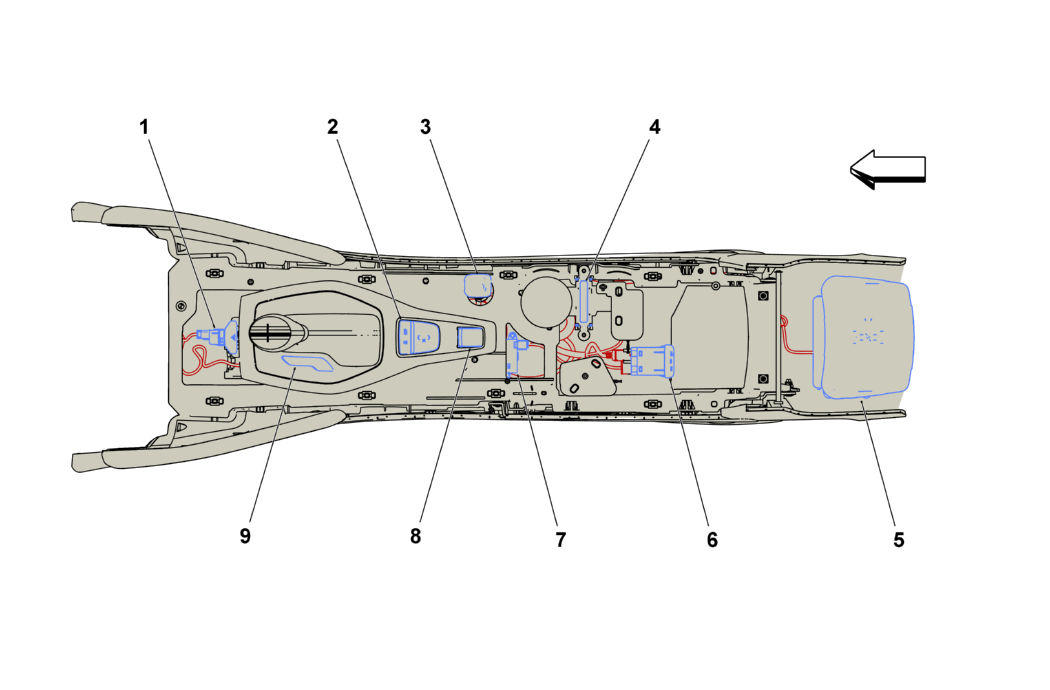

Center Console Components
Center Console Components
| Component Name | Callout |
|---|---|
| S26 Hazard Warning Switch S26 Hazard Warning Switch | 1 |
| S126 Drive Mode Select Switch | 2 |
| X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console | 3 |
| E1AC Accent Lamp - Center Console Cupholder (C70) E1AC Accent Lamp - Center Console Cupholder | 4 |
| T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module (K4C) | 5 |
| X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 , or X83 Auxiliary Audio Input X2 | 6 |
| K89 Immobilizer Control Module K89 Immobilizer Control Module | 7 |
| S91 Park Brake Control Switch S91 Park Brake Control Switch | 8 |
| P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator | 9 |
