HVAC Module Components

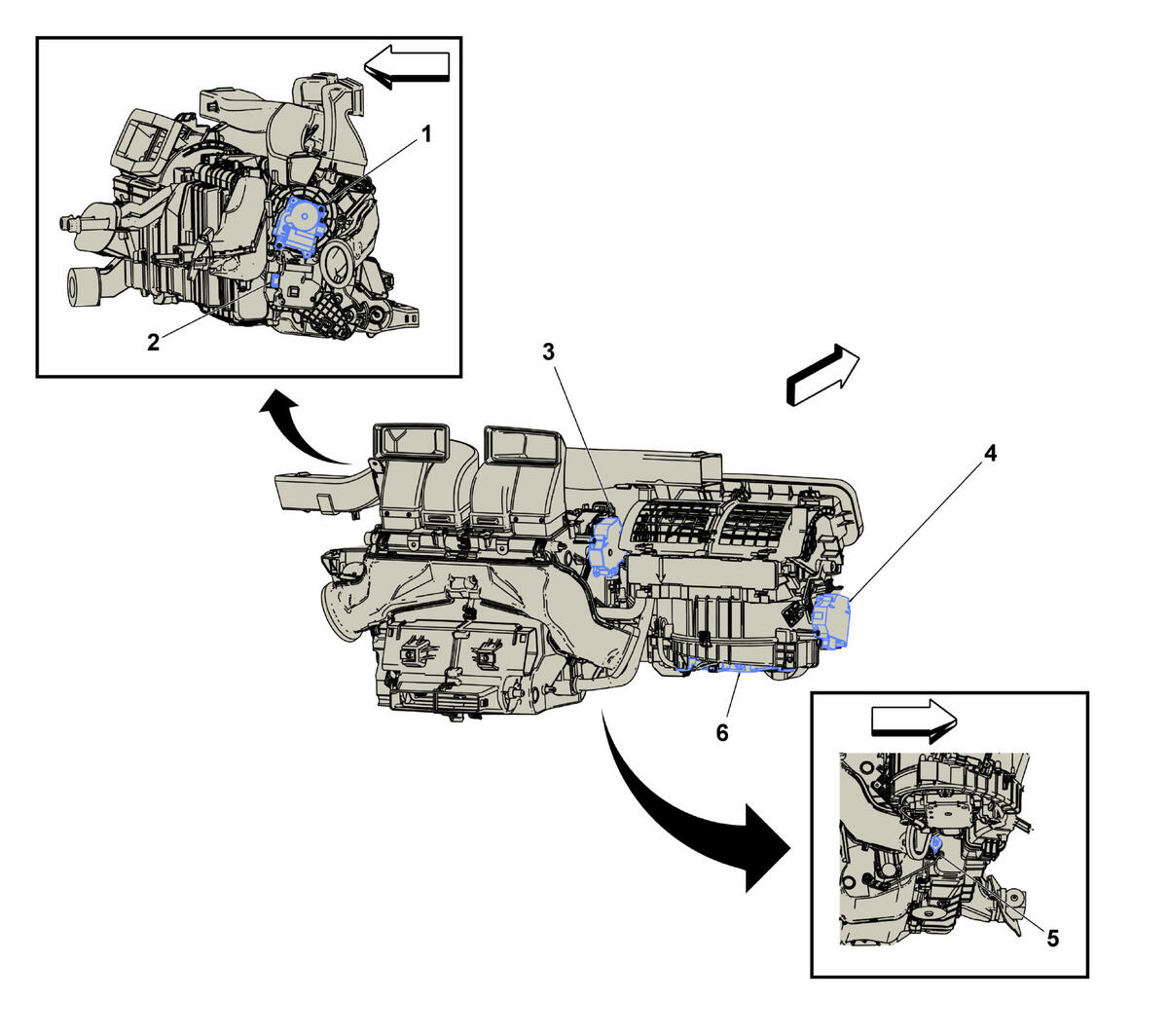

GM4910915Courtesy of GENERAL MOTORS COMPANY
HVAC Module Components

Component Name Callout
M37 Mode Door Actuator M37 Mode Door Actuator 1
M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left 2
M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right 3
M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator (C68) , or M46 Air Recirculation Door Actuator (CJ2) 4
B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor 5
M8 Blower Motor M8 Blower Motor 6
