Instrument Panel Components - Front

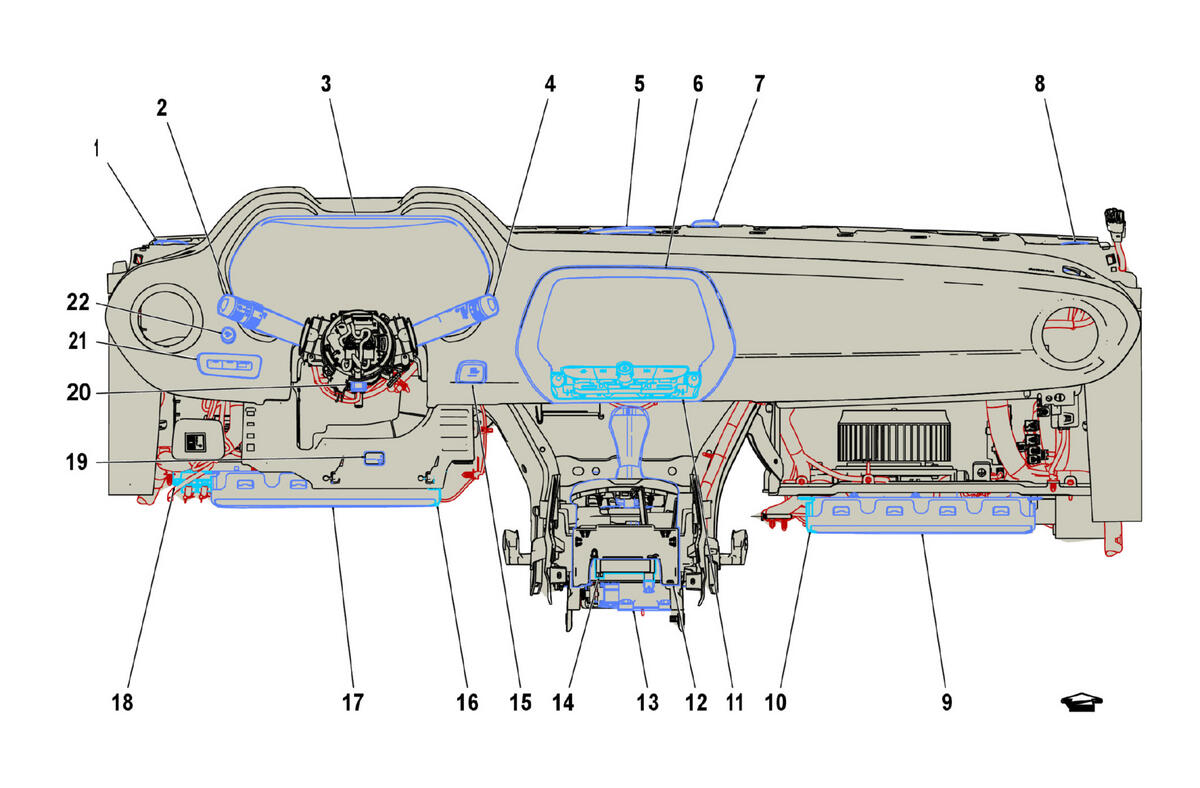

GM4910906Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components - Front

Component Name Callout
P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQ3) , or P19H Speaker - Left Front Tweeter (UQA) 1
S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch 2
P16 Instrument Cluster P16 Instrument Cluster X1 , or P16 Instrument Cluster X2 3
S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch 4
P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel 5
P17 Info Display Module P17 Info Display Module X1 (IOR) , or P17 Info Display Module X1 (IOS/IOT) , or P17 Info Display Module X2 (IOR) , or P17 Info Display Module X2 (-UQT) , or P17 Info Display Module X2 (UQT) , or P17 Info Display Module X4 , or P17 Info Display Module X5 , or P17 Info Display Module X6 , or P17 Info Display Module X7 6
B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor 7
P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter (UQ3) , or P19V Speaker - Right Front Tweeter (UQA) 8
E8K Instrument Panel Courtesy Lamp - Right (C70) E8K Instrument Panel Courtesy Lamp - Right 9
F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger 10
A22 Radio Controls (IOR) A22 Radio Controls 11
S3 Transmission Shift Lever (MX0) S3 Transmission Shift Lever 12
K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 13
T10K Keyless Entry Antenna - Center Console Rear 14
S38 Ignition Mode Switch S38 Ignition Mode Switch 15
F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver 16
E8J Instrument Panel Courtesy Lamp - Left (C70) E8J Instrument Panel Courtesy Lamp - Left 17
K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 18
K60 Steering Column Lock Module (N06) K60 Steering Column Lock Module 19
B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor 20
S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch 21
S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch 22
