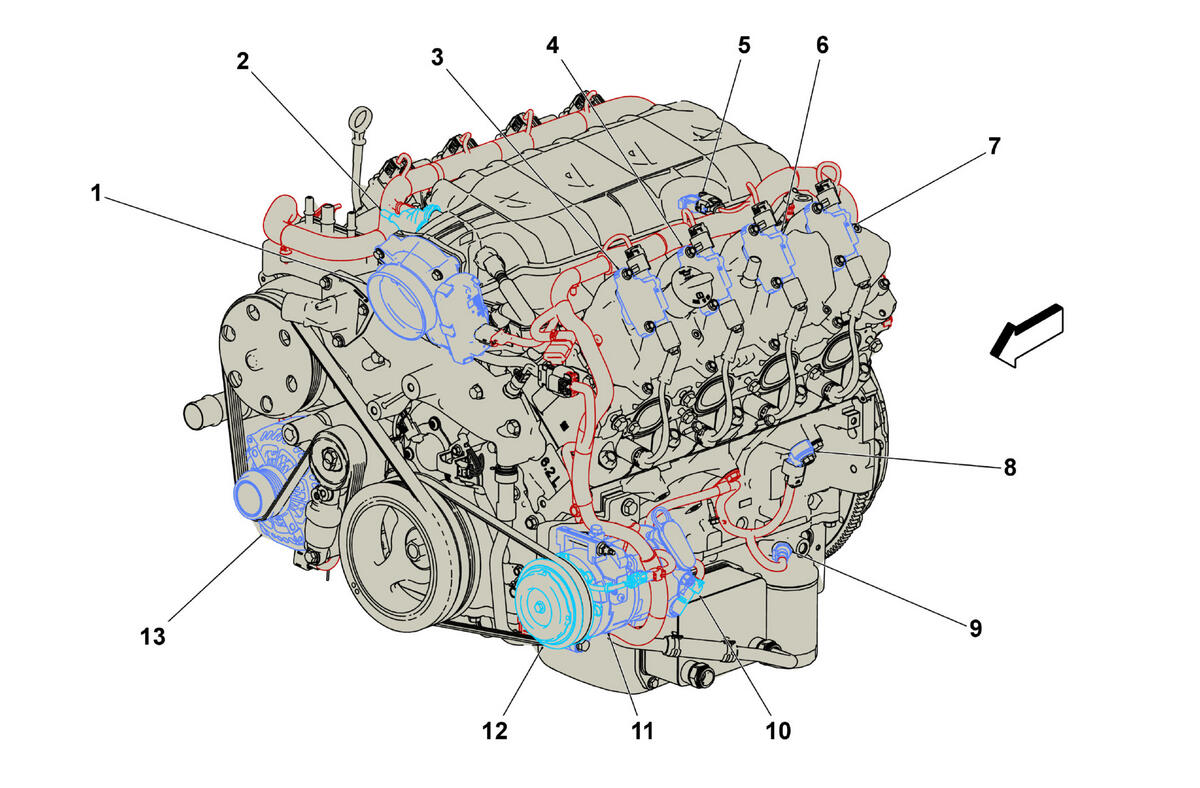

Engine Components - Left Front (LT1/LT4)
Engine Components - Left Front (LT1/LT4)
| Component Name | Callout |
|---|---|
| Q38 Throttle Body Q38 Throttle Body | 1 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 2 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 (LT1/LT4) | 3 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (LT1/LT4) | 4 |
| B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LT1) | 5 |
| T8E Ignition Coil 5 (LGX/LT1/LT4) T8E Ignition Coil 5 (LT1/LT4) | 6 |
| T8G Ignition Coil 7 (LT1/LT4) T8G Ignition Coil 7 (LT1/LT4) | 7 |
| B68A Knock Sensor 1 B68A Knock Sensor 1 | 8 |
| B36 Engine Oil Temperature Sensor (LT1/LT4) B36 Engine Oil Temperature Sensor | 9 |
| Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve | 10 |
| G1 A/C Compressor | 11 |
| Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch | 12 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 (LT1) , or G13 Generator X2 (LT4) | 13 |
